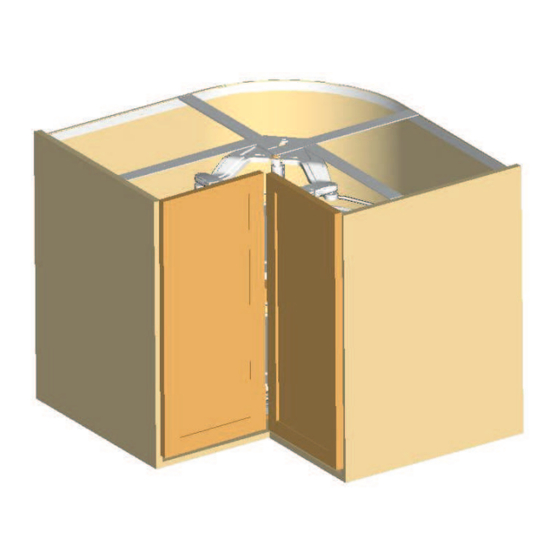

- Page 3 Revo 90° Name Montageanleitung Eckschrankdrehbeschlag REVO 90° Mounting Instructions Corner Carousel Fitting Notice de montage Meubles bas d´angle KESSEBÖHMER MA 401780 0000 Rev.: 004-2017-04-19 *4017800000*...

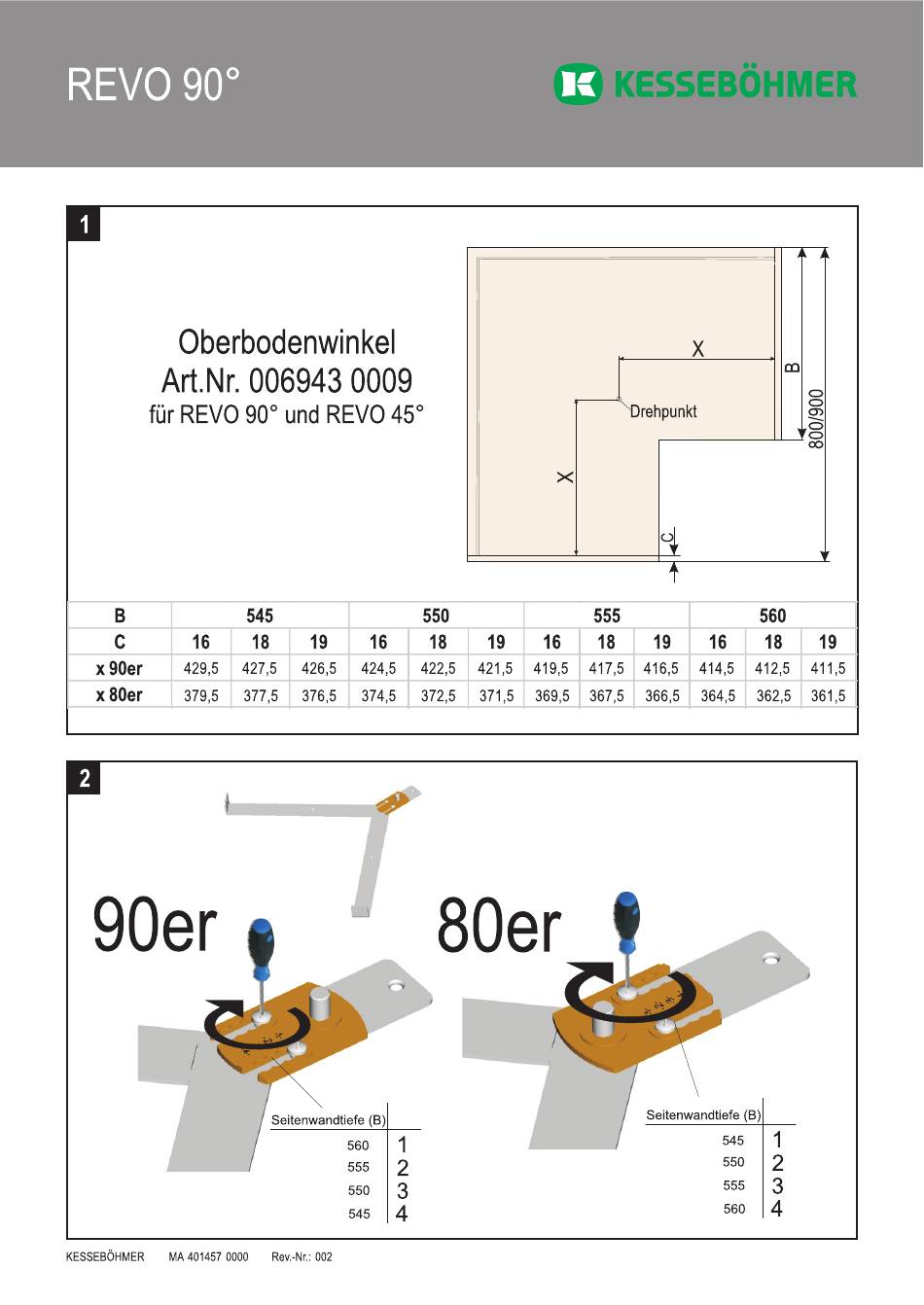

- Page 4 Revo 90° Name Li = D-2-F Re = D-4-F-Z Ø10 (>10 tief) deep 90,5 Li = D-4-F-Z Re = D-4-F-Z B (545-560) =A - B - C + 90,5 Li = D-4-F Re = D-4-F Ø10 (>10 tief) deep Li = D-2-Fa-F-W 140,5 Re = D-2-Fa-F-W B (545-560)
- Page 5 Revo 90° Name KESSEBÖHMER MA 401780 0000 Rev.: 004-2017-04-19...
- Page 6 Revo 90° Name min.90° KESSEBÖHMER MA 401780 0000 Rev.: 004-2017-04-19...
- Page 7 Revo 90° Name K = > 2 mm L = > 9 mm KESSEBÖHMER MA 401780 0000 Rev.: 004-2017-04-19...
- Page 8 Revo 90° Name Euro-Schraube Euro-Schraube verwenden verwenden use euro srew use euro srew P= -255+Türaufschlag R= -305+Türaufschlag door overlap door overlap X=45-L X=45-L L= > 9 mm L= > 9 mm Y=25-K Y=25-K K= > 2 mm K= > 2 mm Montage des Frontgriffes vorzugsweise links! Assembly the front handle preferably...
- Page 9 Revo 90° Name Justieranleitung Eckschrankdrehbeschlag REVO 90° Adjustment instruction Corner Carousel Fitting Instruction d`ajustage Meubles bas d´angle -sofern vorhanden- -as far as available- -lorsqu`elle existe- mittleren Sockelfuß zwingend einstellen Adjust middle-foot obligatory ajustez piédestal indispensable Demontage Disassembly Démontage Schließgeschwindigkeit closing speed vitesse à...
- Page 10 Mounting instruction for the ARENA ¾ circle shelf on the REVO 90° fitting MA 400714...
