Primex PSLT Installation Instructions Manual

PRIMEX SUBMERSIBLE LEVEL TRANSMITTER
®
INSTALLATION INSTRUCTIONS
ELECTRICAL SHOCK HAZARD
Disconnect power before installing or servicing this
product. A qualified service person must install and
service this product according to applicable electrical
and plumbing codes.
Failure to follow these precautions could result in serious injury or death. Replace product immediately if cable becomes damaged
or severed. This product must be installed in accordance with National Electric Code, ANSI/NFPA 70 so as to prevent moisture from
entering or accumulating within boxes, conduit bodies, fittings, or cable. Keep these instructions after installation.
IMPORTANT INFORMATION
• Applications: sewage and effluent lift stations, stormwater pump stations, non-potable water systems,
tanks, wet wells, and reservoirs.
• Primex recommends the use of a desiccant filter or bellows to protect against moisture entering the
®
vent tube.
• Do not bend cable to a radius smaller than 1.5 inches (38mm) to avoid kinking the vent tube.
• When installing, lower the transmitter slowly and avoid impact with objects in the wet well.
• Do not press against the transmitter diaphragm with a sharp object.

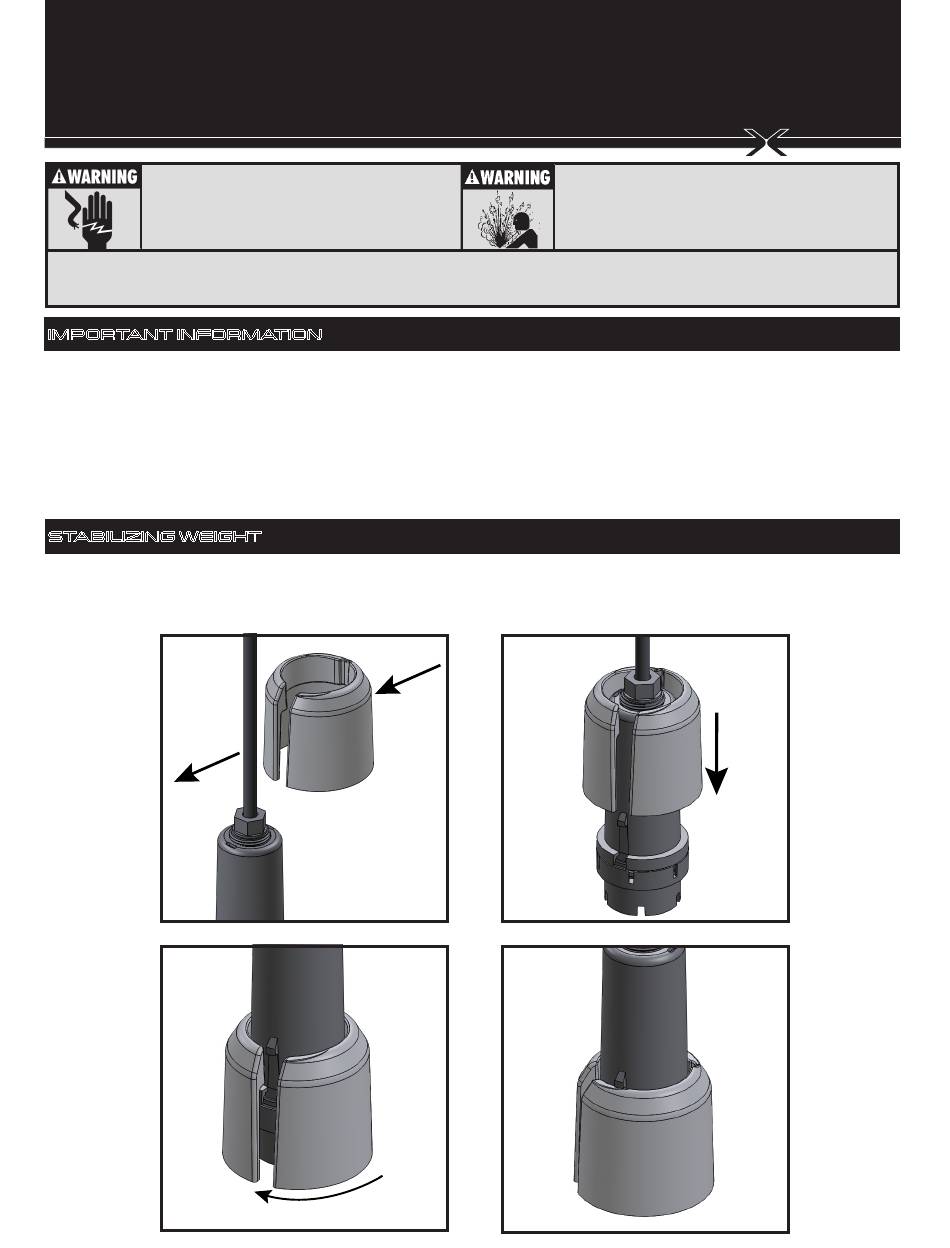

STABILIZING WEIGHT
Each PSLT is provided with a removable stabilizing weight. The stabilizing weight must be attached to the
transmitter housing prior to installation. Hand tightening is adequate.
Step 1
Step 3
(PSL T)
30° - 40°
EXPLOSION OR FIRE HAZARD
Do not use this product with flammable liquids.
Do not install in hazardous locations as defined by
National Electrical Code, ANSI/NFPA 70.
Step 2
Step 4
1
