Summary of Contents for Moxa Technologies MGate 5134 Series

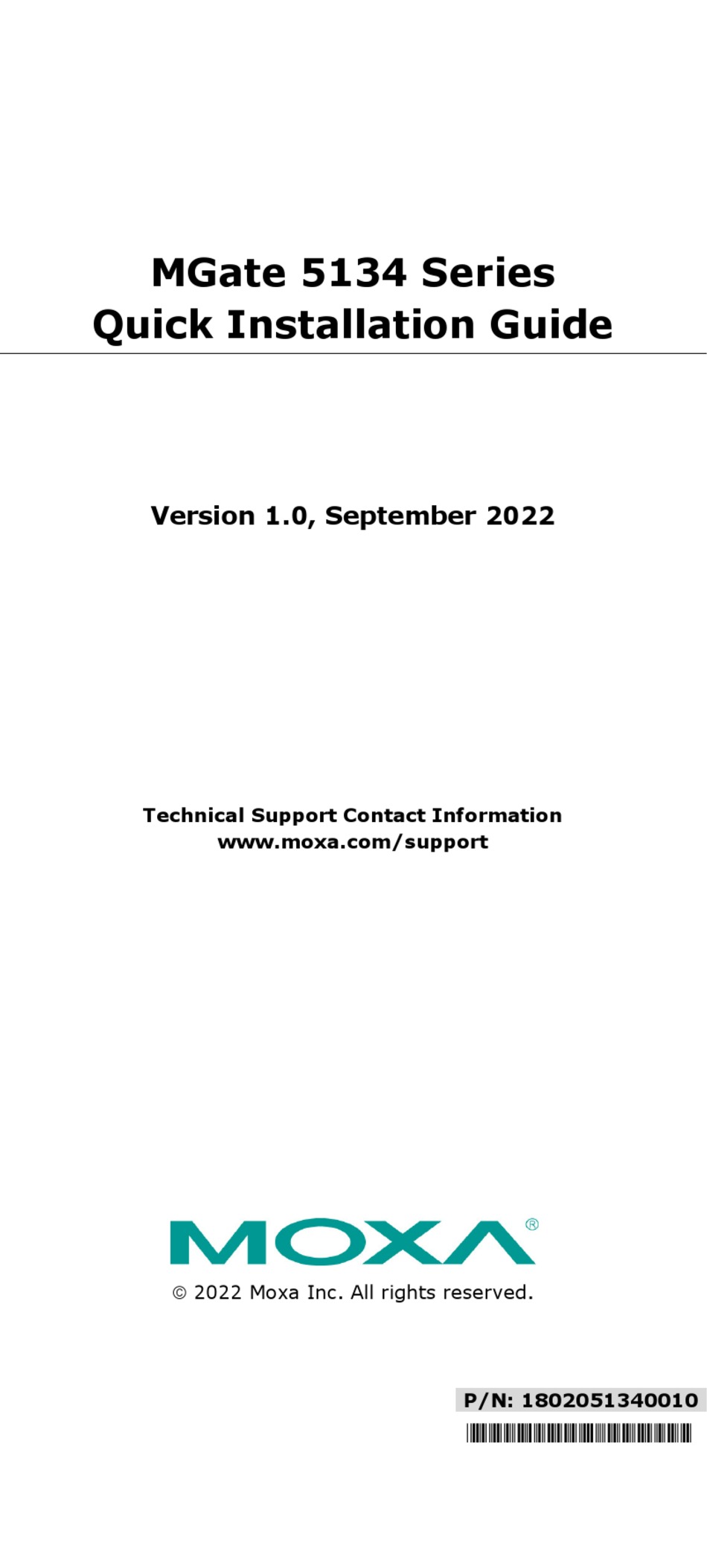

- Page 1 MGate 5134 Series Quick Installation Guide Version 1.0, September 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802051340010 *1802051340010*...

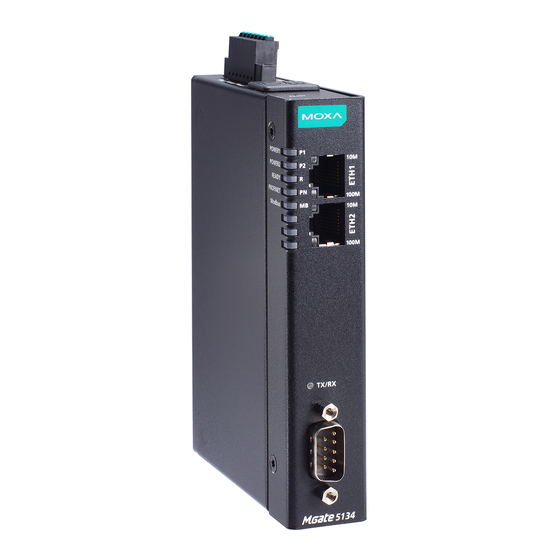

- Page 2 Overview The MGate 5134 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and PROFINET network communications. Package Checklist Before installing the MGate 5134, verify that the package contains the following items: • 1 MGate 5134 gateway • Quick installation guide (printed) •...
- Page 3 Color Description 3. Timeout (the slave device does not respond). 4. TCP connection failed (only for Modbus TCP). Steady ON: Ethernet link on at 100Mbps. Green Blinking: Data transmitting at 100Mbps. ETH 1, ETH 2 Steady ON: Ethernet link on at 10Mbps. Amber Blinking: Data transmitting at 10Mbps.
- Page 4 The following figure illustrates the two mounting options: Wall- or Cabinet-mounting We provide two metal plates to mount the unit on a wall or inside a cabinet. Attach the plates to the unit’s rear panel with screws. With the plates attached, use screws to mount the unit on the wall.
- Page 5 Ethernet Port (RJ45) Signal Power Input and Relay Output Pinouts Power Power N.O. Common N.C. Power Power Input 2 Input 2 Input 1 Input 1 Specifications Power Parameters Power Input 12 to 48 VDC Power Consumption 455 mA max. Relays Contact Current Rating Resistive load: 2 A @ 30 VDC Environmental Limits...
- Page 6 ATTENTION • This device is an open-type equipment and intended to be installed in a suitable enclosure. • If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. •...
