Global Laser BlueLyte LC User Manual

BlueLyte LC Userguide

1. Product Overview

Thank you for purchasing the BlueLyte LC laser. This laser emits a Blue / Violet spot/
projection.
If you have any queries or require help when using the BlueLyte LC range please call us on
+44(0)1495 212213 or contact your local representative.
Stable output power is offered over a wide temperature range with the additional benefit of a LC
(Linear Control) control circuit. The LC control circuit allows you to control the output intensity
linearly by applying a voltage of between 0 & 1 volt, to the control input. This same control
circuit also provides analogue modulation with modulation speeds in excess of 500kHz The
output intensity will faithfully replicate any arbitrary signal you wish to apply with a 0-1 Volt
amplitude and within the limits of the laser module's maximum rise and fall time.
Further flexibility is provided by a choice of collimating lens providing circular or elliptical beams.
The user adjustable collimating lens allows simple adjustment to provide a collimated beam or
a focused spot at a required distance. A wide range of line generators and projection patterns
are also available.

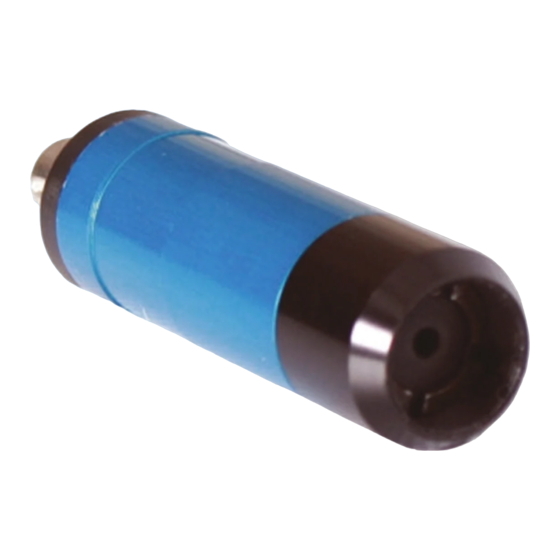

A wide range of output powers is available which combined
with the compact 15mm diameter housing with a robust
industrial connector and choice of optional mounting
clamps provides a complete blue laser
solution.
