Lyte-MV 2
24V Digital Userguide
Product Overview
Thank you for purchasing the Lyte-MV 2 laser diode module. This module emits a spot, line or pattern
in the visible or infrared wavelength range.
If you have any queries or require help when using the Lyte-MV 2 range please call us on +44(0)1495
212213 or contact your local representative.

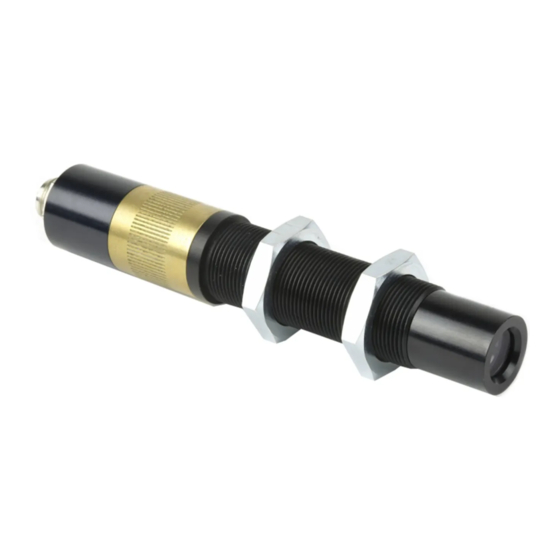

The Lyte-MV 2 provides a reliable industrial light source for a wide range of machine vision applications
including triangulation, 3D inspection and alignment. It features IP67 protection, a threaded barrel and
the ability to operate from industrial voltage sources such as 24Vdc while still providing market leading
modulation features.
Available with powers up to 120mW in Red and Blue and 200mW in IR. An array of optical options includ-
ing circular and elliptical spots, uniform lines and diffractive patterns. The Lyte-MV 2 also has a user ad-
justable focus control, to allow the user to optimize the focus via an external control ring. The threaded
barrel allows the user to mount the laser to bulkheads and mounting blocks while ensuring heat sink-
ing. This M18 threaded barrel makes it compatible with the majority of existing machine vision systems.
The modulation options allow the user to synchronize the output or control the power output via TTL.
A comprehensive range of accessories including mounting clamps,
rail systems, mains power supplies and laser safety and enhance-
ment glasses are also available to complement the Lyte-MV
2.
Advertisement
Table of Contents
Related Manuals for Global Laser Lyte-MV 2
Summary of Contents for Global Laser Lyte-MV 2
- Page 1 Thank you for purchasing the Lyte-MV 2 laser diode module. This module emits a spot, line or pattern in the visible or infrared wavelength range. If you have any queries or require help when using the Lyte-MV 2 range please call us on +44(0)1495 212213 or contact your local representative.
-
Page 2: Product Operation
Applying 0V will switch the laser off whilst applying V supply leaves the laser on. D. Operating with a 10V PS-1 If you have purchased a Lyte-MV 2 with a 100V/240V to 10V PS-1 you will have the following items: Lyte-MV 2 Laser Lyte-MV 2 to PS-1 Cable... - Page 3 (approx.) for every ten degree increase in operating temperature. To assist with this requirement the Lyte-MV 2 has a threaded front barrel (M18x1) which can fit to a bulkhead or threaded hole. The direct contact of the barrel to the mount helps to ensure heat sinking and improve laser diode lifetime.
-
Page 4: Cleaning The Optics
Please Note: Liquids are defined as water. Oil or chemicals may require further protection. It is recommended that when the Lyte-MV 2 is not in use the supplied protective cap is placed over the optics to reduce the risk of the being contaminate by dirt. -
Page 5: Safety & Classification
Class 3R Laser Label Warranty & Repair If your product develops a fault within 12 months from the date of purchase Global Laser will repair / replace the product. If you wish to return a faulty product contact your local representative or Global... -
Page 6: Mechanical Dimensions
Mechanical Dimensions A) Lyte-MV 2 114.50 115.00 9.70 51.80 Overthread Laser Focusing Ring Laser Locking Nuts B) Heavy Duty Mounting Clamp SIDE VIEW 57.00 TOP VIEW 41.00 Ø30.00 Ø 19mm (1230-01-000) Grub Screw A (M5) BOTTOM 2 Holes Drill 3.2Ø &... - Page 7 C) Magnetic Base FRONT VIEW M6 Stud TOP VIEW M6 Stud Ø35.00 Ø35.00 Drawings not to scale...
- Page 8 Notes For further information about any of our products please contact your local distributor or you can contact Global Laser in the UK. Your Local Distributor Is: Please Note: Global Laser reserve the right to change descriptions and specifications without notice.
