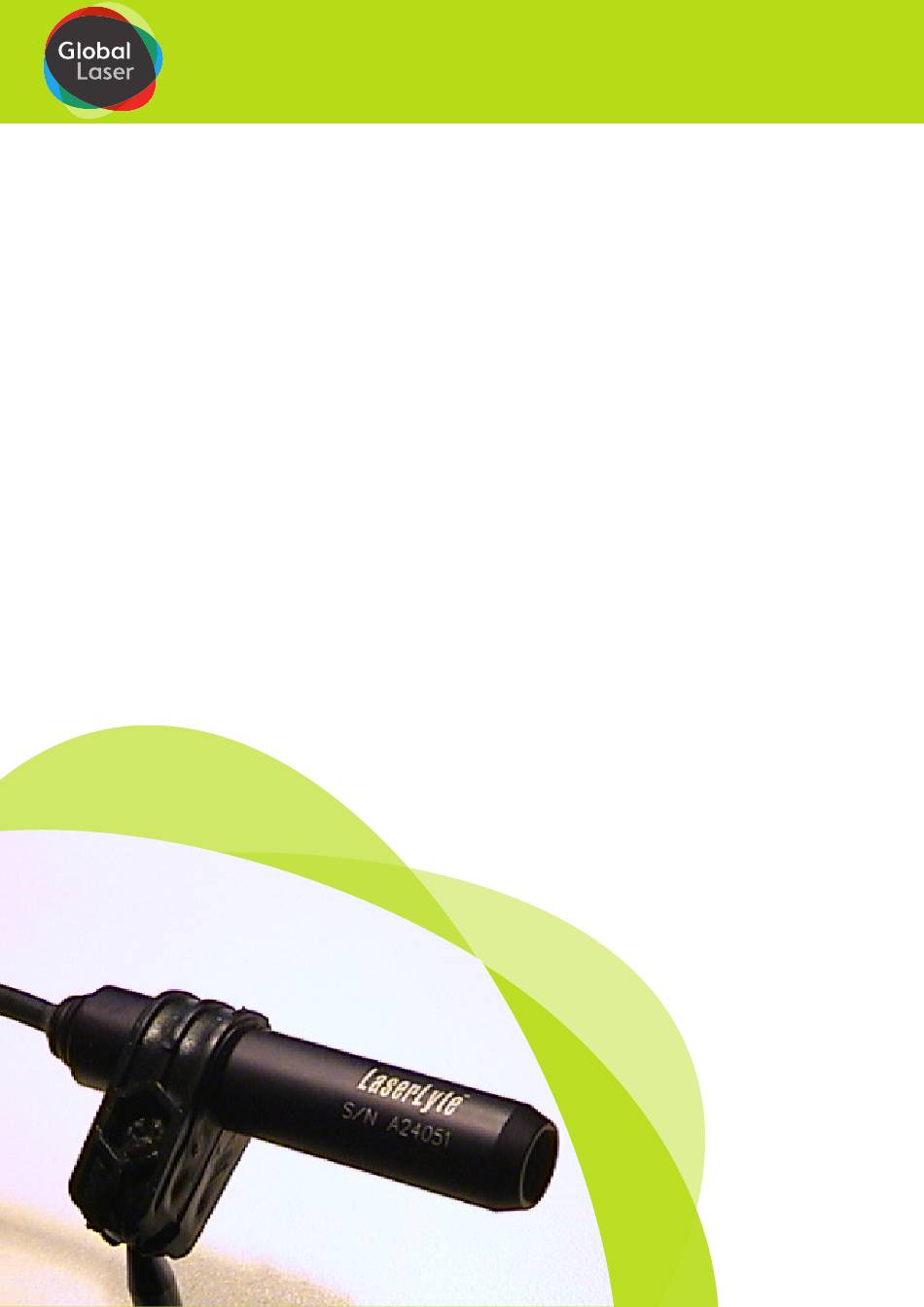

LaserLyte L Series Userguide
1. Product Overview
Thank you for purchasing the LaserLyte L Series. This emits a visible spot/projection.
If you have any problems or require help when using the LaserLyte L Series please call us on
+44 (0)1495 212213 or contact your local representative.
The LaserLyte L Series has been available for 10 years and is the brand leader in the Apparel
Industry. It is widely used in many other manufacturing industries including the Automotive,
Welding (including High and Radio Frequency), Woodworking and Screen Printing.
Manufacturing efficiency is increased, and wastage eliminated.
A wide range of wavelengths and intensities are available in order to maximise the visual
appearance of the projection even against the darkest materials. The L Series has four power
ranges from L5 (650nm, 5mW) to L15 (635nm, 15mW). This is combined with five projections
ranging from dot to crossed lines.
A range of mounting brackets, electrical leads and power supplies allow the system to provide
a complete solution, ready to use with no previous laser experience required.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LaserLyte L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Global Laser LaserLyte L Series

  • Page 1 1. Product Overview Thank you for purchasing the LaserLyte L Series. This emits a visible spot/projection. If you have any problems or require help when using the LaserLyte L Series please call us on +44 (0)1495 212213 or contact your local representative.
  • Page 2: Production Operation

    2. Production Operation Operating with a PS1 or PS4 If you have purchased a LaserLyte L Series with a 100V/240V to 3.5Volt PS1 or PS4 you will have the following items: LaserLyte L Series Laser Module Power Supply Adaptor 100V/240V to 3. 5Volt PS1 or PS4 Main socket to PS1/PS4 power lead (UK, Euro or US) Optional Extension Lead (3 &...
  • Page 3 (approx) for every ten degree increase in operating temperature. There are two mounting clamps available as stranded from Global Laser for the LaserLyte L Series. Global laser’s MK1 mounting kit provides a cost effect mounting solution; the laser clamp rotates horizontally through 360°...
  • Page 4 5. To secure the Heavy duty clamp to a surface machine screw or studs can be used in conjunc- tion with the base section (see drawing E for thread details). 5b Mounting the LaserLyte L Series in the Heavy Duty Clamp with the Magnetic Base 1. Un-tighten allen screw A (see drawing E) with the supplied allen key.
  • Page 5 5C Mounting the LaserLyte L Series in the MK1 Mounting Kit 1. Fix the mounting clamp to the mounting surface or bracket using the supplied machine screw A (Both an M5*25 & and M5*35 machine screw and two M5 hex nut & washers are supplied).
  • Page 6: Warranty And Repair

    5 Meter Line 7. Warranty & Repair If your product develops a fault within 12 months from the date of purchase Global Laser will repair / replace the product. If you wish to return a faulty product contact your local representative...
  • Page 7 The LaserLyte alignment system has many applications, some of which are shown below along with the recommended product. If you would like to know further information about any other applications please either contact Global Laser or your local distributor. Pattern Alignment...
  • Page 8: Safety & Classification

    Product Code Product Code Serial Number Serial Number Serial Number Class 3B Laser Label Class 2 Laser Label Class 3R Laser Label 10. Diagrams A) LaserLyte L Series 68.5 1800.00 B) LaserLyte L Focus Key Ø8.80 Ø8.75 46.20 Ø7.60 Ø7.65...
  • Page 9 C) Magnetic Base D) MK1 Mounting Clamp FRONT VIEW 6x32 unc 5/8” Phillips screw and 6x32 unc hex nut (Philips screw A) M5 Nut 24.70 12.70 M5 x 25/35 C/sk SIDE VIEW socket screw (Machine Screw A) 6.35 Ø35.00 E) Heavy Duty Mounting Clamp SIDE VIEW TOP VIEW BOTTOM...
  • Page 10 B6 BrACKEt B4 BrACKEt B2 BrACKEt B12 BrACKEt Drawings not to scale T: +44 (0)1495 212213 F:+44 (0)1495 214004 E: sales@globallasertech.com www.globallasertech.com Global Laser Ltd Units 9-10 Roseheyworth Industrial Park ISO9001 Certified Abertillery. Gwent NP13 1SP UK 9090-02-070 Rev 3 18/12/2015...
