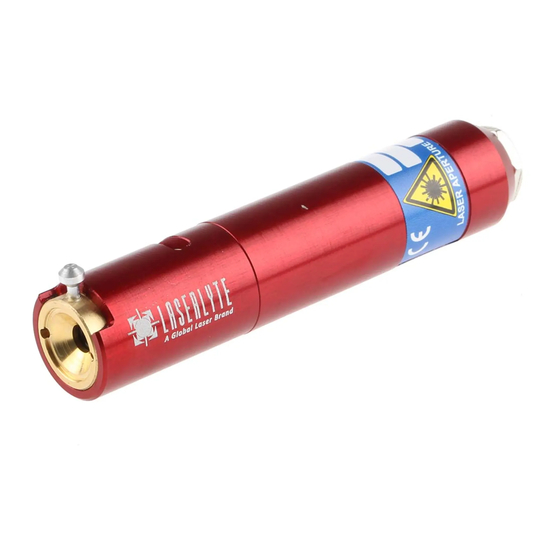

LaserLyte Red Userguide
Product Overview
Thank you for purchasing the LaserLyte red laser alignment system. A wide range of wavelengths and
intensities (standard power - 650nm, 5mW to ultra bright - 635nm, 15mW) are available in order to
maximise the visual appearance of the projection even against the darkest materials. This combined
with six projections ranging from dots , lines to crossed lines. A unique focus mechanism also allows
the user to adjust the focus without removing any optics. This helps you to accurately align and
position garments, cloth, paper, wood, and metal of different shapes and surface profiles.
A range of mounting brackets, electrical leads and power supplies allow the system to provide a
complete solution, ready to use with no previous laser experience required.
This guide explains how to mount and operate your laser, adjust the focus, and change projection
optics. This guide also discusses the relationship between working distance, fan angle, and line length.
If you have any queries or require help when using this product then please call is on +44 (0)1495
212213, email us at sales@globallasertech.com or contact your local representative.
A G l o b a l L as er B r a nd
Advertisement
Table of Contents
Related Manuals for Global Laser LaserLyte Red
Summary of Contents for Global Laser LaserLyte Red

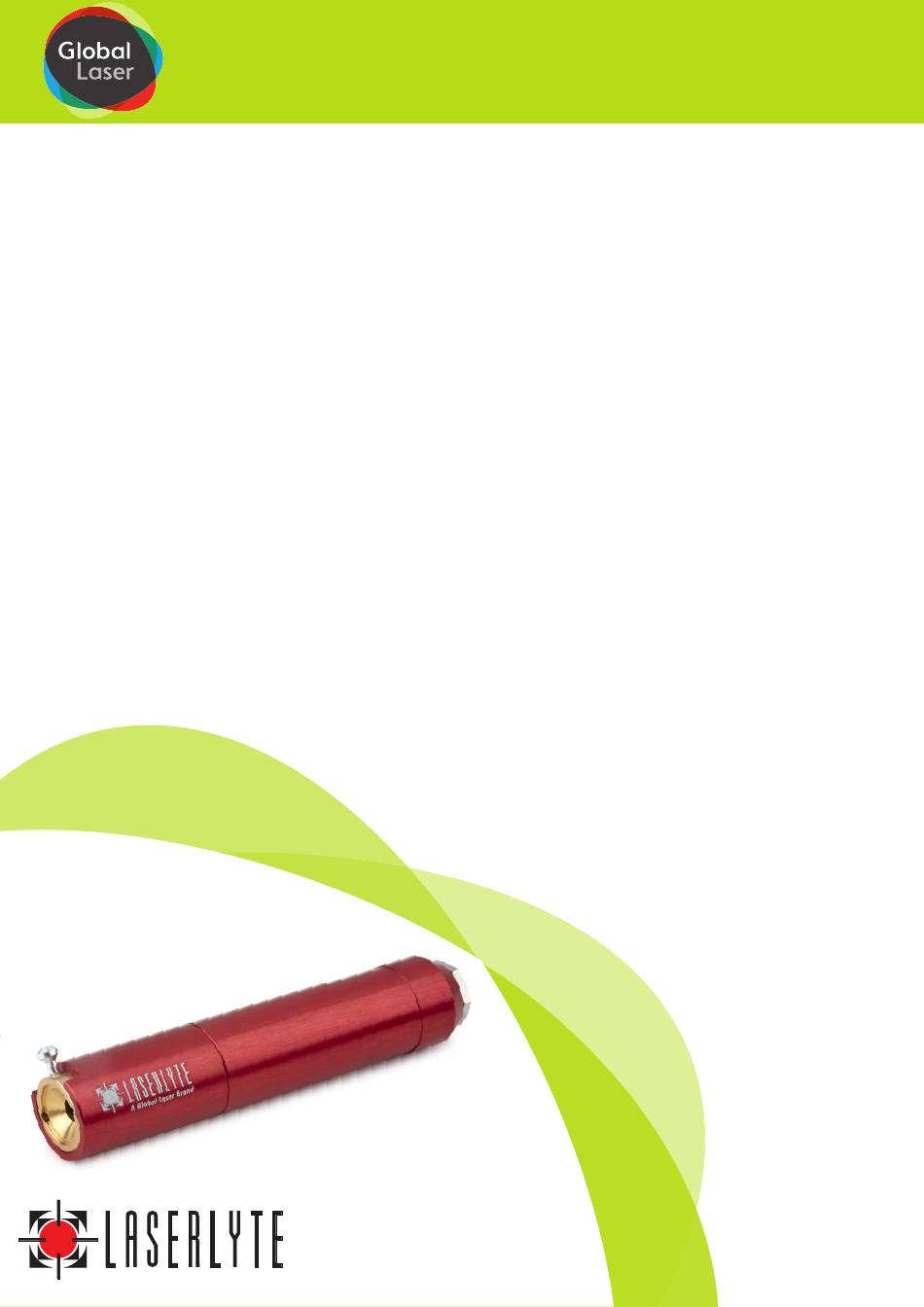

- Page 1 LaserLyte Red Userguide Product Overview Thank you for purchasing the LaserLyte red laser alignment system. A wide range of wavelengths and intensities (standard power - 650nm, 5mW to ultra bright - 635nm, 15mW) are available in order to maximise the visual appearance of the projection even against the darkest materials. This combined with six projections ranging from dots , lines to crossed lines.
- Page 2 Operating LaserLyte With 5V PS1/PS4 Power Supply If you have purchased an extension lead: 1. Plug the male DC Jack end of the extension lead into the DC socket on the PS1/PS4 2. Plug the male DC Jack of the LaserLyte cable into the DC socket on the extension lead If you have not purchased an extension lead: 3.
- Page 3 Manipulating The Pattern A number of the LaserLyte alignment system modules have user adjustable patterns which are con- trolled by rotating the front section of the lens assembly by an adjustment pin (as shown in diagram A). Below is a summary of the futures . RXL Model: Varies the angle between the crossed line so a 90°...
- Page 4 5. Loosen grub screw A 6. Adjust the vertical angle of your laser and then tighten grub screw A 7. Loosen 2 x grub screw B. This will allow the main body of the mount to be rotated independently of the base 8.
- Page 5 Working Distances The size of the fan angle (or spread of the beam) will determine how long the line is. When viewed from the same distance and at 90° to the surface a line with a fan angle of 80° will be longer then a line with a fan angle of 30°.
- Page 6 Warranty & Repair If your product develops a fault within 12 months from the date of purchase Global Laser will repair / replace the product. If you wish to return a faulty product contact your local representative or Global Laser to obtain a RMA (Return Material Authorisation code) and return to the address below:...
- Page 7 Heavy Duty Mounting Clamp For 11, 14, 15mm Lasers B) Heavy Duty Mounting Clamp SIDE VIEW 48.00 TOP VIEW 35.00 Ø25.00 Ø 14mm (1240-02-000) Grub Screw A (M5) BOTTOM SECTION SIDE VIEW 1 Hole Drill 4.2Ø & C/Bore 7.5Ø x 5 Deep Tap M5 x 6 Deep 8.00 at One End and Tap M5 x 6 Deep at The...
- Page 8 20.00 20.00 2 Off Socket Head Cap Screws M8 x 40LG 2 Off M8 Full Nuts 72.00 Please Note: Global Laser reserve the right to change 18.00 54.00 descriptions and specifications without notice. T: +44 (0)1495 212213 F:+44 (0)1495 214004 E: sales@globallasertech.com...
