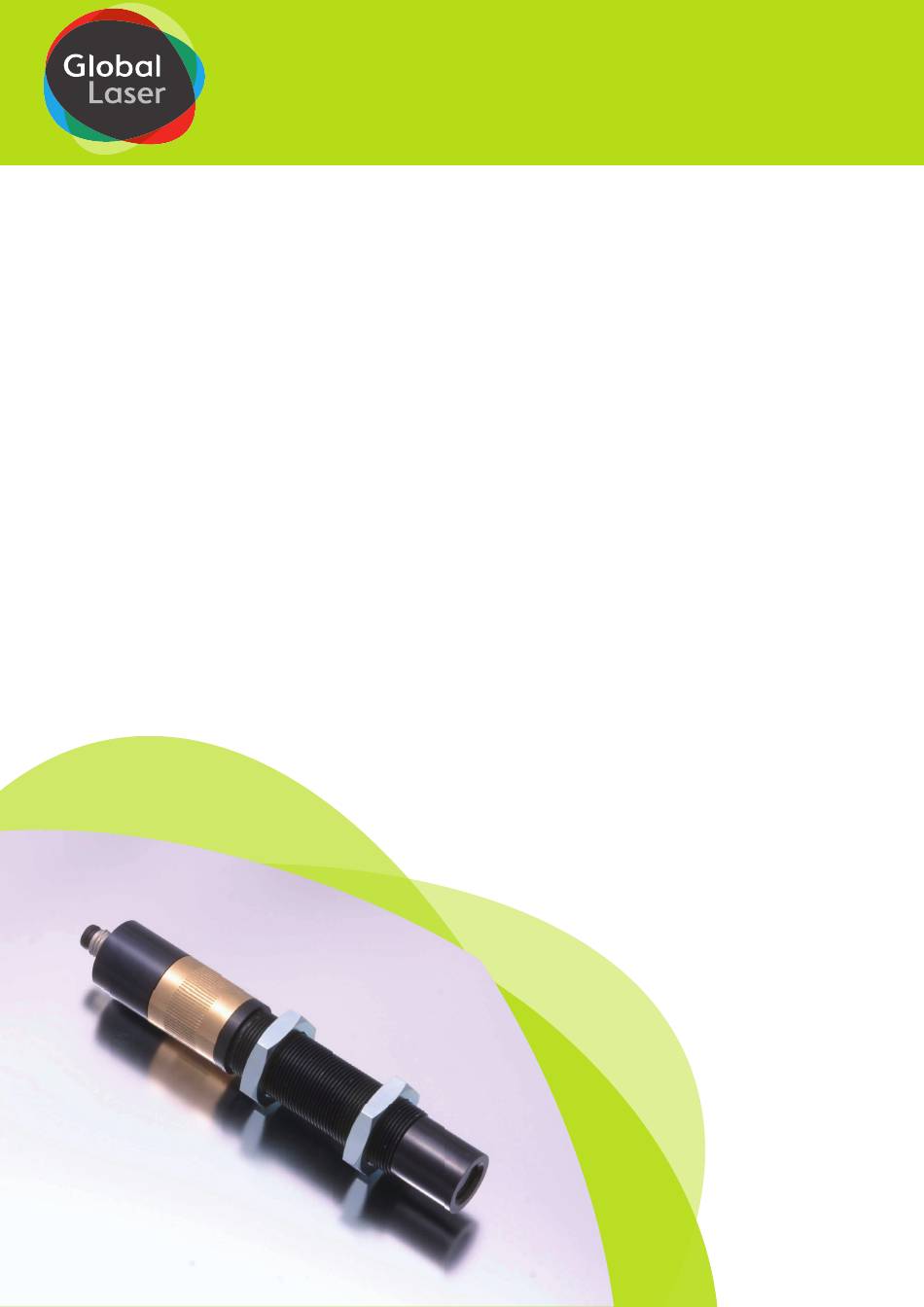

Lyte-MV 2
24V Digital Userguide
1. Product Overview
Thank you for purchasing the Lyte-MV 2 laser diode module. This module emits a spot, line or
pattern in the visible or infrared wavelength range.
If you have any queries or require help when using the Lyte-MV 2 Range please call us on
+44(0)1495 212213 or contact your local representative.

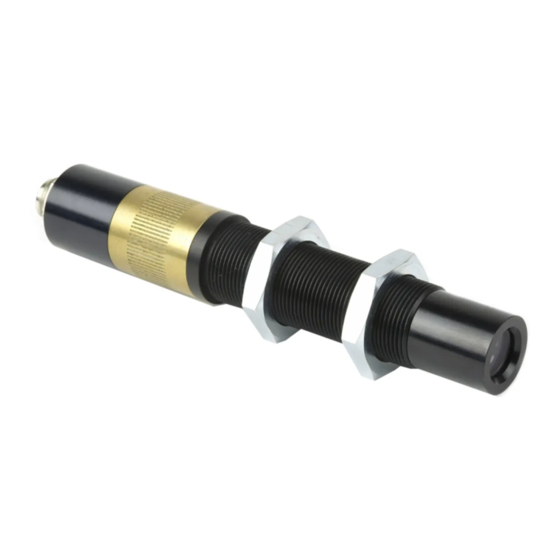

The Lyte-MV 2 provides a reliable industrial light source for a wide range of machine vision ap-
plications including triangulation, 3D inspection and alignment. It features IP67 protection, a
threaded barrel and the ability to operate from industrial voltage sources such as 24Vdc while
still providing market leading modulation features.
Available with powers up to 120mW in Red and Blue and 200mW in IR. An array of optical op-
tions including circular and elliptical spots, uniform lines and diffractive patterns. The Lyte-MV 2
also has a user adjustable focus control, to allow the user to optimize the focus via an external
control ring. The threaded barrel allows the user to mount the laser to bulkheads and mounting
blocks while ensuring heat sinking. This M18 threaded barrel makes it compatible with the ma-
jority of existing machine vision systems. The modulation options allow the user to synchronize
the output or control the power output via TTL.
A comprehensive range of accessories including mounting
clamps and rail systems, mains power supplies and laser
safety and enhancement glass are also available to
complement the Lyte-MV 2.
Advertisement
Table of Contents
Related Manuals for Global Laser Lyte-MV 2
Summary of Contents for Global Laser Lyte-MV 2
- Page 1 Thank you for purchasing the Lyte-MV 2 laser diode module. This module emits a spot, line or pattern in the visible or infrared wavelength range. If you have any queries or require help when using the Lyte-MV 2 Range please call us on +44(0)1495 212213 or contact your local representative.
- Page 2 2. Product Operation A: CW Mode To operate laser in CW mode the Red ,Black, Yellow & Blue leads should be connected to the following: Lead Description Lyte-MV 2 Red Lead + Volts +5 to 30Vdc Black Lead 0 Volts...
- Page 3 D. Operating with a PS-1 5 Volt If you have purchased a Lyte-MV 2 with a 100V/240V to 5Volt PS1 you will have the following items: Lyte-MV 2 Laser Lyte-MV2 to PS-1 Cable 100V/240V to 5 Volt PS-1 Main socket to PS-1 Power Lead (UK, Euro or US) 1.
- Page 4 (approx.) for every ten degree increase in operating temperature. To assist with this requirement the Lyte-MV 2 has a threaded front barrel (M18x1) which can fit to a bulkhead or threaded hole. The direct contact of the barrel to the mount helps to ensure heat sinking and improve laser diode lifetime.
- Page 5 Please Note that liquids are defined as water. Oil or chemicals may require further protection. It is recommended that when the Lyte-MV 2 is not in use the supplied protective cap is placed over the optics to reduce the risk of the being contaminate by dirt.
- Page 6 Class 3R Laser Label 7. Warranty & Repair If your product develops a fault within 24 months from the date of purchase Global Laser will repair / replace the product. If you wish to return a faulty product contact your local...
- Page 7 8. Diagrams A) Lyte-MV 2 114.50 115.00 9.70 51.80 Overthread Laser Focusing Ring Laser Locking Nuts B) Heavy Duty Mounting Clamp SIDE VIEW TOP VIEW BOTTOM SECTION 2 Holes Drill 3.2Ø & C/Bored 6.00Ø x 2 Holes Tap M3 x 8 Deep SIDE VIEW 3.5 Deep...
- Page 8 Ø35.00 Drawings not to scale For further information about any of our products please contact your local distributor or you can contact Global Laser in the UK. Your Local Distributor Is: Please Note: Global Laser reserve the right to change descriptions and specifications without notice.
