Benetech GM1030 Instruction Manual

Split type lux meter
Hide thumbs

Advertisement

Table of Contents

Specific Declarations:
Our company shall hold no any responisibility resulting from using
output from this product as an direct or indirect evidence.
We reserves the right to modify product design and specification
without notice.
Standard: Q/GMY 010-2018
Version: GM1030-EN-0
MODEL：GM1030

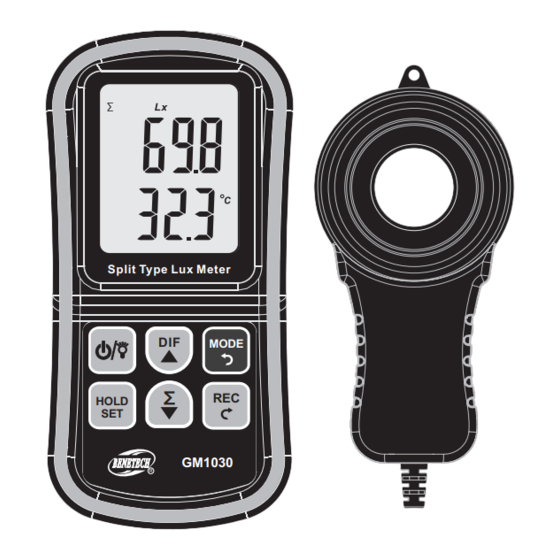

Split Type Lux Meter
Instruction Manual
Split Type Lux Meter
DIF
MODE
∑
REC
HOLD
SET
GM1030
Please scan the QR code to
download Lux-Meter App from Google Play .
Attention:
Lux-Meter APP
only supports
Android 5.0 version or above.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM1030 and is the answer not in the manual?

Questions and answers

Related Manuals for Benetech GM1030

Summary of Contents for Benetech GM1030

  • Page 1 We reserves the right to modify product design and specification Please scan the QR code to without notice. download Lux-Meter App from Google Play . Attention: Lux-Meter APP only supports Android 5.0 version or above. Standard: Q/GMY 010-2018 Version: GM1030-EN-0...

  • Page 2: Table Of Contents

    1.Product Introduction Split type illuminometer is a professional instrument for measuring CONTENTS light intensity and brightness, which is used in light intensity measurement engineering, quality control, health care and light intensity measurement in various surroundings, such as factories, schools, offices, transportation and homes.

  • Page 3: Lcd Display

    5.Function description 4.LCD display There are two working modes of illuminometer, normal mode and setting mode. Each working mode has multiple interfaces: (1) Normal mode 1. Real-time interface: display current measured value of illumination and temperature. 2. Max value interface: record from startup, display maximum value of illumination and temperature.

  • Page 4: Function Operations

    3. Display unit setting interface: set unit of illumination value (Lux/Fc) 6. Integral operation ∑ and temperature value unit (℃/℉ In real-time interface, press button to switch integral interface and 4. Timing shutdown setting interface: set shutdown timing on and off integral averaging interface in turn.
  • Page 5 7. Manual storage operations 8. Manual storage query In real-time interface of normal mode, long press button for 1s to In real-time interface, long press for 1s, if it is automatically stored enter into setting mode.Short press this button in the setting mode, interface now, short press to switch to manual storage interface, switch the interface to manual storage setting interface, the upper...
  • Page 6 "MAX" at the top of the screen indicates that the maximum data group 10. Automatic storage HOLD In the real-time interface of normal mode, long press for 1s to in the current storage area is 2000 at most.Under this interface, short enter into setting mode.Short press this button in the setting mode press button to start automatic storage timer, at the same time...
  • Page 7 11. Automatic store records query 13. Illumination and temperature unit HOLD In real-time interface, long press for 1s. if it is manual storage In real-time interface of normal mode, long press for 1s, and enter interface now, short press button, and switch to automatic into setting mode.Short press this button in setting mode and switch storage interface, as shown below: the interface to unit setting interface, the selected illuminance and...
  • Page 8 15. Bluetooth on / off setting 8.APP operation instruction HOLD In real-time interface of normal mode, long press for 1s, and enter into setting mode.Short press this button in the setting mode to switch App main interface: 1.After Bluetooth device is connected, the app automatically synchronizes to Bluetooth off setting interface.
  • Page 9 Saving interface: Extreme value interface: Click minimum value button to check the minimum value of the Click storage button to save the data you need to save. instrument. Click maximum value button to check the maximum value of the instrument. Setting interface: 1.Set the units of illumination and temperature.
  • Page 10 File List: Short press to read files, long press to multi-select and delete files. Data display interface: The upper part of data display interface shows the trend curve of illumination and the average, maximum and minimum values ​ ​ o f illumination, the lower part shows the remark information, and click the button in the upper right corner to input the stored data into Excel table and export to mobile phone (up to 65535 items of data in one table).
