- Page 1 Installation Manual...
- Page 2 INJURIES OR DAMAGE RESULTING FROM USE OR APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS CONTAINED HEREIN. BENETECH, INC.’S LIABILITY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE. ! SAFETY ! Review and understand all safety rules given herein along with local and Governmental standards and regulations.
- Page 3 P a g e All safety rules defined in this document and all owner/employer as well as State and Federal safety rules must be strictly adhered to when working on/with this, or any, conveyor plow system. ! DANGER ! Do not touch or go near the conveyor belt or conveyor accessories when the belt is running. Your body or clothing can get caught and you can be pulled into the conveyor, resulting in severe injury or death ! DANGER !
- Page 4 2. All Benetech Inc. SureGuides are shipped from our facilities assembled. Care should be taken while dissembling the units to ensure no parts are lost or damaged as the equipment is moved to its desired location.
- Page 5 2. Ensure that all workers have locked themselves from the system. Important: Do not remove the strapping on the Troughing SureGuide® frame before installation. If strapping is removed at this stage, there is danger of injury to hands and damage to equipment.

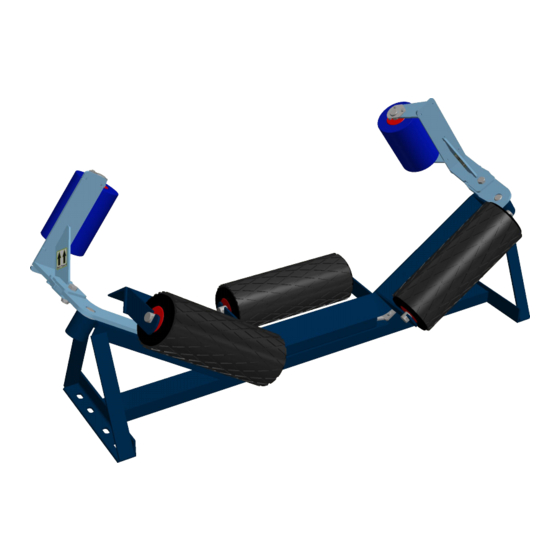

- Page 6 Belt Direction Figure 2 11. Install the Troughing SureGuide® frame into position and ensure that the frame is mounted perpendicular (90 degress) to the structure and belt. 12. Install the rubber lagged idlers into the Troughing SureGuide® frame by locating the shaft ends into the brackets provided – Area indicated by No.3 in Figure 2.
- Page 7 P a g e 15. Mount the sensor arms to the Troughing SureGuide® frame (Figure 4)– Area indicated at No.4 in Figure 2. Figure 4 Important: Do not insert M12 x 40 hex bolts into the sensor arm as adjustment cannot take place when bolts are in.
- Page 8 25. If necessary, make adjustments to the sensor arm or raise frame to increase contact with belt to achieve best tracking results. 26. If misalignment and spillage problems still occur, refer back to SureGuide® Troubleshooting Procedures to identify possible causes and solutions.
