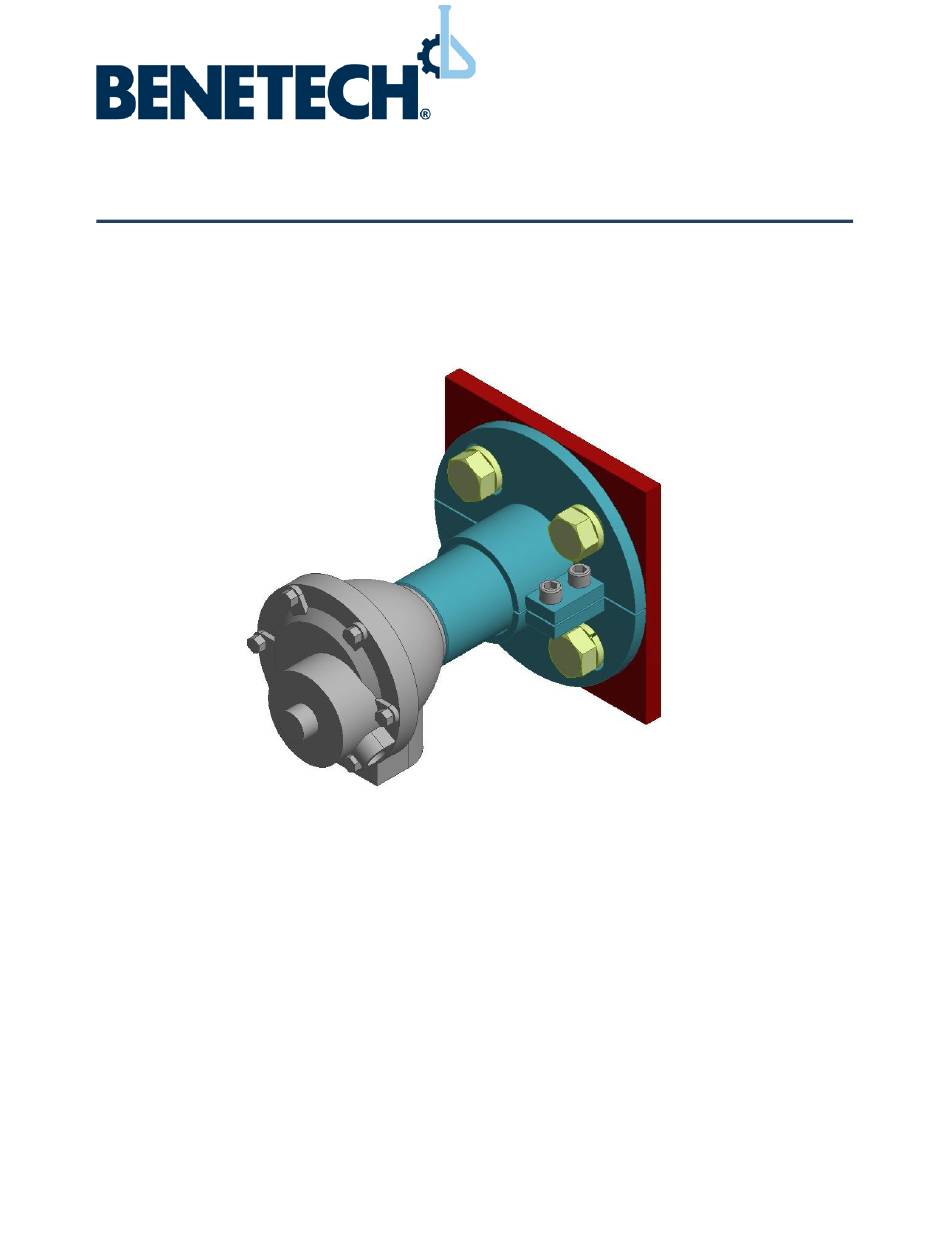

- Page 1 2245 Sequoia Drive, Suite 300 Aurora, IL 60506 Ph 630.844.1300 www.benetechusa.com Clean Sweep AC Installation & Maintenance Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION DESCRIPTION System Precaution Theory of Operation Installation A. Nozzles B. Receiver Tank C. Electrical Operations A. Overview B. Operation C. Adjustments Maintenance A. Troubleshooting Guide B. Nozzle Repair Installation Photos Page 2... - Page 3 SYSTEM PRECAUTION: Clean Sweep operate at 80 - 100 PSI pressure. Place appropriate safety signage on all access doors where CLEAN SWEEP are installed. DO NOT inspect CLEAN SWEEP nozzles when operating. Always shut off and tag out CLEAN SWEEP prior to entering or inspecting chutes or bins where CLEAN SWEEP are installed.
- Page 4 THEORY OF OPERATION The Pneumatic Accumulation Control System (CLEAN SWEEP) works on the principle that compressed air can be utilized to remove buildups of wet, sticky material from the walls of bulk solids handling system chutes, bins and hoppers. Compressed air (80 to 100 psig) has been proven to exert enough energy to remove large accumulations of build up on chute walls.
- Page 5 INSTALLATION If your CLEAN SWEEP System will NOT be installed by Benetech personnel, or you have chosen to expand the CLEAN SWEEP System yourself, installing/expanding your CLEAN SWEEP System can be completed per the following instructions: CLEAN SWEEP Installation 1. Determining where to locate CLEAN SWEEP nozzles: CLEAN SWEEP nozzles should be located at the area where material first starts to build up.
- Page 6 8. Install the two (2) remaining bolts into the “mounting plate” and tighten all bolts. 9. Install a 1½” all-thread nipple and air operated diaphragm valve (See Figure 2) to the back of valve body. NOTE: Use Teflon thread sealant on all pipe fittings. 10.
-
Page 7: Operations
OPERATIONS OVERVIEW The system is designed to maintain material flow through hoppers, bins, or chutes using a sequential timing device to alternately fire each CLEAN SWEEP nozzle. The system can be interlocked with a “run permissive” to ensure that the system will only operate during times when material is present. -
Page 8: Adjustments
ADJUSTMENTS The digital timer boards located inside the control panel activate the CLEAN SWEEP nozzles in a preset sequence and interval to insure even clearing of material. The firing order is usually from the discharge (lowest unit) of the chute or hopper to the top. - Page 9 The first four (4) adjustments are made on the timer board. Press the select button on the timer board. Then press the adjust button to change the value. The last adjustments are made on the timer relay. Step 1: Press select button on timer board. An LED will light next to “ON Time”.
- Page 10 Step 6: Adjust third (lower) thumbwheel on the timer relay to 0-60 seconds for length of active time when in “TIMED” mode. (4) Adjust the fourth timer to three to four minutes. This is the amount of time the system will be at rest between cycles Page 10...
-
Page 11: Maintenance
MAINTENANCE TROUBLESHOOTING GUIDE SYMPTOM CAUSE REMEDY System does not operate in any No power to controls Circuit Breaker mode Low air pressure Increase air pressure Timer Board Faulty Replace timer board System only operates in clean- Auto run permissive not made Verify that equipment is running out mode Check permissive contact... - Page 12 CLEAN SWEEP NOZZLE REPLACMENT NOTE: Before performing maintenance and/or adjustment, electrical power and compressed air supply must be turned off and supply header must be drained of pressure. Follow appropriate lock and tag procedures Remove CLEAN SWEEP valve body in reverse order of installation.
- Page 13 Note air supply piping installation with block valves CLEAN SWEEP Installed in Chute to Remove/prevent Pluggage Page 13...
- Page 14 Pilot Valve Box Location and ¼” Tube Page 14...
- Page 15 CLEAN SWEEP Installed in Hopper Discharge: Note location of pilot box Page 15...
- Page 16 PRESSURE GAUGE, 0-160 PSI SAFETY VALVE FOR ASSEMBLY DETAILS, SEE DWG CLEAN 2" AIR PIPING SWEEP-M003 AIR TANK AIR SUPPLY, 80-100 PSI, DOUBLE DIAPHRAGM SUPPLIED BY CUSTOMER AIR VALVE 1 1/2" HYDRAULIC HOSE ISOLATION BALL VALVE CLEAN SWEEP NOZZLE SEE DWG CLEAN SWEEP-M002 2"...
- Page 17 FIGURE A1...
- Page 18 1/4" CLEAN SWEEP NOZZLE 1/4" TUBE STRAIGHT CHUTE WALL 1 1/2" CLOSE NIPPLE, MOUNTING PLATE PUSH ON FITTING SCH. 40, GALVANIZED DOUBLE DIAPHRAGM AIR VALVE, 3/4-10 HEX BOLT, 1" LG., 93885 TIGHTEN TO 50 FT-LBS SPRING ADJUSTMENT NUT CLEAN SWEEP NOZZLE BODY, ADJUST STEM WITH 1/4"...
- Page 19 CLEAN SWEEP NOZZLE ASSEMBLY DETAILS FOR CLEAN SWEEP NOZZLE EXPLODED VIEW AND BILL OF MATERIAL, SEE DWG CLEAN SWEEP-M002 FIGURE A2...
- Page 20 BILL OF MATERIAL MANUFACTURER MODEL NUMBER R 8;o DESCRIPTION OR EQUIVALENT 92590 CLEAN SWEEP MOUNTING PLATE PURCH 90629 PURCH CLEAN SWEEP CLAMP COLLAR 90269 CLEAN SWEEP MAIN NOZZLE BODY wNALVE GUIDE PURCH 93346 CLEAN SWEEP VALVE STEM PURCH 93324 CLEAN SWEEP SPRING PURCH CLEAN SWEEP...
- Page 21 21" WARNING BENETECH, INC. Arc Flash And Shock Hazard Appropriate PPE Required CLEAN SWEEP Do not operate controls or open covers PNEUMATIC without appropriate personal protection ACCUMULATION equipment. CONTROL SYSTEM Failure to comply may result in injury or death! WWW.BENETECHUSA.COM TYP.
- Page 22 DOOR LAYOUT BACK PANEL LAYOUT FIGURE A4...
