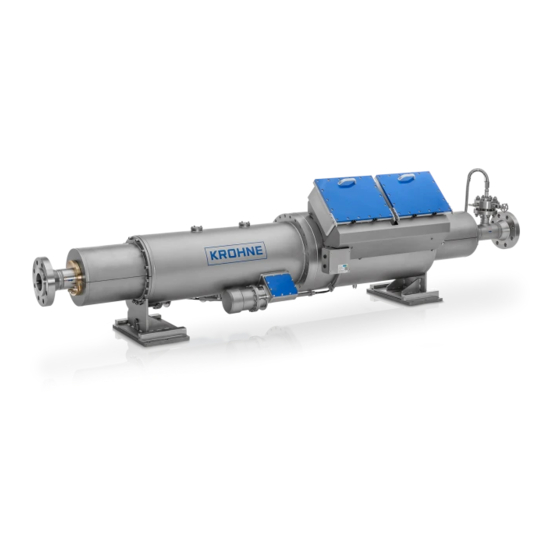

- Page 1 M-PHASE 5000 M-PHASE 5000 M-PHASE 5000 M-PHASE 5000 Supplementary Instructions Supplementary Instructions Supplementary Instructions Supplementary Instructions Magnetic resonance multiphase flowmeter © KROHNE 04/2016 - 4004673401 - AD M-PHASE5000 Ex R01 en...
-
Page 2: Table Of Contents
1.3 Approvals .......................... 6 1.4 General ..........................6 1.5 Marking label........................8 2 Temperature limits 2.1 General ........................... 10 2.1.1 M-PHASE 5000 ........................10 3 Electrical connections 3.1 Installation instructions ....................11 3.2 Connections ........................11 4 Maintenance and service 4.1 Maintenance and service.................... -
Page 3: Introduction
INTRODUCTION M-PHASE 5000 1.1 Safety instructions from the manufacturer 1.1.1 Disclaimer The manufacturer will not be liable for any damage of any kind by using its product, including, but not limited to direct, indirect or incidental and consequential damages. This disclaimer does not apply in case the manufacturer has acted on purpose or with gross negligence. -
Page 4: Warnings And Symbols Used
1.1.5 Manufacturer The instrument is developed and manufactured by: KROHNE Altometer Kerkeplaat 12 3313 LC Dordrecht The Netherlands For information, maintenance or service please contact your nearest local KROHNE representative. www.krohne.com 04/2016 - 4004673401 - AD M-PHASE5000 Ex R01 en... -
Page 5: Safety Instructions For The Operator
EN 60079-0, sec- tion 1. 2. The connecting cable of the M-PHASE 5000 Multiphase flowmeter shall be fixed and routed so that it will be adequately protected against damage. -
Page 6: Approvals
INTRODUCTION M-PHASE 5000 1.3 Approvals The M-PHASE 5000 flowmeter consists of a flow sensor and a signal converter. The ATEX approval number is: KIWA 15ATEX0030 X KIWA 15ATEX0030 X KIWA 15ATEX0030 X KIWA 15ATEX0030 X The flowmeter is approved according to the following European standards: •... - Page 7 INTRODUCTION M-PHASE 5000 The M-PHASE 5000 is suitable for installation in hazardous areas of zone 1 or 2, gas group IIB, temperature class T4. The instrument junction box contains terminals for Power and Signal connections.(all in type of protection Ex e).
-
Page 8: Marking Label
INTRODUCTION M-PHASE 5000 1.5 Marking label The flow meter contains a nameplate with device details as shown in the following two figures. Figure 1-1: Location and details of nameplate 1 Information about manufacturer and product 2 Information about CE and explosion protection, see remark on page 10, chapter 2.1.1... - Page 9 INTRODUCTION M-PHASE 5000 Figure 1-2: Location and details of nameplate 1 Information about manufacturer 2 Information about explosion protection 3 Warning for service 04/2016 - 4004673401 - AD M-PHASE5000 Ex R01 en www.krohne.com...
-
Page 10: Temperature Limits
• Insulation is not hindering free ventilation of the signal converter housing. 2.1.1 M-PHASE 5000 • The M-PHASE 5000 is suitable for an ambient temperature of: • -20...+55° C for process temperature 0..+70°C. • -20...+40° C for process temperature 0..+75°C. -
Page 11: Electrical Connections
Unused openings must be closed with suitable certified closing elements. INFORMATION! The M-PHASE 5000 compact flowmeters are delivered with two Ex e certified M20x1.5 cable glands for shielded cable. 3.2 Connections The M-PHASE 5000 flowmeters computer box contain following terminals:... - Page 12 9 Connector - Neutral 10 Connector - Protective earth The housing of the M-PHASE 5000 flowmeter must be connected to the equipotential bonding system of the hazardous area. See IEC 60079-14 clause 6.3. For this purpose the internal or external connection facility (PE clamp) can be used.
-
Page 13: Maintenance And Service
The specimen shown in Appendix 1 can be photocopied and filled in by hand or downloaded from the KROHNE website www.krohne.com as a Word file. Simply use the tabulator key to go from one fill-out field to the next field. Please attach the completely filled-out form to the instrument before returning it to KROHNE. - Page 14 Address: ................................Department: ..........Name: ....... Tel. No.: ............Fax No.: ....The enclosed device Type: ..........................KROHNE Order No. or Series No.: .................. has been operated with the following liquid.: ..............Because this water- radioactive toxic caustic flammable...
- Page 15 Tel. No.: ............Fax No.: ....Manufacturer's order no, or serial no.: ................The device has been operated with the following medium KROHNE Order No. or Series No.: .................. has been operated with the following liquid.: ..............Because this water-...
- Page 16 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
