- Page 1 PROTEUS-III/THYONE-I E VALUATION BOARD USER MANUAL OR RADIO MODULES EV Order Code Module order code Product Name 2611019024001 2611011024000 Proteus-III 2611019021001 2611011021000 Thyone-I 2611017221001 2611011021000 Thyone-I ERSION 17, 2021 EBRUARY...
- Page 2 *************** MUST READ Check for firmware updates Before using the product make sure you use the most recent firmware version, data sheet and user manual. This is especially important for Wireless Connectivity products that were not purchased directly from Würth Elektronik eiSos. A firmware update on these respective products may be required.
-
Page 3: Jumper Jp3
• LFXO crystal part number is updated in chapter 3.5.5 . January 2021 • Input capacitance variables respectively 3.5.5 . changed to • FCC exemption information is added in chapter PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... - Page 4 Serial Wire Debug Universal Asynchronous Receiver Transmitter allows Universal Asynchronous UART communicating with the module of a specific Receiver Transmitter interface. Universal Serial Bus Voltage Drain Drain Supply voltage PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity...
-
Page 5: Table Of Contents
Exclusion of liability ....... . PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 ©... - Page 6 Miscellaneous ........PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 ©...
-
Page 7: Supported Radio Modules

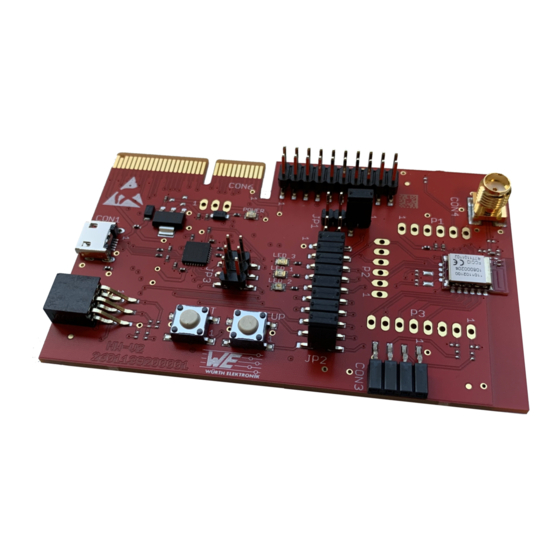

2.4GHz proprietary with smart antenna 2611011021000 Thyone-I configuration Order code Product Name 2611019024001 Proteus-III Bluetooth 5.1 EV-kit 2611019021001 Thyone-I EV-Kit 2611017221001 Thyone-I EV-Kit Long Range Table 1: Compatibility Figure 1: Product image PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 8: Content Proteus-Iii Bluetooth 5.1 Ev-Kit
Kit Content 2611019024001 Quantity Evaluation board with Proteus-III USB2 A to USB Micro cable Packaging: Cardboard Box, ESD safe cover Table 2: Content Proteus-III Bluetooth 5.1 EV-kit Kit Content 2611019021001 Quantity Evaluation board with Thyone-I with On-board PCB Antenna connection... -
Page 9: Functional Description
Please refer to the module reference manual to get the detailed module specific quick start instructions. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 10: Development Board
3 Development board 3.1 Block diagram Figure 2: Block diagram PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 11: Jumpers
3.2 Jumpers Figure 3: Jumpers, defaults PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 12: Jumper Jp1
Table 7: Jumper JP3 JP3 description printed on the bottom of the evaluation board Hardware Version 2.0 is invalid. Jumper JP3 connections in the table 7 are updated and shall be used. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 13: Connectors And Pin Headers
3.3 Connectors and pin headers Figure 4: Connectors PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 14: Con1
Connector CON3 is used to connect a NFC antenna. This feature is subjected to a cus- tomized firmware and not supported by default firmware. CON3 nRF52840 Function P0.09 NFC1 P0.10 NFC2 PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 15: Con4
Figure 6: Capacitor connection to internal antenna 3.3.5 CON5 Connector CON5 is used to connect the WE Sensor evaluation boards. This feature is subjected to a customized firmware and not supported by default firmware. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 16: Con6
P0.11 P0.18 RESET P0.23 RSVD P0.21 RSVD P0.07 RSVD P1.00 RSVD P1.08 UTXD P1.09 URXD P0.19 MODE_1 P0.22 BUSY D+ USB D- USB VDD 5V Table 10: Connector CON6 PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 17: Pinheader P1
Function P0.09 NFC1, RSVD P0.10 NFC2, RSVD P0.03 WAKE_UP P0.12 P0.11 P1.09 URXD P1.08 UTXD Table 13: Pinheader P3 nRF52840 Function VDD 3V VDD 5V Table 14: Pinheader P4 PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 18: Buttons
Internally the active low reset input of the micro processor is connected via a RC combination with the power supply to ensure a proper startup of the module. Any module provides a PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021... -
Page 19: Wake-Up Button
Beware of IO level incompatibility. The host must obey the values stated in the module’s manual. Especially the IO level restrictions must be implemented by a host system (i.e. using a level shifter to use the allowed IO levels). PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 20: Lfxo Crystal
The value of C9 and C10 results in 12pF which was also tested on the evauation board. Depending on parasitic capacitance of Host PCB, a capacitance of 12pF may be a good starting value for C9 and C10. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 21: Nfc
To apply this, remove the flash adapter connection. Make sure a jumper at JP6 is placed. Unplug and replug the USB connection of the device. Press the reset button on the evaluation board. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 22: Long Range Measurement - Thyone-I
(2611017221001) is connected to the module In order to use the module’s onboard PCB antenna, the capacitor connection to SMA connector should be made according to the chapter 3.3.4 and figure PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 23: Schematic
3.7 Schematic Figure 10: Schematic sheet-1 PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 24: Schematic Sheet-2
Figure 11: Schematic sheet-2 PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 25: Layout
3.8 Layout no metal antenna CON4 PCB edge Figure 12: Assembly diagram PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 26: Top,Bottom & Internal Layers
Figure 13: Top,bottom & internal layers PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 27: Bill Of Materials
(SMA Connection) CON1 Micro_USB Würth Elektronik 629105150521 CON2 2x10 Würth Elektronik 61002021121 CON3 BLLPSMD4S CON4 Würth Elektronik 60312102114405 CON5 Würth Elektronik 610106249221 CON6 not mounted DFLS130L-7 DFLS130L-7 LDO, 3V3 FT232RQ PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... - Page 28 0402 not mounted not mounted 180R 0402 not mounted not mounted not mounted not mounted 430152043826 Würth Elektronik 430152043826 430152043826 Würth Elektronik 430152043826 not mounted PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity...
-
Page 29: Regulatory Compliance Information
Notwithstanding the above, Würth Elektronik eiSos makes no representations and war- ranties of any kind related to their accuracy, correctness, completeness and/or usability for customer applications. No responsibility is assumed for inaccuracies or incompleteness. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 30: Important Notes
In this case, the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021... -
Page 31: Product Improvements
Unless otherwise agreed in individual contracts, all orders are subject to the current ver- sion of the "General Terms and Conditions of Würth Elektronik eiSos Group", last version available at www.we-online.com. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 32: Legal Notice
PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... - Page 33 By using Würth Elektronik eiSos GmbH & Co. KG products, the customer agrees to these terms and conditions. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity...
-
Page 34: License Terms
In certain customer applications requiring a very high level of safety and in which the malfunction or failure of an electronic component could endanger human life or PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 35: Ownership
You agree to hold us harmless from any third-party claims related to your usage of the Würth Elektronik eiSos’ products with the incorporated Firmware, software and source code. Würth PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... -
Page 36: Applicable Law And Jurisdiction
By ordering a wireless connectivity product, you accept this license terms in all terms. PROTEUS-III/THYONE-I Evaluation board user manual version 1.4 © February 2021 www.we-online.com/wireless-connectivity... - Page 37 Compatibility ........Content Proteus-III Bluetooth 5.1 EV-kit .....
