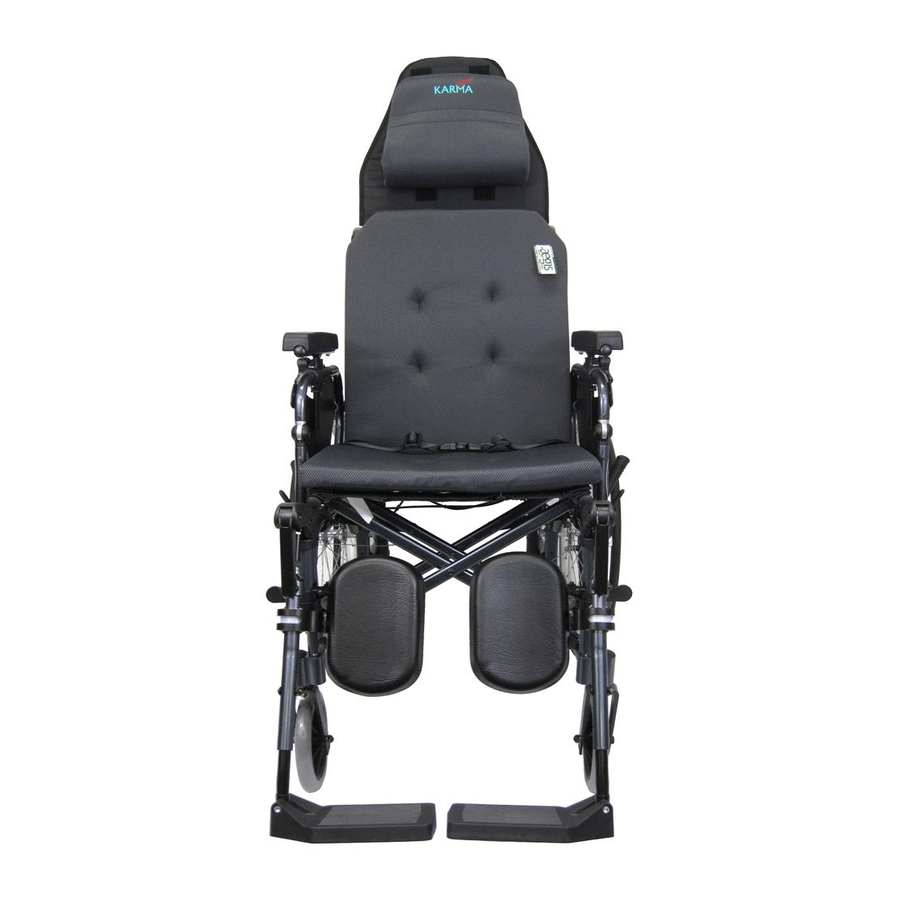

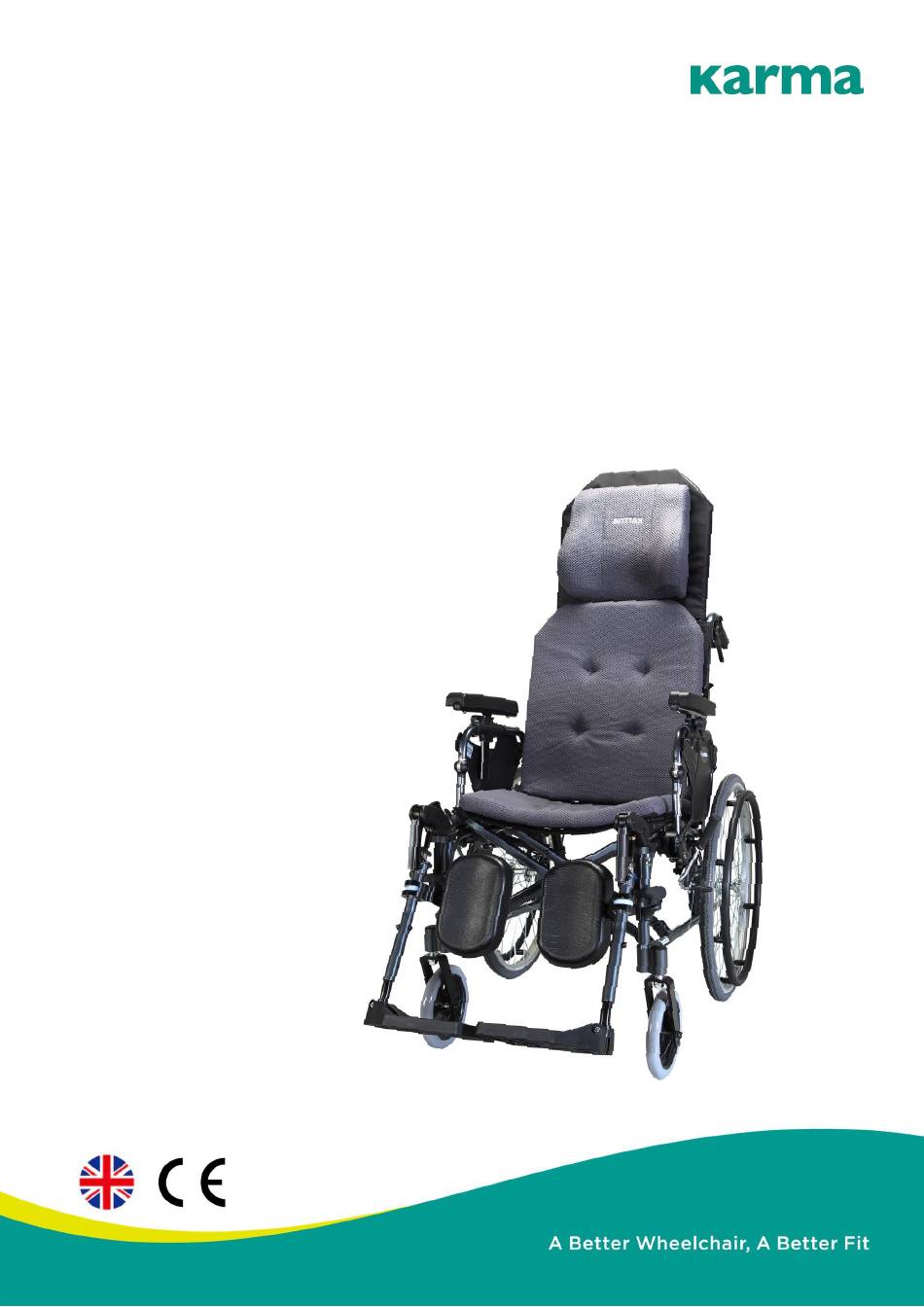

- Page 1 Manual Wheelchair User Manual MVP 502 Series (KM-5000.2)
- Page 3 GENERAL WARNING ● DO maintain your chair well, in particular check the tyre(tire) pressure since this affects the efficiency of the brakes. ● DO make sure both brakes are applied before getting in or out of the chair. ● DO make sure both brakes are applied when the chair is not being pushed or used.
- Page 4 ● If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by Karma. Use of parts that are not authorized by Karma will void your warranty.
- Page 5 If you cannot contact your dealer, please contact another authorized Karma dealer for service. If all else fails, contact Karma directly via our website or give us a call and we can refer you to your new service provider.
-
Page 6: Table Of Contents
TABLE OF CONTENTS 1. PREFACE ..............................1 2. SAFETY ............................... 1 2.1 D ............................1 OORWAYS 2.2 L ..............................2 EANING 2.3 N ........................2 EGOTIATING NCLINES 2.4 K ) ............................. 2 ERBS URBS 2.5 S ..............................2 TAIRS 2.6 S .............................. - Page 7 8. SPECIFICATIONS ..........................32 9. CLEANING & RECYCLING ........................ 35 9.1 C ............................35 LEANING 9.2 F ..............................35 RAME 9.3 U ............................35 PHOLSTERY 9.4 P ......................35 ONSUMER ECYCLING 10. WARRANTY ............................37 10.1 S ..........................37 ERIAL UMBER 10.2 W ........................
-
Page 8: Preface
1.2 This owner's manual is written for Karma wheelchair: MVP502 Series. 1.3 The symbols used in this owner's manual are explained below. Pay special attention to the parts marked with these symbols. -
Page 9: Leaning
2.2 Leaning Do not lean over the side of your wheelchair since such an action may cause you to lose balance and fall. (See Figure 2.1) 2.3 Negotiating Inclines 2.3.1 Never turn on a hill due to the danger of tipping. 2.3.2 When assisting, go straight up a slope. -
Page 10: Streets
2.7.3 Never stand on the footplates when getting in or out of the chair. 2.7.4 Never carry more than one passenger. Karma wheelchairs are limited to only one single user. 2.7.5 Use caution to assure your clothing doesn't get tangled with the wheels. -
Page 11: Anti-Tippers
2.9 Anti-tippers 2.9.1 Please purchase anti-tippers and always use them to avoid personal injury. CAUTION: ● When tilting your wheelchair, please change ● the position to avoid tipping and causing injury to the user. (See the right figure) ● ● ●... - Page 12 Figure 2.1 Figure 2.2 Figure 2.3 Figure 2.4 Figure 2.5...
-
Page 13: Labeling
2.12 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference. -
Page 14: Intended Use & Parts
3. INTENDED USE & PARTS 3.1 Intended Use 3.1.1 The MVP502 series is a self-propelled or transit wheelchair. That is, it can either be propelled by an attendant (transit) or by the user (self-propelled) 3.1.2 These wheelchairs are suitable for users up to 115 kg in weight. Hand brakes are provided for both rear wheels and are connected to a duel attendant brake located on the left push handle. -
Page 15: Parts Description Mvp502 F22
3.2 Parts Description MVP502 F22 1. Rigidifying Push-bar 10. Castor (Caster) (Lateral Support Bar) 11. Ergonomic Pillow 2. Push Handle 12. Attendant Brake (Red) 3. Reclining Lever (Black) 13. Back Upholstery 4. Back Joint 14. Armrest 5. Backrest Support Unit (Option) 15. -
Page 16: Parts Description Mvp502 F14
3.3Parts Description MVP502 F14 1.Rigidifying Push-Bar 10. Castor (Caster) (Lateral Support Bar) 11. Ergonomic Pillow 2. Push Handle 12. Attendant Brake (Red) 3. Reclining Lever (Black) 13. Back Upholstery 4. Back Joint 14. Armrest 5. Backrest Support Unit(Option) 15. Side Panel 6. -
Page 17: Operation
4. OPERATION 4.1 Preparing For Use 4.1.1 Unfolding 4.1.1.1 Hold the grip and fold up the back joint, and you can hear a sound. (See Figure 4.1) 4.1.1.2 Pointing your fingers inward with the palm of your hand on the frame, push down until the seat is fully lowered. - Page 18 Figure 4.1 Figure 4.2 Figure 4.3 Figure 4.4 Figure 4.5 Figure 4.6 Figure 4.7 Figure 4.8 Figure 4.9 CAUTION: ● Be careful not to get your fingers caught when folding the wheelchair. (See the figure in the right) CAUTION: ● Please make sure to tighten the knob bolts of the headrest, otherwise it might result in injury to the user or damage to the wheelchair.
-
Page 19: Folding
4.2 Folding 4.2.1 Unscrew the knob bolts and then remove the headrest. (See Figure 4.11) 4.2.2 Flip up the calf pad. (See Figure 4.12) 4.2.3 Flip up the footplate. (See Figure 4.13) Figure 4.11 Figure 4.12 Figure 4.13 4.2.4 Detach the upholstery. (See Figure 4.14) 4.2.5 Pull up the joint of backrest support unit (option). -
Page 20: Adjustments
4.3.1.1 You can elevate the footrest directly and stop at any position you desire. (See Figure 4.22) 4.3.1.2 To adjust footplate height, use Karma's tool provided to loosen the bolt at the side of the footrest tube. (See Figure 4.23) 4.3.1.3 Choose the height, tighten the screw, and make sure the footplate is... -
Page 21: Headrest
SUGGESTION: ● Make sure that the footplate height is adjusted properly according to the user's calf length to reduce pressure on the body. ● The footrest height must be more than 5cm. (See Figure 4.27) CAUTION: ● When adjusting footrest lengths, make sure the user's thigh is safe on the seat upholstery, and inner knee does not interfere with the front edge of seat upholstery. -
Page 22: Reclining Backrest
4.6 Reclining Backrest 4.6.1 Please lock both brakes. (See Figure 4.33) 4.6.2 Grasp the right push handle and press the reclining lever (black) (See Figure 4.34) 4.6.3 Push the chair downward with both hands until the desired seat angle is achieved and then release the lever. (See Figure 4.35) Figure 4.33 Figure 4.34 Figure 4.35... -
Page 23: Armrest Height Adjustment
4.8 Armrest Height Adjustment 4.8.1 You may adjust the armrest height by below steps.（See Figure 4.39） 4.8.2 Pull the knob into horizontal position to release the armrest.（See Figure 4.40） 4.8.3 Adjust the armrest to desire position and retighten the knob by push down the know into vertical position to fix the armrest.（See Figure 4.41）... -
Page 24: Transporting And Storing
4.10 Transporting and Storing Make sure the wheelchair is folded when stored. SUGGESTION: ● Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult your Karma dealer. -
Page 25: Transferring In And Out
WARNING: ● Don't put anything on the wheelchair while it is in storage. Storing goods on a folded wheelchair will cause damage and is not covered under warranty. (See Figure 4.44) Figure 4.44 4.11 Transferring In and Out 4.11.1 Transferring In 4.11.1.1 Engage both hand brakes. -
Page 26: General Use
4.11.2.6 Place one foot firmly on the ground with the knee at a right angle and the other foot slightly apart and further back. 4.11.2.7 Place your hands on the front of the armrests and moving your weight forward, bring your head and shoulders up over your knees as you push yourself up. - Page 27 4.12.1.6 Always be careful not to go too fast or turn too quickly and try to achieve a smooth steady ride. 4.12.1.7 Before crossing the tracks, please stop completely and look both ways. 4.12.1.8 Cross the tracks perpendicular to avoid your wheels getting stuck. 4.12.1.9 Do not drive at full speed over railroad tracks.
-
Page 28: Tilting By The Attendant
4.13 Tilting by the Attendant 4.13.1 Make sure both the user's feet are on the footplates and will not slip off. Make sure the handgrips are secure and cannot slip off. 4.13.2 Release both brakes. 4.13.3 Grasp both push handles firmly. 4.13.4 Put your stronger foot on the relevant tipping lever at the back of the chair. -
Page 29: Going Down Kerbs(Curbs)
4.15 Going Down Kerbs(Curbs) 4.15.1 Please note: It is always better to avoid kerbs(curbs) where possible by using ramped kerbs(curbs) or slopes and this operation is best attempted with the aid of an attendant. 4.15.2 Going Down Kerbs(Curbs) Forwards with and Attendant CAUTION: ●... -
Page 30: Going Up Kerb(Curbs)
4.15.10Tilt the chair back slightly and pull the tilted chair far enough into the road so that the castors(casters) and footrests can be lowered clear of the kerb(curb). 4.16 Going Up Kerb(Curbs) Please note: This operation is best attempted with the aid of an attendant and the best method is to go up kerb(curbs) forwards as this maintains the direction of travel and is physically less demanding for the attendant. -
Page 31: Transportation
For further information on the use of wheelchair restraints, please refer to the manufacturer's user guide. 4.18.2 Karma always recommends that the user transfers to the vehicle seat, because using a wheelchair as a seat in a vehicle does not provide the equivalent level of safety of a vehicle seating system. -
Page 32: Method Of Restraint
4.19.2 Please remember to install the tie-down bracket kits before using the four point webbing systems. The below photo illustrates the installation location of tie-down bracket kits. For further information, please contact your local dealers for assistance. 4.19.3 A four point tie-down system should tightly fasten to the lower wheelchair frame marked with a yellow sticker as pictured. -
Page 33: Fitting Seat Belt
4.20.2.2 Take the brakes off and reverse the wheelchair to tension the front straps. Apply the wheelchair brakes (the brakes should be left on during transport). 4.20.3 Fitting the rear restraint 4.20.3.1 Attach rear straps into the rail approximately 300 mm behind the wheelchair backrest. -
Page 34: Inspection And Maintenance
5.1.10 A qualified technician can be found with an authorized distributor/dealer. CAUTION: ● Visit a Karma wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record 5.2.1 In order to ensure that your wheelchair is in good condition, please contact Karma authorized dealers regularly and make further wheelchair inspection and maintenance records. - Page 35 5.2.2 A maintenance/service fee may apply. SUGGESTION: ● Even if you don't use the vehicle for a long time, the wheelchair should still be maintained regularly. You should clean your wheelchair regularly to keep it beautiful and safe. Weekly Monthly Item GENERAL ●...
- Page 36 ● Quick-release axles lock properly; lubricate if necessary Ⅴ ● No excessive side movement or binding when lifted and Ⅴ spun ● Inspect for cracked, bent or broken spokes Ⅴ ARMRESTS ● Inspect the detachable armrest button for effective Ⅴ locking ●...
-
Page 37: Options And Accessaries
● Oxygen Holder ● Height adjusts from 130cm (51") ● Standard size attaches to the back of to 200cm (78"). wheelchairs. ● Attaches to all Karma manual ● Attaches to all Karma manual wheelchairs. wheelchairs. ● Backrest Bag ● Folding Drink Holder ●... -
Page 38: Troubleshooting
Thus, this should be performed by your approved repairer and therapist. 7. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a Karma wheelchair dealer. Problem Checking Points and Corrective Action 1.Chair Veers... -
Page 39: Specifications
8. SPECIFICATIONS Product Model MVP 502 (KM-5000.2) Nominal seat width (in) Nominal seat depth (in) Caster x Rear wheel size (in) 7 x 14 Maximum user weight (kg) Overall length with legrest (mm) 1190 1190 1190 1190 1225 1225 Overall width (mm) Overall height (mm) 840 / 1350 (with headrest) Folded length (mm) - Page 40 * Karma reserves the right to modify information herein without further notice. * If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the Karma website. Product Model MVP 502 (KM-5000.2)
- Page 41 * The actual product specifications may vary according to different configurations. * Karma reserves the right to modify information herein without further notice. * If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the Karma website.
-
Page 42: Cleaning & Recycling
CAUTION ● Please do not travel across a slope (in any direction) greater than 7 degrees. 9. CLEANING & RECYCLING 9.1 Cleaning In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. - Page 43 9.4.1 There are many organizations in many countries you can find on the Internet that will accept used goods for charity. 9.4.2 Please search the information highway to help less fortunate individuals and protect our planet for future generations. 9.4.3 If you do not have access to the world wide web please use your local phone directory, ask for operator assistance or go to your local government center for more information.
-
Page 44: Warranty
10.2.1.4 Warranty maintenance can be performed by authorized KARMA wheelchair dealers only. 10.2.1.5 KARMA is not responsible for the transportation costs for repair and replacement. 10.2.1.6 Warranty maintenance is the repair or replacement according to the condition of the parts, and replaced parts will be the property of KARMA. - Page 45 KARMA. 10.2.2.6 Damage resulting from use in unsuitable environments. 10.2.2.7 Damage resulting from any addition, modification, or alteration of the product or parts without the approval by KARMA. 10.2.2.8 Damage resulting from external factors, such as chemicals, oil, debris, etc.
- Page 46 10.2.4.2.3 Provide relevant warranty information and recommendations for improvements. 10.2.5 Transfer of Warranty Rights If you purchase a second-hand KARMA wheelchair while it is still within the warranty period, bring this user manual and the wheelchair to the authorized dealer and perform necessary product inspection, maintenance and warranty inheritance procedure.
- Page 48 110404000031 Release Date: Jan. 2021 V.12...
