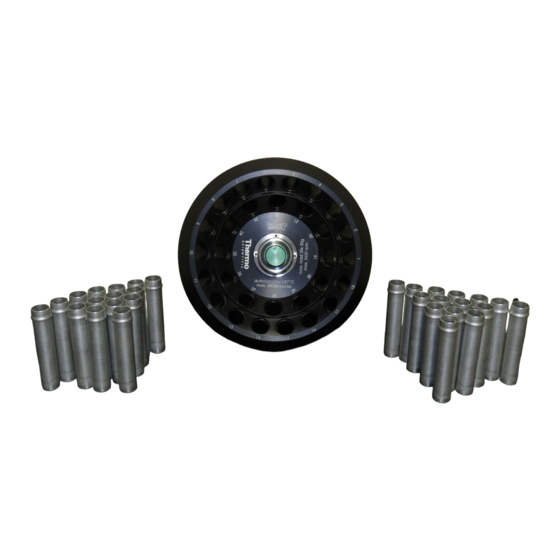

- Page 1 Thermo Scientific CLINIConic 30 x 15 ™ Instruction Manual 50121050-d • 07 / 2020 Visit us online to register your warranty: thermofisher.com/labwarranty...
- Page 2 WEEE Conformity This product is subject to the regulations of the EU Waste Electrical & Electronic Equipment (WEEE) Directive 2012/19/EU. It is marked by the following symbol:...
-
Page 3: Table Of Contents
Cycle Counter ......................4-4 Chapter 5 Maintenance and Care ......................5-1 Cleaning Intervals .....................5-2 Cleaning ........................5-2 Disinfection ......................5-3 Decontamination .....................5-4 Autoclaving ......................5-5 Service of Thermo Fisher Scientific ................5-5 RCF-Values .......................A-1 Chemical Compatibility Chart ................B-1 Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 5: Preface
• Use only accessories which have been approved by Thermo Fisher Scientific. Exceptions to this rule are commercially available glass or plastic centrifuge tubes, provided they have been approved for the speed or the RCF value of the rotor. Thermo Scientific 75003623 CLINIConic 30 x 15... - Page 6 ATTENTION means that material damage could occur. WARNING means that injuries or material damage or contamination could occur. This symbol refers to biological hazards. Observe the information contained in the instruction manual to keep yourself and your environment safe. 75003623 CLINIConic 30 x 15 Thermo Scientific...
-
Page 7: Rotor Specifications
Rotor Specifications Contents “Technical Data” page 1-2 • Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 8: Technical Data
/ min. radius [cm] 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 25 / 30 Accel. / braking time [s] 30 / 35 30 / 35 aerosol-tight permissible temperature range autoclavable °C 75003623 CLINIConic 30 x 15 Thermo Scientific... - Page 9 / min. radius [cm] 14.0 / 8.5 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 25 / 30 Accel. / braking time [s] 40 / 40 40 / 40 aerosol-tight permissible temperature range autoclavable °C Thermo Scientific 75003623 CLINIConic 30 x 15...
- Page 10 / min. radius [cm] 14.0 / 8.5 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 25 / 30 Accel. / braking time [s] 30 / 35 30 / 35 aerosol-tight permissible temperature range autoclavable °C 75003623 CLINIConic 30 x 15 Thermo Scientific...
- Page 11 / min. radius [cm] 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 25 / 30 Accel. / braking time [s] 40 / 40 40 / 40 aerosol-tight permissible temperature range autoclavable °C Thermo Scientific 75003623 CLINIConic 30 x 15...
- Page 12 / min. radius [cm] 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 30 / 30 Accel. / braking time [s] 45 / 40 45 / 40 aerosol-tight permissible temperature range autoclavable °C 75003623 CLINIConic 30 x 15 Thermo Scientific...
- Page 13 RCF value at n 4,997 max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 25 / 30 Accel. / braking time [s] 30 / 35 aerosol-tight permissible temperature range autoclavable °C Thermo Scientific 75003623 CLINIConic 30 x 15...
- Page 14 RCF value at n 4,997 max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5 Pitch angle [°] 25 / 30 Accel. / braking time [s] 40 / 40 aerosol-tight permissible temperature range autoclavable °C 75003623 CLINIConic 30 x 15 Thermo Scientific...
- Page 15 Accessories Contents “Rotor • data” page 2-1 “Accessories” page 2-1 • Thermo Scientific 75003623 CLINIConic 30 x 15...
-
Page 16: Chapter 2 Accessories
Accessories 75003623 CLINIConic 30 x 15 Thermo Scientific... - Page 17 ™ AutoLock Contents “Rotor Installation” page 3-2 • • “Removing the Rotor” page 3-3 Thermo Scientific 75003623 CLINIConic 30 x 15...
-
Page 18: Chapter 3 Autolock
™ AutoLock is defective and you are not permitted to operate the rotor. Check for any damage to the rotor: Damaged rotors must not be used! Keep the hub area clear of objects. 75003623 CLINIConic 30 x 15 Thermo Scientific... -
Page 19: Removing The Rotor
At the same time, pull the rotor directly upwards with both hands and remove it from the motor shaft. Make sure not to jam the rotor while doing this. ™ Figure 3-2. Handling the AutoLock Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 21: Rotor Loading
Rotor Loading Contents “Before a run” page 4-2 • • “Proper Loading” page 4-2 “Improper Loading” page 4-2 • • “Maximum loading” page 4-3 “Cycle Counter” page 4-4 • Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 22: Before A Run
Start loading the rotor on the outer ring. If you only centrifuge one sample place a test tube with water in the opposite position to balance the load. Improper Loading 75003623 CLINIConic 30 x 15 Thermo Scientific... -
Page 23: Maximum Loading
2373 Recalculate the maximum permissible speed according to the following formula and select the calculated maximum speed for the centrifuge: Maximum permissible load --------------------------------------------------------------------- - Effective load = admissible speed = maximum speed Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 24: Cycle Counter
Service life examples Usage profile Maximum service life at 50,000 cycles frequent use 7 years 30 runs / day 220 days / year 75003623 CLINIConic 30 x 15 Thermo Scientific... -
Page 25: Maintenance And Care
Maintenance and Care Contents “Cleaning Intervals” page 5-2 • • “Cleaning” page 5-2 “Disinfection” page 5-3 • • “Decontamination” page 5-4 “Autoclaving” page 5-5 • • “Service of Thermo Fisher Scientific” page 5-5 Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 26: Cleaning Intervals
• Store the aluminum parts at room temperature or in a cold-storage room with the cavities pointing down. CAUTION Before using any cleaning or decontamination methods except those recommended by the manufacturer, users should check with the manufacturer that the proposed method will not damage the equipment. 75003623 CLINIConic 30 x 15 Thermo Scientific... -
Page 27: Disinfection
Observe the safety precautions and handling instructions for the cleaning agents used. Contact the Service Department of Thermo Fisher Scientific for questions regarding the use of other disinfectants. Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 28: Decontamination
Disinfect the rotor and accessories as follows: 1. Open the centrifuge. 2. Turn off the centrifuge. 3. Pull out the power supply plug. 4. Grasp the rotor with both hands and lift it vertically off the centrifuge spindle. 75003623 CLINIConic 30 x 15 Thermo Scientific... -
Page 29: Autoclaving
• the suitability of the set-up site; • the lid lock and the safety system; • the rotor; • the fixation of the rotor and the drive shaft. Thermo Fisher Scientific offers inspection and service contracts for this work. Thermo Scientific 75003623 CLINIConic 30 x 15... -
Page 31: Rcf-Values
1700 14.0 1800 14.0 1900 14.0 2000 14.0 2100 14.0 2200 14.0 2300 14.0 2400 14.0 2500 14.0 2600 14.0 1058 2700 14.0 1141 2800 14.0 1227 2900 14.0 1316 3000 14.0 1409 Thermo Scientific 75003623 CLINIConic 30 x 15... - Page 32 3758 5000 14.0 2376 3913 5100 14.0 2472 4071 5200 14.0 2570 4232 5300 14.0 2669 4397 5400 14.0 2771 4564 5500 14.0 2875 4735 5600 14.0 2980 4908 5650 14.0 3034 4997 75003623 CLINIConic 30 x 15 Thermo Scientific...
-
Page 33: Chemical Compatibility Chart
M S M - U S S M S S U S S S S S S S S S U S S S S S S S S S S Boric Acid Thermo Scientific 75003623 CLINIConic 30 x 15... - Page 34 S S S U S U S S S U Ethylene Oxide Vapor ® Ficoll-Hypaque M S S - S S S - S S S S - S S - S S S S S S S M S S S 75003623 CLINIConic 30 x 15 Thermo Scientific...
- Page 35 S S S U S S M S S S S S U S U M S S S S S S S M S M U Methyl Alcohol Methylene Chloride U U U U M S S U S U U S U U U U U M U U U S S M U S U Thermo Scientific 75003623 CLINIConic 30 x 15...
- Page 36 Physiologic Media (Serum, Urine) Picric Acid S S U - S M S S S M S U S S S U S S S S U S U M S M S 75003623 CLINIConic 30 x 15 Thermo Scientific...
- Page 37 Zinc Sulfate Citric Acid (10 %) M S S M S S M S S S S S S S S S M S S S S S S S S S S Polyethyleneterephthalate Thermo Scientific 75003623 CLINIConic 30 x 15...
- Page 38 Chemical resistance data is included only as a guide to product use. Because no organized chemical resistance data exists for materials under the stress of centrifugation, when in doubt we recommend pretesting sample lots. 75003623 CLINIConic 30 x 15 Thermo Scientific...
- Page 39 Cleaning agents ............ 4-4 Cycle counter ..........5-4 Decontamination ............5-3 Disinfection ..........4-2 Improper loading ............. 5-1 Maintenance ..........4-3 Maximum loading ............iii Precautions ............... iii Preface ........... 4-2 Proper loading Thermo Scientific 75003623 CLINIConic 30 x 15...
- Page 41 Thermo Electron LED GmbH Zweigniederlassung Osterode Am Kalkberg, 37520 Osterode am Harz Germany thermofisher.com/rotors © 2009-2020 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries unless otherwise indicated. Delrin, TEFLON, and Viton are registered trademarks of DuPont. Noryl is a registered trademark of SABIC. POLYCLEAR is a registered trademark of Hongye CO., Ltd.
