iSync HD / iSync Pro Quick Reference Guide
For proper operation, do not connect the external 6 Volt DC supply (provided) to the
back of your iSync HD [Pro] Digital Video Processor and Video/Audio Switcher until:
All of your Video and Audio connections to the iSync are complete
➔
You have set the rear-panel Mode switch to the "NORMAL" mode: unless you
➔
have initiated a "Firmware Upgrade" (as described in the Operating Instruction
Manual) be sure that the program MODE switch (located on the rear panel of
your iSync to the left of the RS232 Port) is in the "NORMAL" position
CAUTION: Always test fi rst, before permanently installing the iSync HD [Pro]
Use extreme care when:
Interfacing with HDMI and/or DVI-D: always test before permanently installing
➔
cables
Adapting DVI-D to HDMI and HDMI to DVI-D: always used an adapter at the
➔
source and test before permanently installing cables
Restrict your cable lengths as follows:
50-foot maximum HDMI cables driven from a DVI-D source, or less for 1080p
➔
video resolution
➔ 30-foot maximum DVI-D cables driven from an HDMI source
iSync HD / iSync Pro Quick Reference Guide
1. Connect your Sources to the Input and
Displays to the Output of your iSync HD [Pro]
Before applying power to your iSync HD [Pro]:
› Connect your Digital (HDMI / DVI-D) and Analog (Component, Composite, S-Video) Video
sources (like your Set Top Box and DVD Player) to the Inputs of the iSync
› Connect your displays to the Outputs of the iSync
›
Connect your Audio (Digital PCM, Toslink, Analog Stereo) to the Inputs and Outputs of the iSync
›
If applicable, you may connect your Control system (Crestron, AMX, Elan, Control 4, or virtually any
other control system) to the RS232C port of the iSync, but fi rst test the unit manually as described
below

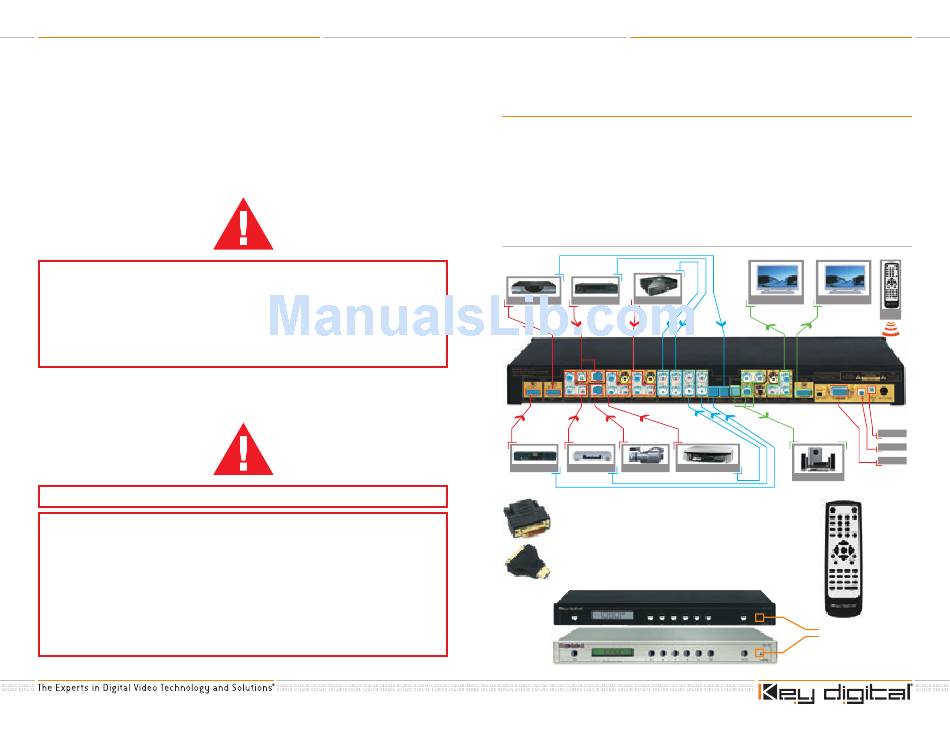

Refer to the Application Example below for a typical confi guration of your iSync.
Toslink Optical Audio L&R or PCM Audio L&R or PCM Audio
HDTV Set Top Box VCR Game Console
HDMI/HDCP S-Video or Component
(or DVI* Video) Composite Video Video
HDMI/HDCP Component S-Video
(or DVI* Video)
Video
DVD Player DVR Player Video Camera Cable Box
L&R or PCM Audio
Toslink Optical Audio
* To connect DVI-D video sources to the iSync HD [Pro]
inputs, use Key Digital DVI-D to HDMI adapters at the
output of your source.
** To connect displays with DVI-D inputs to the iSync
outputs, use Key Digital HDMI to DVI-D adapters at
the output of the iSync HD [Pro].
Display Display
Component HDMI/HDCP
Video (or DVI** Video) (or DVI* Video)
L&R, PCM, or
Component
Toslink Optical Audio
Video
Surround Sound
L&R or PCM Audio
*To connect DVI-D Video use HDMI to DVI adapter
Front IR
Sensors
Page 3
IR
Remote
Wired IR
Rear IR
RS-232
