NEX 6620A User's Guide
Winbond W83782D system monitor controller x 2
8 voltage (For +3.3V, +5V, +12V, −12V, Vtt , Vcore ×2 and V-DIMM 2.5V)
Two Fan speed (For CPU) and Three FAN Speed ( For System )
Two temperature (For CPU)
Drivers support：Windows 95/98, Windows NT4.0/2000
Power Input
ATX power connector ×1, ATX V2.03 specification AUX power connector x 1
Dimensions
Dimensions：305mm(L) x 244mm(W)

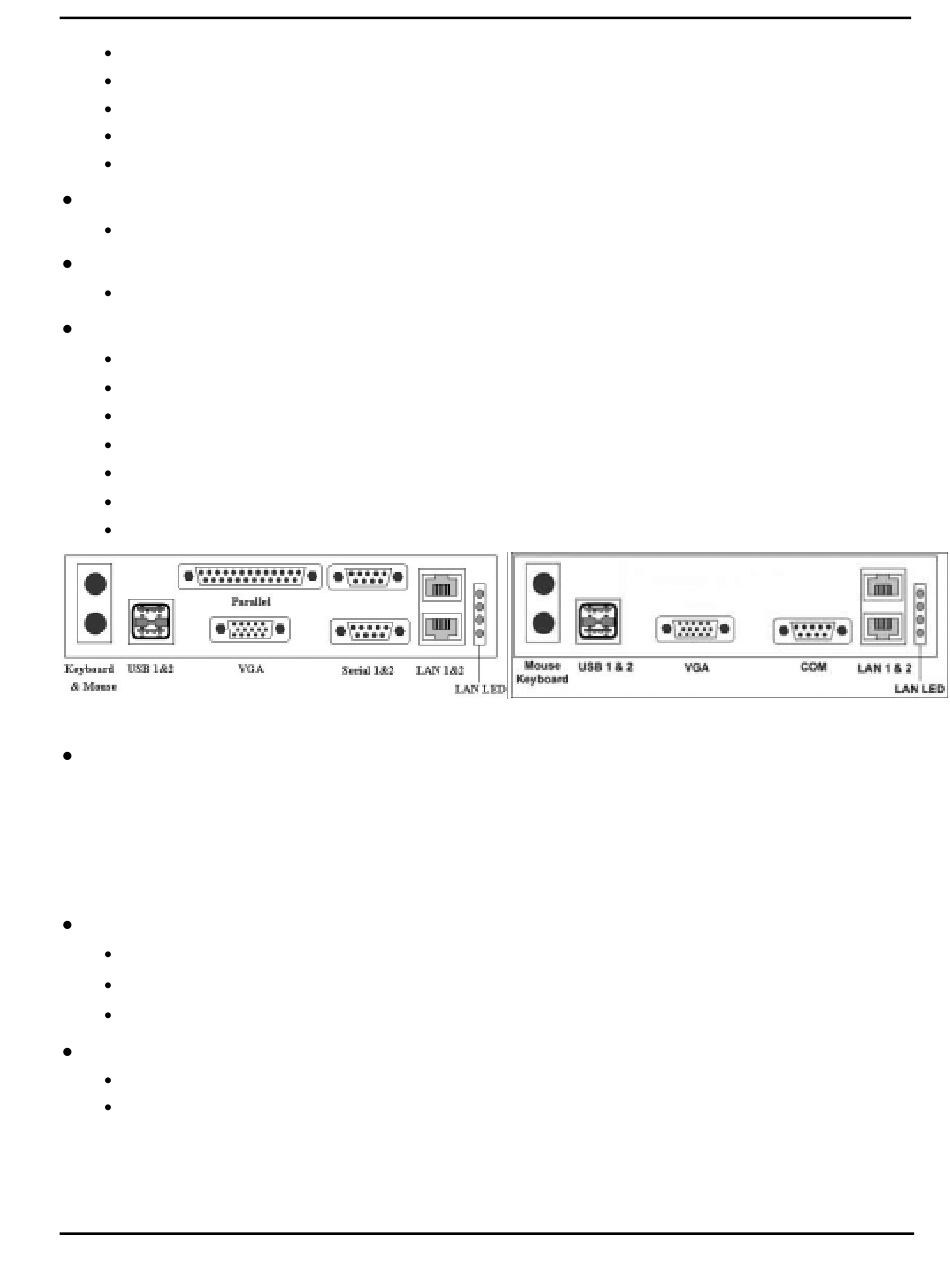

Back Panel
PS2 connector ×2 (for Keyboard/Mouse)
USB port ×2
RJ45 connector ×2 (for LAN)
15 pin D-type connector ×1 (for VGA)
9 pin D-type connector ×2 (for SIO)
25 pin D-type connector ×1 (for PIO)
LAN LED ×4 (active/link ×2, speed ×2)
NEX 6620A / NEX 6620
Power Requirements ( With Basic configuration running Windows 2000 WIN HCT system stress )
+3.3V：1A
+5V：13A
+12V：0.8A
5VSTBY：0.13A
Environments
Operating temperatures：0°C to 60°C
Storage temperatures：-20°C to 80°C
Relative humidity：10% to 90% (Non-condensing)
Certification
CE approval
FCC Class A
Introduction
NEX 6620VL2
Rev. B0
0301
