NEX 6620A User's Guide

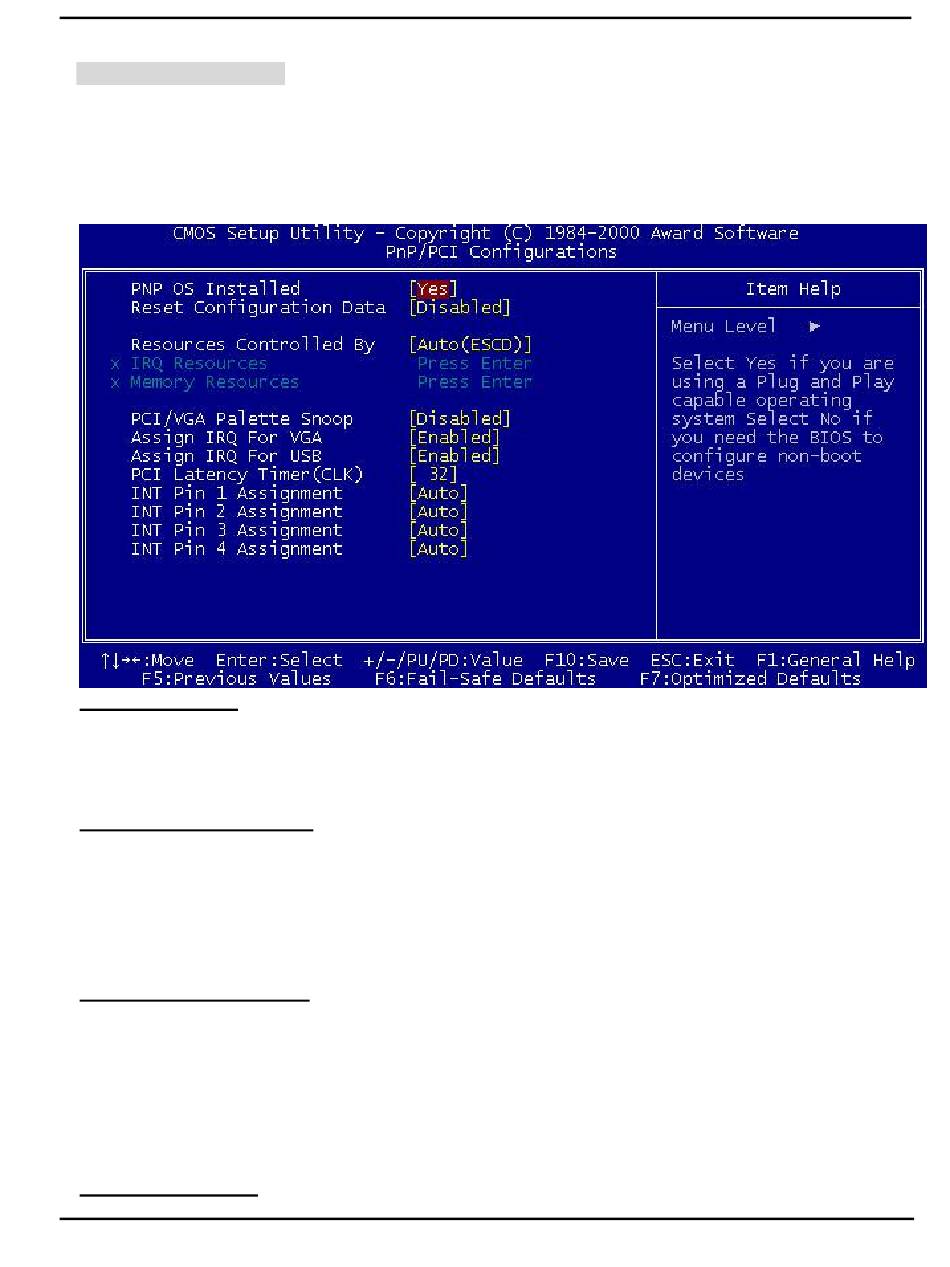

PnP/PCI Configuration

This section describes configuring the PCI bus system. PCI, or Peripheral Component Interconnect, is a

system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when

communicating with its own special components. This section covers some very technical items and it is

strongly recommended that only experienced users should make any changes to the default settings.

PNP OS Installed

Select Yes if the system operating environment is Plug-and-Play aware (e.g. Windows 95).

The Choice: Yes, No.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data

(ESCD) when you exit Setup if you have installed a new add-on Card and the system reconfiguration has

caused such a serious conflict that the operating system cannot boot.

The Choice: Enabled, Disabled.

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and

Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug

and Play operating system such as Windows95.

resources by going into each of the sub menu that follows this field.

The Choice: Auto (ESCD), Manual.

BIOS Setup

If you set this field to "manual" choose specific

Rev. B0

0301

4-23
