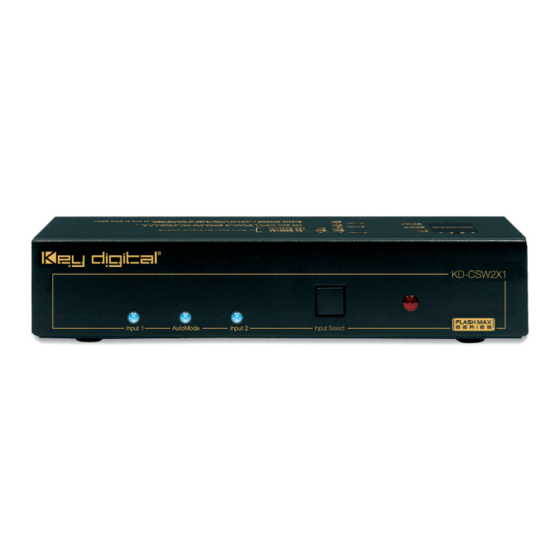

Key Digital KD-CSW2X1 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Key Digital Manuals
  4. Switch
  5. KD-CSW2X1
  6. Operating instructions manual

Key Digital KD-CSW2X1 Operating Instructions Manual

2 inputs to 1 output component video/audio switcher flashmax series
Hide thumbs Also See for KD-CSW2X1:

Advertisement

Table of Contents

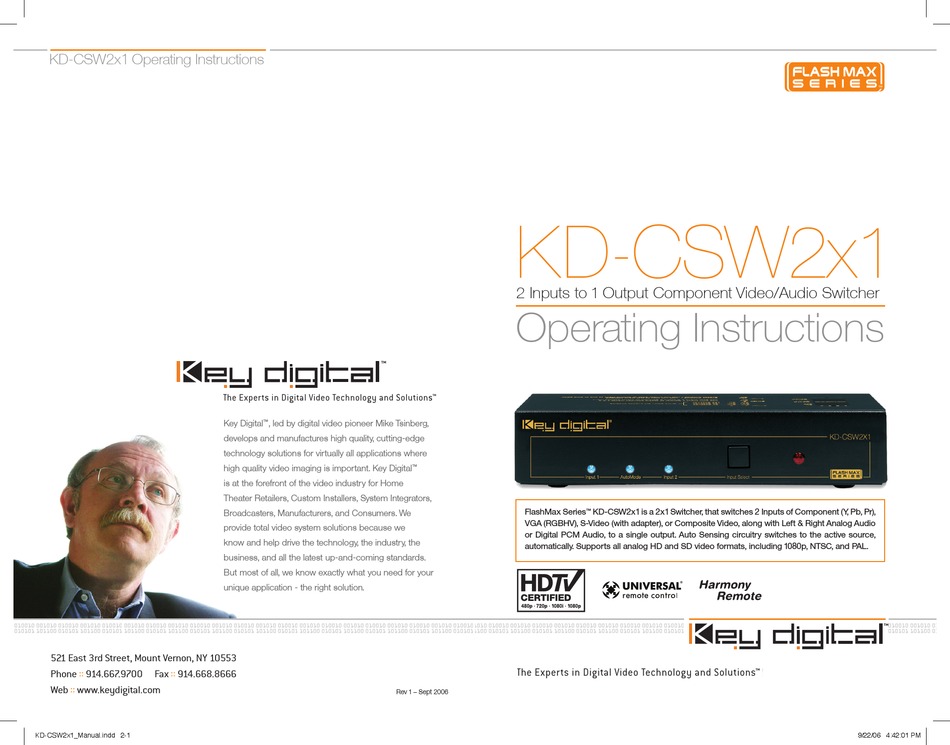

KD-CSW2x1 Operating Instructions
Key Digital
521 East 3rd Street, Mount Vernon, NY 10553
::
::
Phone
914.667.9700 Fax
914.668.8666
::
Web
www.keydigital.com
KD-CSW2x1_Manual.indd 2-1
Key Digital
, led by digital video pioneer Mike Tsinberg,
™
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers. We
provide total video system solutions because we
know and help drive the technology, the industry, the
business, and all the latest up-and-coming standards.
Exclusive Technologies
®
But most of all, we know exactly what you need for your
unique application - the right solution.
Rev 1 – Sept 2006
KD-CSW2x1
2 Inputs to 1 Output Component Video/Audio Switcher

Operating Instructions

™
FlashMax Series
™
VGA (RGBHV), S-Video (with adapter), or Composite Video, along with Left & Right Analog Audio
or Digital PCM Audio, to a single output. Auto Sensing circuitry switches to the active source,
automatically. Supports all analog HD and SD video formats, including 1080p, NTSC, and PAL.
KD-CSW2x1 is a 2x1 Switcher, that switches 2 Inputs of Component (Y , Pb, Pr),
Supported Technologies
9/22/06 4:42:01 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-CSW2X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Key Digital KD-CSW2X1

Summary of Contents for Key Digital KD-CSW2X1

  • Page 1: Operating Instructions

    Operating Instructions ™ FlashMax Series KD-CSW2x1 is a 2x1 Switcher, that switches 2 Inputs of Component (Y , Pb, Pr), ™ VGA (RGBHV), S-Video (with adapter), or Composite Video, along with Left & Right Analog Audio or Digital PCM Audio, to a single output. Auto Sensing circuitry switches to the active source, automatically.

  • Page 2: Table Of Contents

    ..........™ © 2006 Key Digital, Inc. All rights reserved. Page 1...

  • Page 3: Introduction

    (included) or front-panel button to switch inputs. Convenient front-panel LEDs indicate the switcher’s status and which input has been selected. Your audio can be Left and Right analog stereo or digital PCM. The KD-CSW2x1 can generate a › simultaneous Toslink Optical Audio output from your digital PCM Digital Audio input.

  • Page 4: Setting Up Your Switcher For Operation

    Switcher, regardless of the activity on the Input “2” . If Input “1” does not have an active input signal, then the Input “2” signal will be switched to the output of the KD-CSW2x1 Switcher. Note that in the Automatic Mode, the RED LED will illuminate along with the input LED for the source automatically selected by the Switcher, either GREEN for the “1”...
  • Page 5 OPERATION OF THE 12 VOLT SCREEN TRIGGER Note that if you look down at the top right of the KD-CSW2x1 (when you are facing the front of the unit), there is a small faceplate secured by two screws. To utilize the 12 Volt Trigger Control feature, you will need to first remove power from the unit, and then remove this faceplate.

  • Page 6: Volt Trigger

    Special wire cable (12” cable included with your Switcher) provides +12 Volts when inserted ➔ into appropriate jack and the desired input channel is switched Can be cascaded to other KD-CSW2x1 or other KDS switchers to switch as many inputs › as desired...

  • Page 7: Firmware Notice

    KD-CSW2x1 Operating Instructions Firmware Notice Your 2x1 Automatic Switcher, Model KD-CSW2x1, has firmware installed that should always reboot when power is supplied. In the extremely unlikely event your unit is not operating in accordance with the description in this manual, please refer to steps below to ensure proper operation.

  • Page 8: How To Contact Key Digital

    Page 12 KD-CSW2x1 Operating Instructions How to Contact Key Digital ™ Repairs and Warranty Service Should your product require warranty service, please contact Key Digital › Materials Authorization (RMA) number Please contact us at either: › Phone: 1-914-667-9700 ext 215 ➔...
