CHAMELEON ®

III-B

USER GUIDE

Table of Contents

Need help?

Do you have a question about the Chameleon III-B and is the answer not in the manual?

Questions and answers

John Anava

June 30, 2025

I can’t pair to my phone and only one side of the controller working

Summary of Contents for Martin System Chameleon III-B

Page 1 CHAMELEON ® III-B USER GUIDE...
Page 2: Table Of Contents
Table of Content Description Switching the Collar Receiver On and Off Fitting the Collar on the Dog Checking the Collar Contact Pairing the Collar Receiver with a Transmitter Unpairing the Collar Receiver Pairing the Collar Receiver via Bluetooth Charging the Collar Receiver Precautions for Use Troubleshooting Checking the Stimulation Operation...

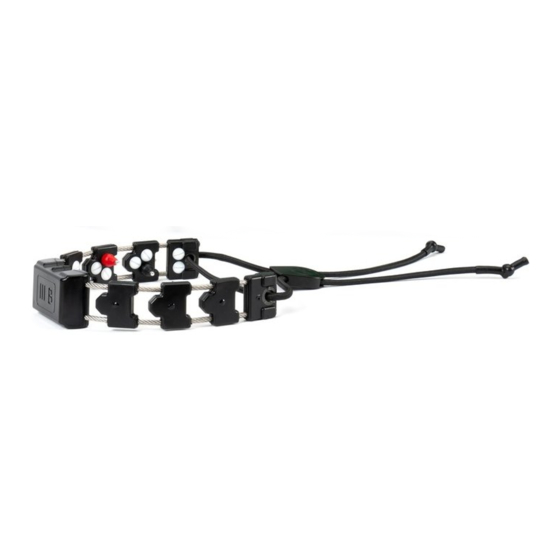

Page 3: Description
It has a discharged battery indicator. □ □ The contact points are made of high quality stainless steel. □ □ It is compatible with all transmitters from Martin System®. □ □ It is easy to switch on and off. ...
Page 4 The small collar (20 cm - 8 in) □ □ Dimensions: 195 x 28 x 18 mm (8 x 11 x 7 in) + elastic perfect fit □ □ Weight: 104 g (3.67 oz) □ □ 2 islands on each side for contact points. The medium collar (26 cm - 10 in) □...
Page 5 The contact points □ □ All sets are delivered with 4 × 15-mm (0.59 in) contact points, 2 red and 2 black (19-mm (0.75 in) contact points are available separately). □ □ Screw the red contact points on the red islands (with a red dot). □...
Page 6 □ □ The Chameleon III B collar receiver is equipped with: • A buzzer. • A vibrator. • A stimulation system. □ □ The Chameleon III B collar receiver operates in 4 different default modes: • Clicker (level 0). • Stimulation (flash / nick / momentary, continuous and rising).
Page 7 Invisibility on the neck of your dog when you need discretion. The smallest receiver with the longest battery life □ □ The Martin System® patented NHT Transformer is about 1/8th the size of a standard transformer, with the same capacity of stimulation and consistent reliable stimulation.
Page 8 Safe and fair stimulation The Chameleon III B collar receiver is equipped with the patented S.S.C. stimulation: □ □ It measures the conditions of the dog's skin 20 times per second . □ □ It adapts the output stimulation level to ensure a constant and reliable sensation felt by the dog.
Page 9: Switching The Collar Receiver On And Off
Switching the Collar Receiver On and Off Switching the collar receiver ON Slide the magnet (standalone or in the transmitter) next to the ON / OFF / synchronizing point of the receiver. ► ► You hear an ascending tone. ► ► The LEDs start flashing alternately. ►...
Page 10: Fitting The Collar On The Dog
Fitting the Collar on the Dog Clean and brush the fur. Remove any remaining underfur. Position the Chameleon III B collar receiver under the dog's neck. Adjust the strap properly. • If the strap is too loose, the contact points will not be in contact with the dog’s skin and the dog will not feel the stimulations.
Page 11: Pairing The Collar Receiver With A Transmitter
Pairing the Collar Receiver with a Transmitter If your Chameleon III B receiver comes with a transmitter, it is already paired with it. You can pair your Chameleon III B receiver with up to 4 transmitters or 4 ID codes. ...
Page 12: Unpairing The Collar Receiver
Unpairing the Collar Receiver Position and hold the magnet (standalone or in the transmitter) next to the ON / OFF / synchronizing point of the receiver. Wait until the LEDs blink quickly and simultaneously. Move the magnet away for about 3 seconds. Slide again the magnet (standalone or in the transmitter) next to the ON / OFF / synchronizing point of the receiver ►...
Page 13: Pairing The Collar Receiver Via Bluetooth
Pairing the Collar Receiver via Bluetooth Installing the application Search and install the application Doggify on your smartphone. □ □ □ □ Or scan the QR code: ◄ Android ► First pairing: Switch the collar receiver on. Make sure that the Bluetooth is activated on your smartphone. Start the Doggify application.
Page 14: Charging The Collar Receiver
Charging the Collar Receiver Wireless charging Connect the power supply to a power source. Place the central island of the collar face down on the charger. Check the LED on the collar receiver: • Flashing: the battery is charging. • Continuous: the battery is charged.
Page 15 Charging with the alligator clips Connect the power supply to the charger module. Connect the power supply to a power source (mains, 12 V cigarette lighter socket, USB port of a computer...). ► ► A LED on the charger module lights continuously. Attach the red alligator clip on a red contact point in a red island.
Page 16 Plug the red terminal of your charging cable into the socket above the bump and the red dot. Plug the black terminal into the other socket of the cradle. ► ► If the receiver is correctly connected, the battery automatically charges. Checking the charging status □...
Page 17: Precautions For Use
Precautions for Use Martin System® follows ECMA rules. Do not leave the collar around the dog's neck for long periods. □ □ • Never longer than 8 consecutive hours. • The pressure and the friction of the contact points may irritate the skin.
Page 18: Troubleshooting
Troubleshooting You hear an ascending tone when you switch on the collar receiver connected to the charging module □ □ The alligator clips may be reversed on the contact points. • Remove and connect them again in the correct position. □...
Page 19: Checking The Stimulation Operation
Checking the Stimulation Operation To check the correct operation of the collar receiver, you need the indicator lamp. Attach the alligator clips to the contact points. Send one or more stimulations with your remote control. ► ► If the receiver is working correctly, the indicator lamp illuminates with each impulse (the higher the level, the brighter the illumination).
Page 20: Recycling
If you are no longer using this material or if it cannot be repaired, do not throw it away in the usual household rubbish. Return it to the vendor or contact Martin System® customer service for further information. 20 | Chameleon III B Collar Receiver - User Manual - EN - 1.0...
Page 21: Warranty
• The liability for damage caused by the improper use of the product or a breakdown. In the case of a defect, the device will, at Martin System® discretion, be repaired or exchanged. To benefit from this warranty, you must send to Martin System®, within ten days, the warranty certificate that accompanies the device .
Page 22: Conformity
Conformity DECLARATION OF “CE” CONFORMITY Declaration of Conformity (DoC) Directive R&TTE 1999/5/CE MARTIN SYSTEM™ declares that the Chameleon III B Collar Receiver complies with all the terms of the European Directive No. 1999/5/CE of 07/04/99 And complies with the following standards: SAFETY (art 3.1.a): EN 60950...
Page 24 Rue Joseph Martin, 35 - B-4450 Lantin - Belgium +32(0)4 263 96 05 - info@martinsystem.com www.martinsystem.com...
