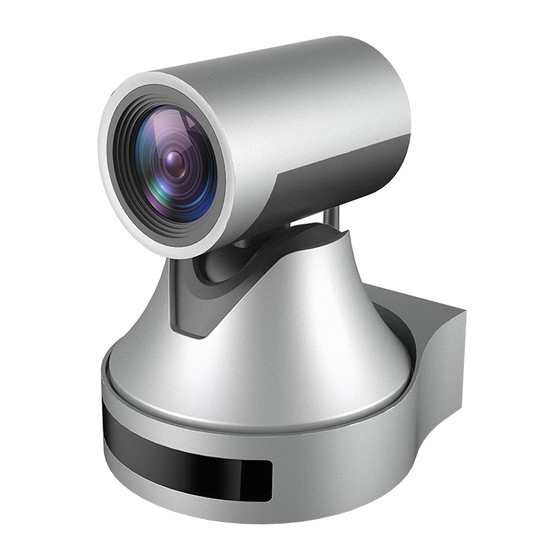

minrray UV520-ST User Manual

Full hd ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FULL HD PTZ CAMERA
User Manual
（V1.0）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV520-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for minrray UV520-ST

Summary of Contents for minrray UV520-ST

  • Page 1 FULL HD PTZ CAMERA User Manual （V1.0）...
  • Page 2 Attentions This manual introduces functions, installations and operations for this PTZ camera in details. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.

  • Page 3: Table Of Contents

    Content 1. Camera Installation.................................. 4 1.1 Camera Interfaces................................4 1.2 Mounting Brackets................................4 2. Product Overview..................................7 2.1 Product Introduction................................7 2.1.1 Model..................................7 2.1.2 Dimension................................... 7 2.1.3 Accessory..................................8 2.2 Main Features..................................9 2.3 Technical Parameter................................9 2.4 Interfaces Instruction............................... 12 2.4.1 External Interface..............................12 2.4.2 Rotary DIP Switch..............................
  • Page 4 4.2.9 Wireless Network..............................34 5. Serial Port Communication and Control..........................35 5.1 VISCA Protocol List................................ 35 5.1.1 VISCA Protocol Return Command...........................35 5.1.2 VISCA Protocol Control Command......................... 35 5.1.3 VISCA Protocol Inquiry Command..........................38 5.2 Pelco-D Protocol Command List.............................40 5.3 Pelco-P Protocol Command List............................40 6.

  • Page 5: Camera Installation

    1. Camera Installation 1.1 Camera Interfaces Figure 1.1 Product Interfaces 1. Camera Lens 7. Rotary DIP Switch 13. HDMI Output Interface 2.Remote Control Receiving 8. RS485 Input (left +, right-) 14.USB2.0 Interface (U-disk memory) Indicator 3.Tripod Screw Hole 9. RS422 Input 15.
  • Page 6 2) Ceiling Mounting...

  • Page 8: Product Overview

    2. Product Overview 2.1 Product Introduction 2.1.1 Model Model X — XXX — XXX — XX IR---IR Remote Controller WR---Wireless Remote Controller ST---Standard Interface（WIFI optional） 05---05X Optical Zoom Lens 10---10X Optical Zoom Lens 12---12X Optical Zoom Lens 20---20X Optical Zoom Lens 30---30X Optical Zoom Lens S---1080P60 Downward Compatibility M---1080P30 Downward Compatibility...

  • Page 9: Accessory

    Figure 2.2 Product Dimension 2.1.3 Accessory Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power adapter Wireless Remote Control IR Remote Control Wall Mount RS232 Cable Ceiling Mount User Manual USB3.0 Cable 3.5MM to RCA Cable...

  • Page 10: Main Features

    2.2 Main Features This series camera has perfect functions, superior performance and rich video output interfaces; Featuring with advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.
  • Page 11 F1.8 – F2.8 F1.6 – F3.0 F1.8 – F2.4 F1.6 – F3.5 F1.6 ～ F4.7 Digital Zoom 10 X Minimum 0.5Lux(F1.8, AGC ON) Illumination 2D﹠3D DNR White Balance Auto / Manual/ One Push/ Specify color temperature Focus Auto/Manual/One Push Focus Aperture Auto/Manual Electronic Shutter...
  • Page 12 Other Parameter Stored Temperature -10℃～+60℃ Stored Humidity 20%～95% Working Temperature -10℃～+50℃ Working Humidity 20%～80% Dimension 140mm×155mm×173mm Weight 1.14kg Application Indoor Accessory Package Power Supply, RS232 Control Cable, 3.5MM to RCA Cable, IR Remote Control, User Manual, Warranty Card Optional Accessories Ceiling / Wall Mount (Extra Cost)

  • Page 13: Interfaces Instruction

    2.4 Interfaces Instruction 2.4.1 External Interface Figure 2.3 Wiring Diagram 2.4.2 Rotary DIP Switch Video Format video Dial-up Dial-up video format format 1080P60 720P30 1080P50 720P25 1080I60 1080P59.94 1080I50 1080I59.94 720P60 720P59.94 720P50 480i 1080P30 576i video format to 1080P25 be set on the menu...

  • Page 14: Rs-232 Interface

    Note: 1. After switching the system and dialing, you need to restart the camera to take effect; 2. Only when the rotary dial code is F, the video format item is displayed in the menu; 3. The rotary dial code is 0-E, and the video format is subject to the rotary dial code. 2.4.3 RS-232 Interface 1）ST model RS-232C interface specification as shown below Connection to PC or Camera Controller...

  • Page 15: Application Instruction

    3）RS232(DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator VISCA networking as shown below: Camera cascade connection Camera 1 Camera 2 1.DTR 1.DTR 2.DSR...

  • Page 16: Video Output

    Notes: 1) After power on and self-checking, the camera will automatically return to the preset 0 position if it’s pre-set. 2) The default address for the IR remote control is 1#. If the menu restored to factory defaults, the remote control default address will restore to 1#.

  • Page 17: Keys Introduction For Ir Remote Control

    One to One Code Matching: Press the "set" and "*" keys combined for 3 seconds, LED indicator starts flashing. Camera receive the signal and power on, LED indicator will go off if code matching successfully. The camera can be controlled by this wireless remote control only after one to one code pairing.
  • Page 18 Auto: auto focus mode Manual: manual focus mode Focus + (near):Press【FOCUS +】 key (Valid only in manual focus mode) Focus - (far): Press【FOCUS -】 key (Valid only in manual focus mode) Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released.
  • Page 19 Up: press Down: press Left: press Right: press Back to middle position: press“【HOME】” Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint; stop as soon as the key is released. 7.

  • Page 20: Menu Introduction

    9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+Auto: Enter aging mode 7) 【#】+【*】+Auto: Exit aging mode 8) 【*】+【#】+Manual: Restore the default user name, password, and IP address 9) 【#】...

  • Page 21: System Setting

    MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝ Language English （Setup） （Camera） （P/T/Z） （Video Format） （Version） （Restore Default） [ ↑ ↓ ]Select [ ← → ]Change Value [Menu]Back [Home]OK Language: Language setting, Chinese / English Setup: System parameter setting Camera: Camera parameter setting P/T/Z: Enter into sub menu Version: Enter into sub menu Restore Default: Enter into reset setting, select YES or NO to confirm [↑↓] Select: For selecting menu...

  • Page 22: Camera Setting

    Protocol: VISCA/Pelco-P/Pelco-D/Auto Visca Address: VISCA=1~7 Pelco-P=1~255 Pelco-D=1~255 Baudrate: 2400/4800/9600/38400/115200 Visca Address Fix: On/Off Auto Filp: On/Off RS485/422: RS485/RS422 3.3.3 Camera Setting Move the pointer to the (CAMERA) in the Main Menu, click the 【HOME】key and enter the (CAMERA) as follow, CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 23 Mode: Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV: On/Off (only available in auto mode) Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode) Dynamic Range: 1~8, close Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode) WDR: Off, 1~8...
  • Page 24 IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default DZoom Close Low-Light Mode [↑↓]Select [←→]Change Value [Menu]Back Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15 Flip-H: On/Off Flip-V: On/Off B&W Mode: color, black/white Gamma: Default/0.45/0.50/0.55/0.63 DCI: Dynamic Contrast: Off/1～8 Minimum Illumination: On/Off 4）Focus Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow, FOCUS...

  • Page 25: P/T/Z

    NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D Dynamic Hot Pixel [↑↓]Select [←→]Change Value [Menu]Back 2D Noise Reduction: Auto, close, 1~7 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5 3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click the【HOME】and enter the (P/T/Z) as follow, P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...

  • Page 26: Version

    VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 720P59.94 [↑↓]Select [Menu]Back [Home]OK Note: Exit menu after modifying parameter to save it after powered off. 3.3.6 Version Move the pointer to the (VERSION) in the Main Menu, click the 【HOME】 and enter the (VERSION) as follow, VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...

  • Page 27: Network Connection

    Restore default: YES/NO. Color style and video format cannot be restored to factory default Note: If the address of former remoter is not 1 but another one from 2, 3, 4, the corresponding camera address will restore to 1 when all parameters or system parameters are restored. User should change the remoter address to be 1 (press No.1 according to the camera so to get normal operation) 4.

  • Page 28: Ie Login

    User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key, It will show the message as below, which means network connection is normal. 4.2 IE Login 4.2.1 Web Client 1）Web Client Login...

  • Page 29: Preview

    type of the web interface. 2）Download/Install Plug in When first using IE browser to access the web conferencing camera, the login page will appear “Playback plug-in is not installed, please download and install!” Click on this message, download and install MRWebXinstall.exe, according to information prompts.

  • Page 30: Video Configuration

    the following table. Menu Explanation Local Including video preview mode, record video packing time ,record video storage route settings etc. configure Audio Including audio compressing format, sampling frequency, sampling precision, compressing code configure rate settings etc. Video Including video encoding, video parameters, character-overlapping, character size, video output configure setting etc.
  • Page 31 worse, worst for options). Rate (Kb / s): Set the video bit rate (main stream default 4096Kb/s, 64-40960Kb/s optional; secondary stream default 512Kb/s, 64-40960Kb/s optional). Frame rate (F/S): Set the video frame rate (main/ secondary stream default 25F/S, main stream 5-60F/S optional, secondary stream 5-30F/S optional).
  • Page 32 c. Color: White balance, saturation, color, white balance, sensitivity, color temperature, gain red and blue gain can be set. White balance modes: Set the white balance mode (the default automatic, 2400-7000K , step size: 100, manual, One-push optional). Note: Click the “Correction” button when selected the One-push white balance mode. Red fine-tuning: default -10~10 (only available in automatic mode) Blue fine-tunable: default -10~10 (only available in automatic mode) Saturation: Set the saturation (default 60%, 70%, 80%, 90%, 100%, 110%, 120%, 130%, 140%, 150%, 160%,...

  • Page 33: Network Configuration

    changed and saved (default 48, 28-200 optional) Click on the "Save" button to display "Parameter saved successfully" message, set to take effect. 6) Video output Output format: S version: 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50, 720P30, 720P25, 1080P59.94, 1080I59.94, 720P59.94 M version: 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50 Click on the "Save"...

  • Page 34: System Configuration

    Alarm Zone: Users can add their own Equipment installation address: Users can add their own Local SIP Port: 5060 Range 0-65535 GB28181 Server Address: IP address of the computer Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001 Click on the "Save" button, it will be valid when display "Save successful". 4.2.7 System Configuration 1) Device Properties Device Name: Set the device name (the default Camera1, user can add their own).

  • Page 35: Logout

    factory default configuration; b. through the recovery menu; c. remote control shortcut * # 6; Choose one of the above three ways. The IP account and password of mode a are also restored to default. 5) Restore factory setting Click on pop-up "Restore Factory Defaults" button and choose “yes” or “no”, then the device will restart automatically and restore factory setting.

  • Page 36: Serial Port Communication And Control

    5. Serial Port Communication and Control The camera could be controlled through RS232/RS485/RS422 interface; RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/38400/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first goes left, then back to the middle position. Self-test is finished after the zoom moved to the farthest and then back to the nearest position.
  • Page 37 Command Function Command packet Note Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual Focus 8x 01 04 38 03 FF One Push mode 8x 01 04 38 04 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM_ZoomFocus...
  • Page 38 Command Function Command packet Note 8x 01 04 0E 02 FF Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position 8x 01 04 33 02 FF Back Light CAM_Back Light Compensation 8x 01 04 33 03 FF Reset...

  • Page 39: Visca Protocol Inquiry Command

    Command Function Command packet Note 1:1080P50 9:720P25 2:1080i60 A：1080P59.94 3:1080i50 B：1080i59.94 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft...
  • Page 40 y0 50 03 FF CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position y0 50 02 FF CAM_BacklightModeInq 8x 09 04 33 FF y0 50 03 FF CAM_WDRStrengthInq 8x 09 04 51 FF y0 50 00 00 00 0p FF p: WDR Strength CAM_NRLevel(2D) Inq...

  • Page 41: Pelco-D Protocol Command List

    5.2 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00...

  • Page 42: Maintenance And Troubleshooting

    Stop 0xA0 Address 0x00 0x00 0x00 0x00 0xAF Focus Far 0xA0 Address 0x01 0x00 0x00 0x00 0xAF Focus Near 0xA0 Address 0x02 0x00 0x00 0x00 0xAF Set Preset 0xA0 Address 0x00 0x03 0x00 Preset ID 0xAF Clear Preset 0xA0 Address 0x00 0x05 0x00...
  • Page 43 b. Whether there is shaking machine or objects around the camera. 4) Remote control not works a. Remote control address is set to 1. (If the machine is set back to the factory defaults, remote control addresses need to be back to 1 too) b.

  • Page 44: Copyright Statement

    7. Copyright Statement All the contents in this manual and its copyright are owned by the company. No one is allowed to imitate, copy, or translate this manual without the company’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
