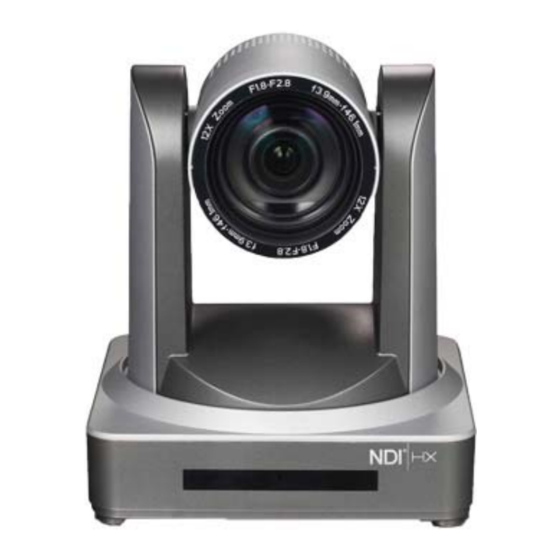

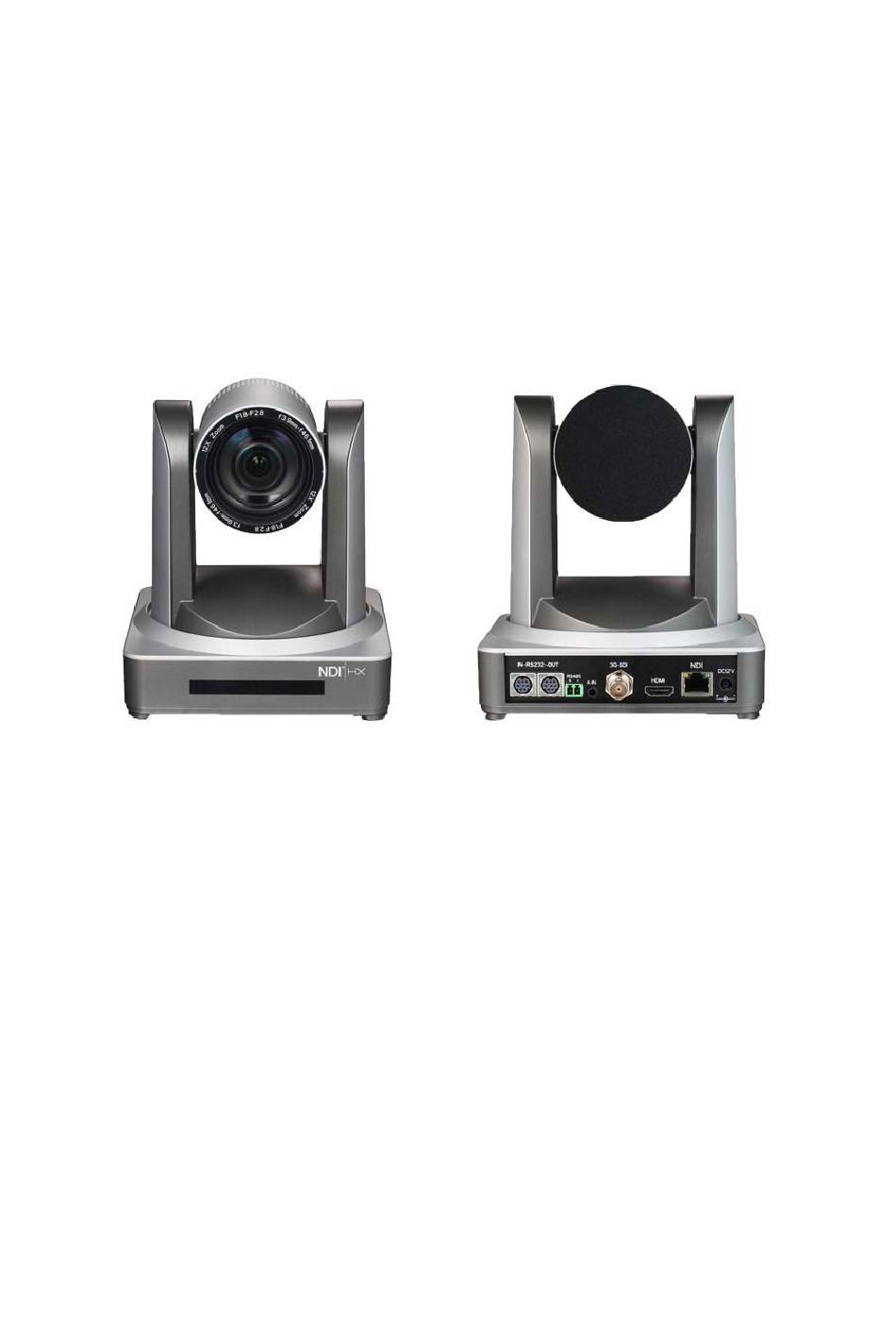

- Page 1 Minrray NDI|HX PTZ Camera Quick Installation Guide Notes: This is only quick installation for NDI Usage. For more information about this camera, pls find it from Manual from Camera Box or contact us to have PDF format manual.
- Page 2 1. Equipment Installation 1) Connect camera to your network via a CAT5 or CAT6 patch cable or directly to your PC via a CAT5 or CAT6 crossover cable. 2) Turn on camera power. 3) If successful, the orange network light will illuminate and the green light will start flashing. If unsuccessful, the patch cable is bad, you are using the wrong cable (patch aka “straight‐thru”...
- Page 3 2) Double click or click the property “Internet protocol version 4 (TCP/IPv4) “to enter into the Internet Protocol Version 4(TCP/IPv4) Properties window, select “Advanced” to enter into the Advanced TCP/IP Setting.
- Page 4 3) Add IP and subnet mask in the IP browser as picture shown below 4) Click the “Confirm” to have adding Camera to the same segment of computer network.
- Page 5 4. IE Login 1) Open IE or Google Chrome Brower, enter IP address of NDI camera: 192.168.5.163. Login with user name or password: admin. Pls select English before you login. 2) The next thing you would want to do is change your cameras IP address to be in the same range as your network.
- Page 6 pop up in your command prompt. D. When you see“IPv4 Address”that is your computers IP address on your current network. So you would use the first 3 sets of numbers from this as your IP range. If you need to find the IP range of your MAC computer, you would first open a new finder window and then go to Applications, and then Utilities.
- Page 7 5. Enable NDI | HX on Admin Webpage Login on the webpage by NEW camera IP address 6. Test NDI|HX Camera with NDI Studio Monitor (the software is available on NewTek website) 8. NDI|HX Camera Video Encode and Audio Configuration ...
- Page 8 High bandwidth mode: Main Stream Low bandwidth mode: Sub Stream Recommended video encode settings:。 1920 * 1080: 4096 kb/s 1280 * 720: 2048 kb/s 640 * 480: 1024 kb/s 640 * 360: 1024 kb/s 320 * 180: 512 kb/s 320 * 240: 512 kb/s Notes: The higher the Bitrates, the better the image quality 9.
- Page 9 Recommended audio settings: AAC 48000KHz / 64kbps NDI | HX supports AAC format only 10 Notes: High and low bandwidth mode are open at the same time, customers can switch according to different occasions. The frame rate will affect the video latency. With the same resolution, the higher the frame rate, the smaller the delay of the video.
- Page 10 2) Select Low Bandwidth Mode...
- Page 11 3) Latency setting: the frames numbers are related to frame rate. For example, the frame rate is 25fps, then the frame data is 40ms, set the frames number as 5, so the network latency is about 200ms. 4) PTZ – Device type: Sony VISCA over IP – IP Address: camera IP ‐ connect...
- Page 12 11. NDI|HX Camera & OBS 1) Using OBS, pls download OBS‐NDI plug‐in via the link below, and install. https://github.com/Palakis/obs‐ndi/releases/tag/4.7.0 2) Add NDI source...
- Page 13 3) Enable Audio...
- Page 14 5. Q&A (Trouble Shooting) Problem: Big latency with vMix and NDI|HX camera. A: 1. Latency is increased due to the cache configured on client. 2. Set the frame rate to 60 to decrease video latency. Q: NDI|HX camera latency A: The tested average latency is about 130ms, the lowest delay is about 80ms.
- Page 15 A: vMix23 and above firmware is able to output NDI|HX video. Q: Minrray NDI camera is NDI|HX or FULL NDI? A: NDI|HX (H264, H265) H.265 is only supported by the latest version of NDI 4.5.2. If you need NDI 4.5.2, pls contact us for having new firmware.
