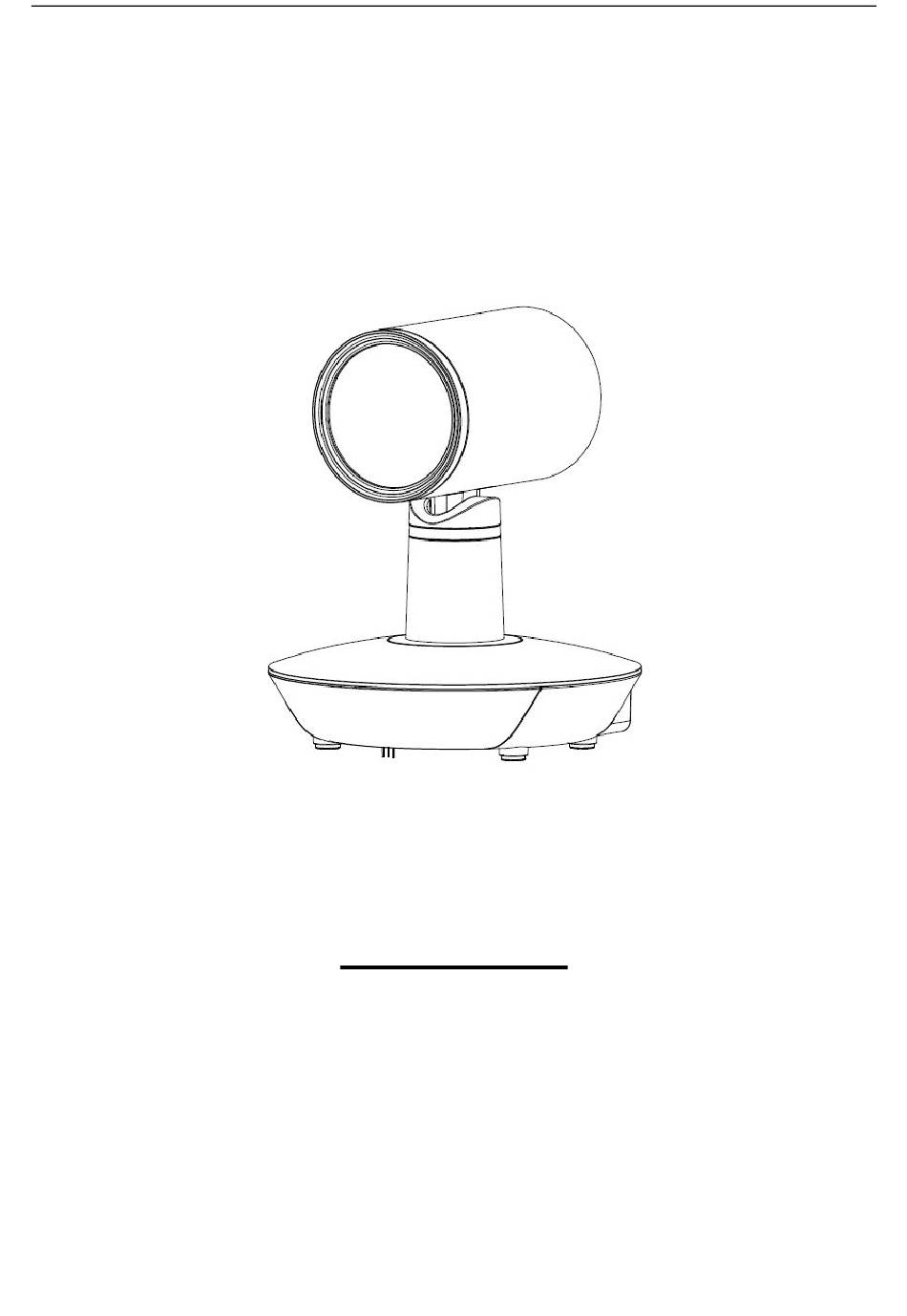

- Page 1 HD E-PTZ Video Camera User Manual （English）...
- Page 2 Preface: Thanks for using our HD color video conference camera. This manual introduces the function installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Warning This product can be only used in specified range in order to avoid any damage or danger; ●Don’t expose the camera to rain or moisture place ●Don’t remove the cover to reduce the risk of electric shock.
-
Page 3: Table Of Contents
【Contents】 NOTES ..................3 ACCESSORIES ................3 FAST INSTALLATION ..............4 CAMERA HIGHLIGHTS ..............5 CAMERA SPECIFICATIONS ............5 CAMERA INTERFACE EXPLANATION ..........6 DIMENSIONS ................6 REMOTE CONTROLLER EXPLANATION ..........8 RS-232C INTERFACE ..............10 MENU SETTING ................. 16... -
Page 4: Notes
Notes Electric Safety Installation and operation must accord with electric safety standards. Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is ±12V; the max electrical current is 2A. Polarity of the power supply as the following drawing Install Carefully Never move the camera by seizing the camera head. - Page 5 UV500-A9-H Model UV500-A9-U3 Model 2、Dial switch setting at the bottom. Two DIP switch is set to OFF，ie, choose normal working mode .
-
Page 6: Camera Highlights
UV500-A9-H SW2-2 SW2- SW2-3 SW2-4 SW2-5 SW2-6 Explanation Undefined Updating mode Debugging mode Working mode UV500-A9-U3 SW2-2 SW2- SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8 Explanation Undefined Updating mode Debugging mode Working mode Undefined Undefined USB3.0 programming mode USB3.0working mode 3.When the camera is power-on and begin initialize, front panel lights lit in red-yellow-green order cycle, until the front panel indicator light on to green fixedly, the initiation is completed.(Note: If the power-on mode is open and saved preset position 0 or 1, then the camera will go to preset 0 or 1 if no operation within 12 secs after power on) -
Page 7: Camera Specifications
Camera Specifications: video format : 1080P30 Video Output Interface : USB3.0(UV500-A9-U3) or HD-SDI and HDMI(UV500-A9-H) Image Sensor : SONY IMX117CQT-D Lens: 2.46 mm ±5%，F2.2±5％, angle of view: 106.2° Mechanism (Manual Rotation): ±90°for pan rotation, and -25°~+25°for tilt rotation, ... - Page 8 UV500-A9-U3 model 1、 Camera lens 2、 Camera base 3、 Working status light indicator 4、Infrared receiver header 5、Tripod screw hole 6、Working mode selection switch 7、Installation hole 8、USB3.0 interface 9、RS232 control interface 10、DC12V Input Power Supply Jack 11、Power light indicator(red)
-
Page 9: Dimensions
Dimension:... -
Page 10: Remote Controller Explanation
Remote Controller Explanation: 0、Standby key After pressing the standby key, the camera will step into standby mode, while the front indicator light is off and sparks every 20sec.Press again, the camera will do self-checking again and back to home position. 1. - Page 11 Usage of IR Remote Controller Finishing initialization, it can receive and execute the IR commands. Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller. Key Instruction： 1、When a key-combination is required, do it in sequence. For example, “ 【*】+【#】+【F1】”means press“【*】”first and then press“【#】”...
- Page 12 Focus (far)： Press 【focus+】 key ( Valid only in manual focus mode) Focus (near)： Press 【focus-】key ( Valid only in manual focus mode) Auto Focus: unavailable Manual Focus: unavailable Press and hold the key, the action of focus continues and stops as soon as the key is released. 4.BLC Setting BLC ON / OFF : unavailable 5、Presets Setting / Cancel...
-
Page 13: Rs-232C Interface
Select the camera number to control. 8、Camera Remote Controller Address Setting 【*】+【＃】+【F1】：Camera Address No.1 【*】+【＃】+【F2】：Camera Address No.2 【*】+【＃】+【F3】：Camera Address No.3 【*】+【＃】+【F4】：Camera Address No.4 RS-232C Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD1 3.TXD 4.GND 4.DTR 5.RXD1 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC... - Page 14 COM Control In normal working mode, the camera is able to be controlled via RS-232C/RS485 command (VISCA IN) . The parameter of the RS232C/RS485 COM is as following : Baud Rate ：2400/4800/9600/115200 bit/s Start bit：1bit ; Data bit: 8bit ; Stop bit : 1bit;...
- Page 15 Command Function Command Packet Note Manual 8x 01 04 35 05 FF Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM_RGain Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain Reset 8x 01 04 04 00 FF...
- Page 16 Command Function Command Packet Note On/Off 8x 01 04 15 10 FF CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) IR_Receive 8x 01 06 08 02 FF IR(remote commander)receive ON/OFF 8x 01 06 08 03 FF IR_ReceiveRetur On/Off 8x 01 06 08 10 FF...
- Page 17 Part 3 Inquiry command Command Command Return packets Notes packets y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusModeInq...
- Page 18 Pelco-D protocol Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Zoom In 0xFF Address 0x00 0x20 0x00 0x00 Zoom Out 0xFF Address 0x00 0x40 0x00 0x00 Set Preset 0xFF Address 0x00 0x03 0x00 Preset ID Clear Preset 0xFF Address 0x00 0x05 0x00 Preset ID...
-
Page 19: Menu Setting
Menu setting 1. MENU（main） In normal working mode, press 【 MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items. MAIN ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Ｌａｎｇｕａｇｅ／语言设置 EN （SYSTEM OPTION） （CAMERA OPTION） （PT OPTION） （V. FORMAT） （RESET） （HELP）... - Page 20 ＡＲＭ VER./ＦＰＧＡ VER/CAM VER: version information,it will upgrade synchronously with software. Model: internal identified code 3. CAMERA OPTION Move the pointer to the (CAMERA SET) in the Main Menu, click the【HOME】and enter CAMERA SET as follows, CAMERA SET ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ （EXPOSURE） （COLOR）...
- Page 21 COLOR SETTING Move the pointer to the (COLOR ) in the Main Menu, click the【HOME】and enter COLOR setting as follows: COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB.MODE AUTO R.GAIN B.GAIN SHARPNESS COLORGAIN BACK／ＭＥＮＵ WB MODE：Reset State: AUTO White balance mode setting: Auto/Manual R.GAIN：Reset State:Default Red gain setting：0~50（only available in Manual mode）...
- Page 22 PT SET ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MOUNT. MODE PRESET.MODE Jump BACK／ＭＥＮＵ MOUNT.MODE：Reset State: Up Mode options: UP/DOWN Preset Mode: Reset State: Jump Modes: Jump/Move 5. Video Format Move the pointer to the (VIDEO FORMAT) in the Main Menu, click the【HOME】and enter video format setting as follows, VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
- Page 23 HELP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ∧ ∨ Selet Menu ＜ ＞ ChangeSetting ＨＯＭＥ Enter ＭＥＮＵ Return BACK／ＭＥＮＵ Display menu operation method. 8. Exit In main menu, press the key【MENU】again will show the exit window as follows, EXIT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ SAVE？ Yes/No OK／ＨＯＭＥ BACK／ＭＥＮＵ SAVE？：to save settings：Yes、No. Note：please press【HOME】key to confirm;...
