2 Description of the system elements

2.1 Illustration of the system elements

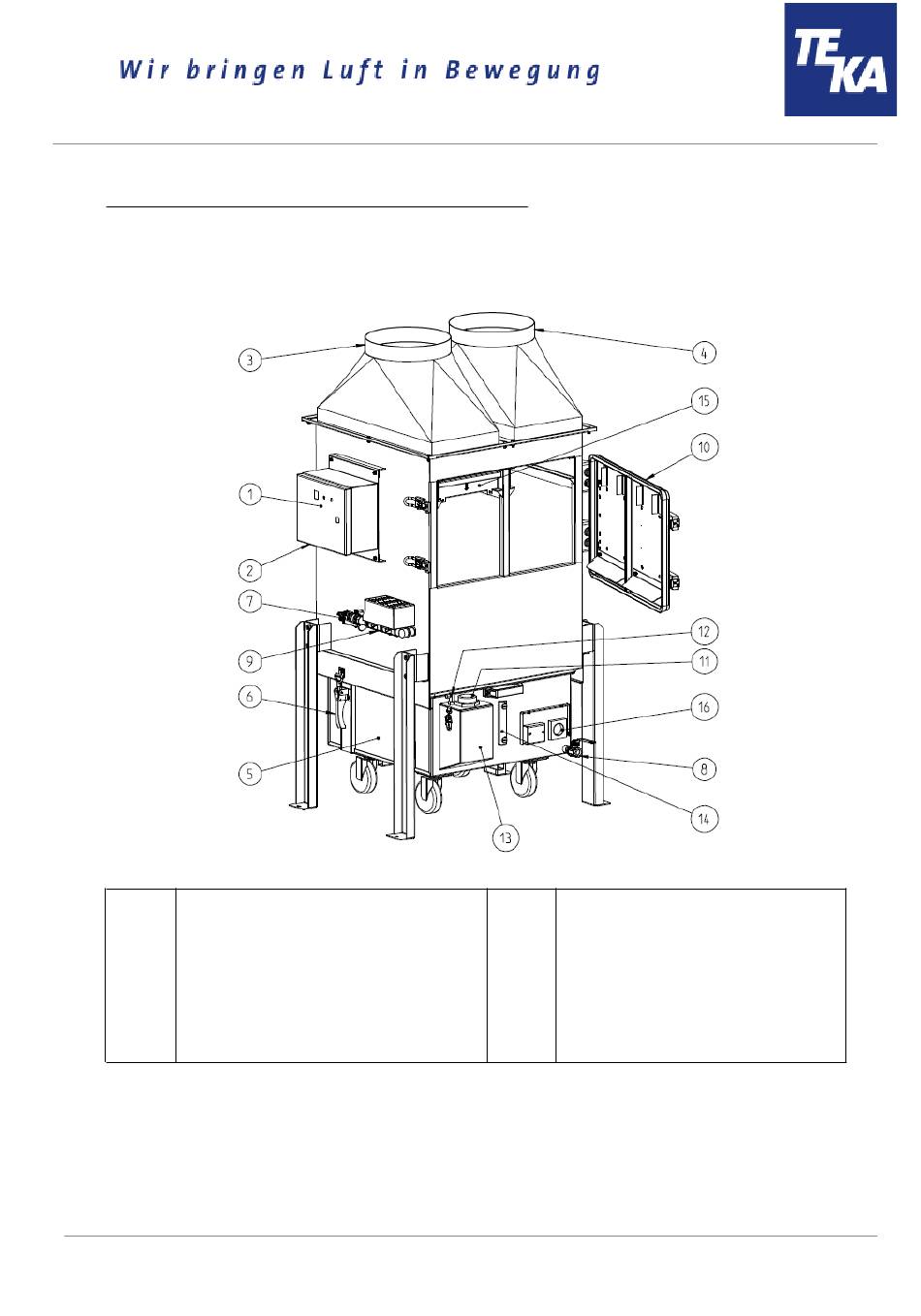

Installation example:
Pos.1 Operating panel of the control
Pos.2 Connection for mains cable
Pos.3 Exhaust air nozzle*
Pos.4 Suction nozzle* (air inlet side)
Pos.5 Dust collecting tank (filled with water)
Pos.6 Toggle lever
Pos.7 Ball valve ¾" for water connection
Pos.8 Wastewater connection ¾"
* = which is the suction nozzle and which the exhaust air nozzle is defined at the time of assembly (see
section "Connecting the suction line and exhaust air line").
BA_Funkenvorabscheider_171107_EN
Pos.9 Magnet valve
Pos.10 Service door
Pos.11 Filling level sensor 3-pin
Pos.12 Filling level sensor 1-pin
Pos.13 Housing for filling level sensor
Pos.14 Optical filling level indicator
Pos.15 Perforated sheet (exhaust air side)
Pos.16 Bar heater (option)
