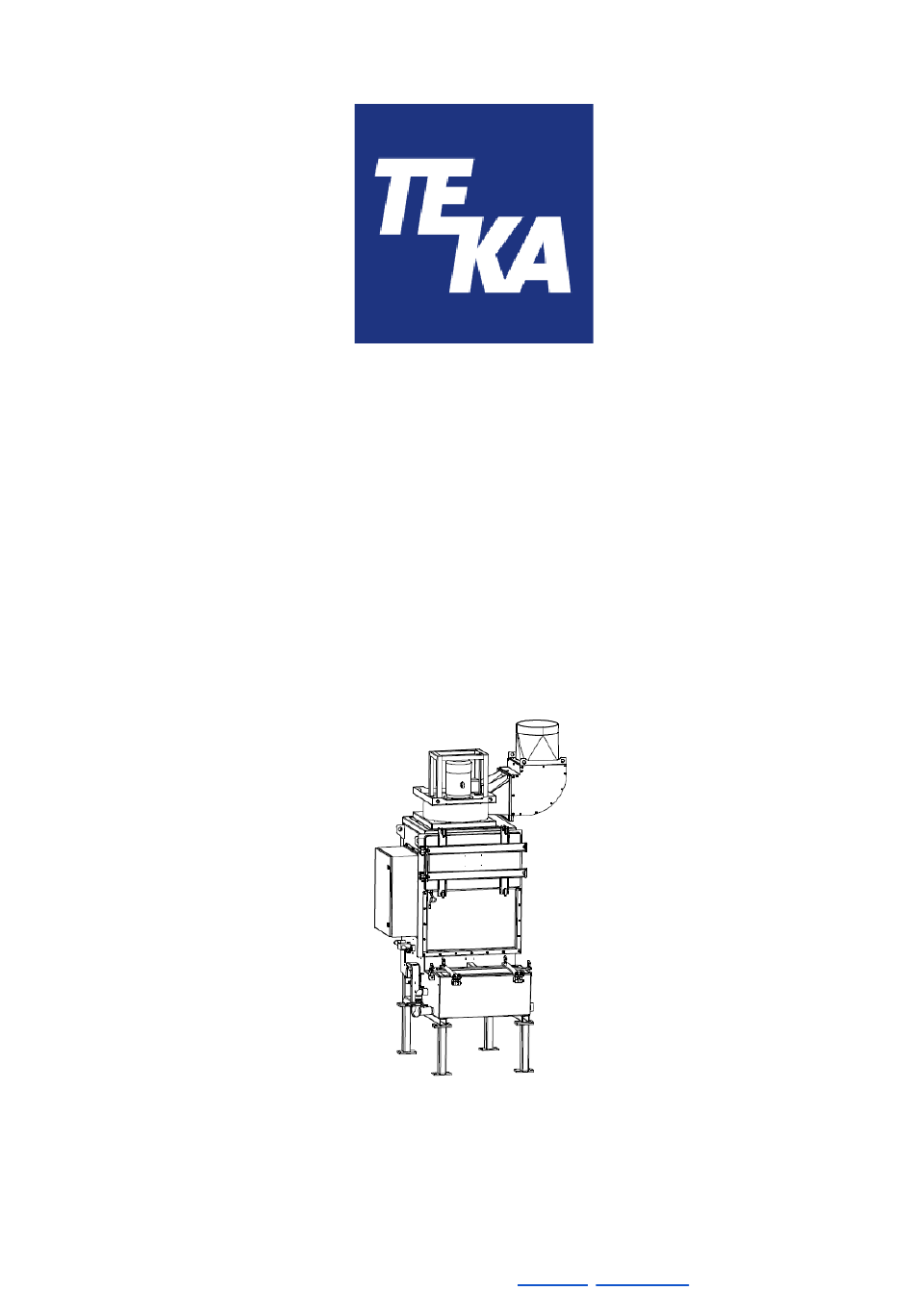

- Page 1 Operating instructions (Translation of the original operating instructions) Wet separator version “WNA-AL” TEKA Absaug- und Entsorgungstechnologie GmbH, Millenkamp 9, D-48653 Coesfeld, Tel.: +49 2541-84841-0, E-Mail: info@teka.eu, www.teka.eu...
-
Page 2: Table Of Contents
7.2. Cleaning/replacing: aluminium mesh filter and droplet separator 7.3. Cleaning the mud container 7.4. Maintenance of the magnet valves 8. ATEX operation 8.1. ATEX zoning for WNA-AL 8.2. Sources of ignition 8.2.1. Evaluating the risk of ignition in accordance with DIN EN 80079-36 9. Dismantling / Disposal BA_Nassabscheider_WNA-AL_211118_EN 18.11.2021... - Page 3 10. Diagnostics and troubleshooting 11. List of spare parts 12. Technical data 13. EC declaration of conformity 14. ATEX Annex to the EG Declaration of Conformity 15. Training protocol 16. Maintenance intervals 16.1. Usage-related maintenance 16.2. General maintenance 16.2.1. Visual inspection of the device 16.2.2.
-
Page 4: General
1. General Congratulations on purchasing the product from TEKA. Our engineers ensure that our devices reflect the state of the art through continuous development. Nevertheless, misuse or misconduct can endanger your safety. Please observe the following for a successful use of the device: Only authorised and instructed personnel can carry out transport, operation, maintenance and repair of the device. -
Page 5: Description Of The System Elements
2. Description of the system elements 2.1. Illustration of the system elements Installation example: Z.Nr. 19072709 Pos.1 Pos.7 Cleaning flap Pos.2 Suction nozzle Pos.8 Magnet valve Pos.3 Exhaust air nozzle Pos.9 Service door Pos.4 Silencer Pos.10 Aluminium mesh filter Pos.5 Ball valve ¾“... -
Page 6: Intended Use
As the accumulation of aluminium grinding dust produces a potential risk of explosion, the interior of the WNA-AL protected against sparking due to the explosion-proof engine and the grounded internal parts. The operator has to ensure that in the environment of the unit, such accumulations are not produced, e.g. -
Page 7: General Safety Instructions
3.2. General safety instructions WARNING Dangers arising from improper use / unauthorised operations. The operator must ensure that their authorised personnel are familiar with all the safety indications in this manual in advance. The operator is responsible for ensuring that all work is carried out by authorised and qualified personnel. - Page 8 ● First the filter unit as delivered must be transported to its destination. Then lift the filter unit off the pallet. Therefore use the lifting rings (B). Use appropriate lifting tools (forklift truck, transport crane,...) with a sufficient minimum load-carrying capacity. The filter unit must be secured against tilting and slipping when it is moved, lifted or put down.
-
Page 9: Commissioning
5. Commissioning WARNING Dangers arising from a defective condition of the unit. Make sure that the measures described in this chapter are completed before the commissioning of the unit. All doors of the unit must be closed and all necessary connections must be attached before turning the unit on. -
Page 10: Connecting The Suction Line And Exhaust Air Line
Only operate the system if the necessary suction line is fitted. The suction line must be dimensioned according to the application. If this has not already been carried out by TEKA, a suitably qualified employee must be consulted. If the suction line includes extraction elements (e.g. -
Page 11: Electrical Connection
According to the temperature and the relative air humidity of the extracted air, the exhaust air can also be moisture. In every case, the exhaust air has to be returned outside so that the work-ing space is not too highly moisture which can lead to the formation of condensate. 5.2. -
Page 12: Water Supply / Water Quality
5.3. Water supply / water quality Due to the moistening of the outlet air, the water is little by little extracted from the filter unit. That is why water must be regularly be refilled. It is ensured by the automatic monitoring of the water level and the automatic refilling through the electrovalve. -
Page 13: Additive: Corrosion Protection "Hebro®Protect 95-103" (Optional)
5.3.1. Additive: corrosion protection "hebro®protect 95-103" (optional) A corrosion-protective agent should be added to the water in order to prevent the formation of rust, especially in case of separation of acidly reacting substances. This is primarily required when separating metal dust and scale dust. If you ordered a corrosion-protective agent when ordering the unit, add it to the water when commissioning the unit. -
Page 14: Operating The System
6. Operating the system 6.1. Explanation of the operating elements Control functions, setting options for programs, menu navigation, error messages, etc. are described in the enclosed operating manual of the unit control. There is also an explanation of the elements of the control panel. CAUTION Possibility of hazardous dust accumulation. -
Page 15: Maintenance
7. Maintenance In accordance with national regulations, the operator is obliged to carry out repeat and functional tests. Unless otherwise specified by national regulations, we recommend regular visual inspections and functional tests of the device as described in the chapter “Maintenance intervals”. You find the chapter “Maintenance intervals”... -
Page 16: Cleaning/Replacing: Aluminium Mesh Filter And Droplet Separator
7.2. Cleaning/replacing: aluminium mesh filter and droplet separator ● Open the service door (see chapter 2.1). ● Detach the grounding cable of the mesh filter and the mist eliminator (see chapter 2.1) from the housing wall. Therefore detach the protective grid, if necessary (see chapter 2.1). ●... -
Page 17: Maintenance Of The Magnet Valves
7.4. Maintenance of the magnet valves The magnet valves (see chapter 2.1) must be regularly checked for their proper functioning. ● Set the wet separator to maintenance condition. For that purpose the power supply for the control must be maintained, but the fan must be switched off. The door of the control housing must be opened. -
Page 18: Atex Operation
8. ATEX operation The following ATEX zoning and ignition source analysis is applied to the filter unit. 8.1. ATEX zoning for WNA-AL Area Ex zone Reason/Cause Dusts Gases, vapours, mist Installation location of No Zone Installation in areas at risk of explosion not filter unit, spark permitted. -
Page 19: Sources Of Ignition
Blower line No Zone Penetration of dust is reliably excluded Zone 2 Emission of hydrogen cannot be definitively excluded. 8.2. Sources of ignition If the operator is not able to reliably exclude the possibility of the presence of effective sources of ignition, such as a) flames and hot gases b) mechanically generated sparks... -
Page 20: Dismantling / Disposal
A recommissioning of the device must only occur if it is ensured that the system is functionally equivalent to the original state. Repairs may only be carried out by TEKA personnel or, after consultation with TEKA GmbH, by the personnel authorised by the operator. - Page 21 The motor rotates in the wrong The rotating field of mains direction. connection point must be changed. Suction line contracted. Check and fix. Exhaust line contracted. Check and fix. Maybe throttle valves are used in the Adjust throttle valves. suction line. The system is very noisy.
-
Page 22: List Of Spare Parts
11. List of spare parts Filter element Article no. Aluminium mesh filter: (2 pieces of these filter elements are required for the device) WNA 1500 200351500 WNA 2000 / WNA 3000 / WNA 3500 200353500 WNA 5000 200355000 WNA 7500 200357500 WNA 9000 200359000... -
Page 23: Technical Data
12. Technical data Version 1500 2000 3000 3500 5000 7500 9000 Supply voltage Frequency Type of current Current intake 13,8 22,0 Air flow volume m³/h 1500 2000 2400 2900 5000 6500 8000 (possible operation point) Negative pressure 2400 2400 3000 3200 2600 2700... -
Page 24: Ec Declaration Of Conformity
Tel.:+49 2541-84841-0 E-Mail: info@teka.eu Internet: www.teka.eu Designation of the device: TEKA wet separator WNA-AL We hereby declare under our sole responsibility that the product mentioned above, from the serial number A19400010011001 resp. P44000010011001 on, conforms to the following directives: Machinery Directive:... -
Page 25: Atex Annex To The Eg Declaration Of Conformity
14. ATEX Annex to the EG Declaration of Conformity We, TEKA Absaug und Entsorgungstechnologie GmbH, declare that the machine/system/components designated below complies(comply) with the relevant requirements set out in ATEX directive 2014/34/EU , regulation GefStoffV (German ordinance on hazardous substances), and the German ProdSG legislation (law on product safety) on devices and protective systems intended for use in areas at risk of explosion. -
Page 26: Training Protocol
15. Training protocol Designation of the device: TEKA wet separator WNA-AL (This form can be used by the operator to document the training of the employees. Training should be performed by authorized personnel only. Refer to the instructions in Chapter "Safety Instructions") -
Page 27: Maintenance Intervals
Maintenance work must always be documented by means of a protocol. The approach of the maintenance measures is described in chapter "Maintenance". Maintenance interval Maintenance work Chapter recommended by TEKA determined by the operator Cleaning the aluminium mesh filter weekly and the droplet separator... -
Page 28: Visual Inspection Of The Device
16.2.1. Visual inspection of the device Visual inspection: Observation that there are no visible safety-related defects. WARNING Danger arising from the ready to operate condition of the device. Follow the procedure as described in the chapter “Set to maintenance state”. The following steps must be carried out in the course of the visual inspection: ●... -
Page 29: Functional Test Of The Device
16.2.3. Functional test of the device NOTICE Possible material damage due to faulty condition of the unit. Carry out a visual inspection before the functional test of the device as described in the previous chapters. The work as described in the chapter “Commissioning” must be finished. The following steps must be carried out in the course of the functional test: ●... - Page 30 Evaluation of the risk of ignition based on DIN EN ISO 80079-36:2016-12 PROCEDURE NUMBER --- (cross-project) TEKA Absaug- und Entsorgungstechnologie GmbH MANUFACTURER Millenkamp 9 D-48653 Coesfeld DEVICE TYPE WNA-AL DEVICE GROUP DEVICE DESCRIPTION The construction and intended use of the device are described in separate documentation (see Operating Instructions)
- Page 31 Evaluation of the risk of ignition based on DIN EN ISO 80079-36:2016-12 PROCEDURE NUMBER --- (cross-project) TEKA Absaug- und Entsorgungstechnologie GmbH MANUFACTURER Millenkamp 9 D-48653 Coesfeld DEVICE TYPE WNA-AL DEVICE GROUP DEVICE DESCRIPTION The construction and intended use of the device are described in separate documentation (see Operating Instructions)
- Page 32 Evaluation of the risk of ignition based on DIN EN ISO 80079-36:2016-12 PROCEDURE NUMBER --- (cross-project) TEKA Absaug- und Entsorgungstechnologie GmbH MANUFACTURER Millenkamp 9 D-48653 Coesfeld DEVICE TYPE WNA-AL DEVICE GROUP DEVICE DESCRIPTION The construction and intended use of the device are described in separate documentation (see Operating Instructions)
