Description Of The System Elements; Illustration Of The System Elements - Teka Caremaster 1 IFA Operating Instructions Manual

2 Description of the system elements

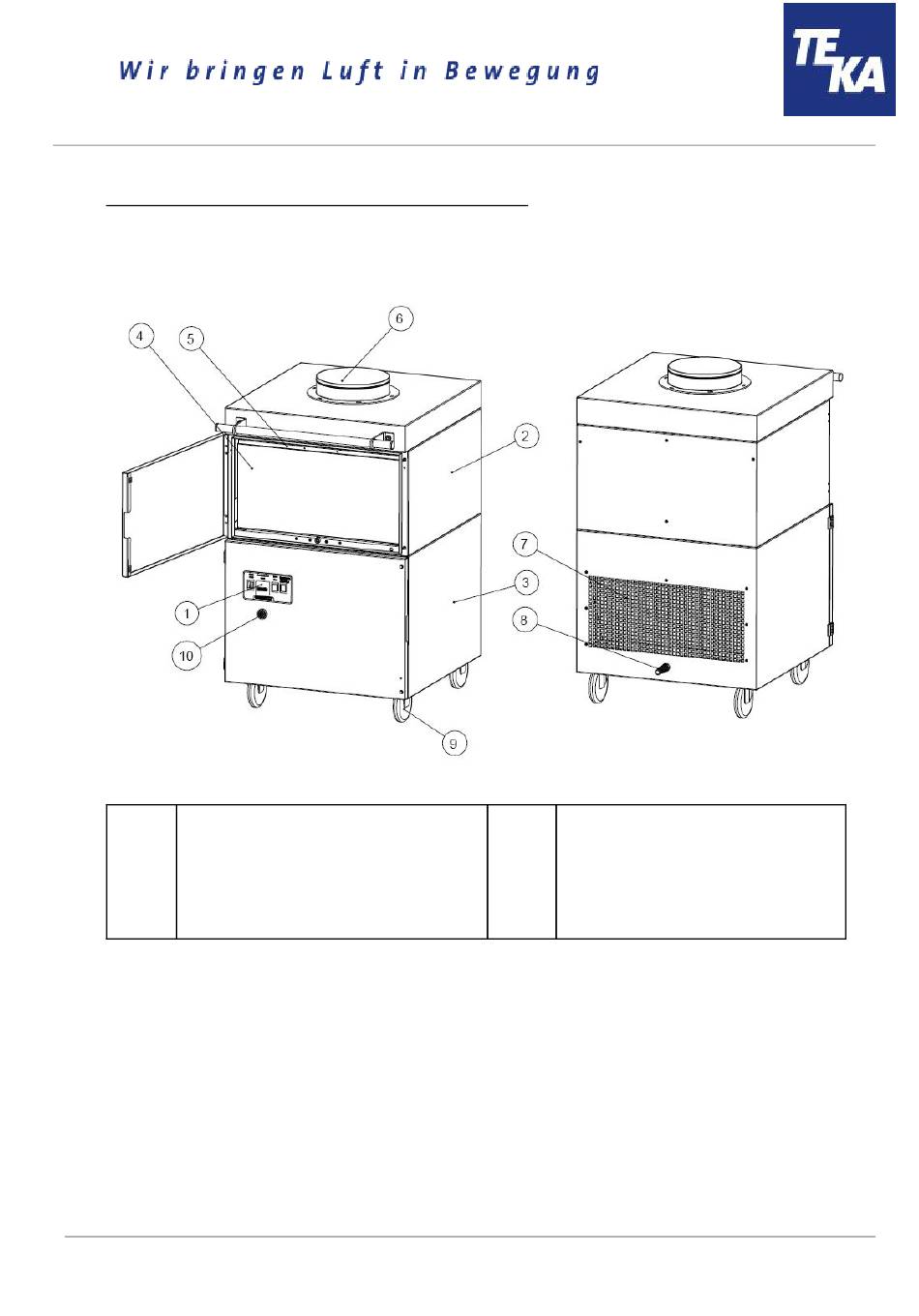

2.1 Illustration of the system elements

Pos.1 Operating panel of the control
Pos.2 Particle filter housing
Pos.3 Fan housing
Pos.4 Particle filter
Pos.5 Prefilter mat (into guide frame)
BA_Caremaster-1-und-2_IFA_170831 _EN
Pos.6 Suction nozzle (Caremaster 1: 1x,
Caremaster 2: 2x)
Pos.7 Exhaust grille
Pos.8 Mains cable with plug
Pos.9 Swivel castor
Pos.10 Signal horn
