6 Operating the system

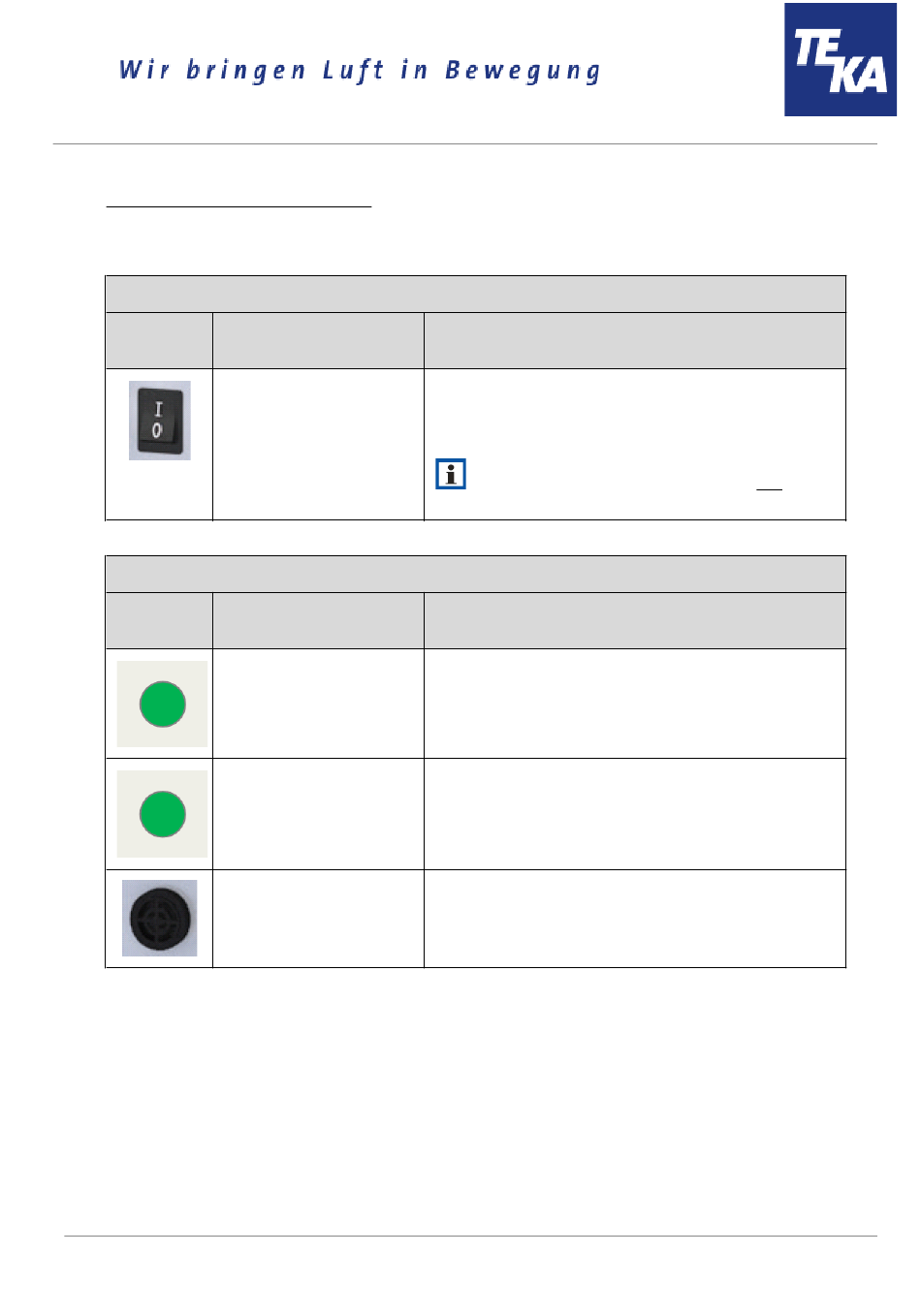

6.1 Explanation of the operating elements

Representa Designation
tion
ON-OFF-switch
Representa Designation
tion
"Betrieb / Operation"
"Befüllen / Filling"
Signal horn

6.2 Functioning of the control system

After switching on the power at a level below the maximum nominal level, the normally open contact of
the level monitoring relay goes into the operating position, the magnet valve for the filling of the system
is opened and the filling process is started. When reaching the maximum nominal level and after the
expiry of the overrun time the relay is switched off and the magnet valve is closed. If the level is below
the minimum nominal level, the relay goes on again and remains engaged till the maximum nominal
level is reached.
BA_Funkenvorabscheider_171107_EN
Operating elements for the device control
Description / function
By means of this switch, the device is switched on and
off. The control is now ready for operation and begins
automatically with the level control of the dust collecting
tank.
disconnected from the power supply.
Operating elements for status and error messages
Description / function
The light indicator operation gives an optical response
when the control is supplied with the mains voltage.
The light indicator filling gives an optical response when
the magnet valve is opened for the filling of the system.
The light indicator extinguishes when the maximum
nominal level is reached.
Honking signals that the unit signals an error.
When the device is switched off, it is not
11 11.01.2022
