Summary of Contents for Häfele 538.66.507
- Page 1 User manual Scan Code For Warranty Scan Code For Warranty Registration & Policy Registration & Policy BUILT-IN GAS HOB Products Applied: 538.66.507, 538.66.477...
-
Page 2: Table Of Contents
TECHNICAL ASSISTANCE AND SPARE PARTS Before this appliance left the factory it was tested and set (see the specific adjustment sticker data plate, put on the bottom of the appliance, to check gas adjustment) by specialized, expert personnel to guarantee the best functioning results. Attention: Qualified personnel must do any subsequent repairs or adjustments that may be necessary with the maximum care and attention. -
Page 3: Important Notes And Precautions For Use
1. IMPORTANT NOTES AND PRECAUTIONS FOR USE You have purchased one of our products for which we thank you. We are confident that this new appliance, modern, functional and practical, made with top quality materials, will meet all your demands . This new appliance is easy to use but before installing and using it, it is important to read this Instruction Manual through carefully. -
Page 4: Description Of The Appliance

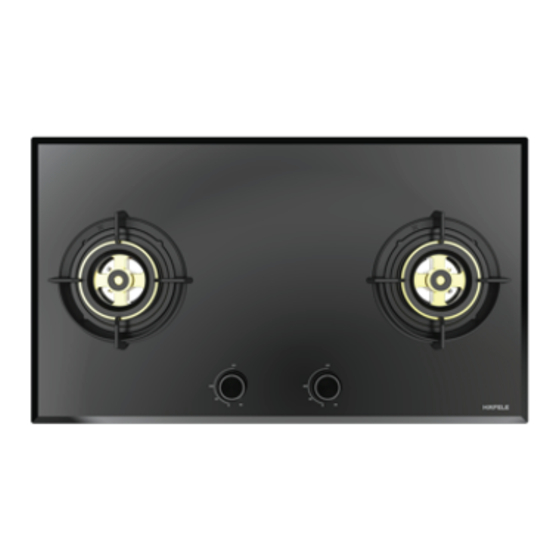

by eliminating those parts that could be a hazard source for children when they are playing, for example: =>The power cable 2. DESCRIPTION OF THE APPLIANCE 1.Burner 2.Glass top 3.Control knob 4. Pan support the burners’ diameterl WARNING: 3. INSTRUCTIONS FOR THE USER: USE PRESENTATION The burners are graduated in their size and rating to provide the exact heat required for every style of cooking. -
Page 5: Gas Burners
GENERAL NOTES ON SAFETY - When the burners or plates are in use do not leave them unattended and make sure there are no small children in the vicinity. Check that pan handles are positioned correctly and always keep an eye on the pan whenever oils or fats are used as they are easily inflammable. - Do not use spray cans near the appliance when it is in use. -
Page 6: Instructions For The User: Cleaning And Maintenance
Automatic electrical ignition (only certain versions, see fig. 1, ref. Ac) The command of lighting is integrated in the control knob. Press and turn anticlockwise the Matches can be used to light the burners in a blackout. Lighting of burners equipped with safety thermocouples (only certain ver- sions, see fig. -
Page 7: What To Do If
Never clean when the top and components are still warm. Do not use metal or abrasive pads, abrasive powders or corrosive spray products. Never leave vinegar, coffee, milk, salty water, lemon or tomato juice for any length of time on the surfaces. WARNING: - Check that the heads burners and the relative burner caps, are correctly positioned in their housings (see fig. -
Page 8: Installation
INSTALLATION VENTILATING THE ROOMS The room where the appliance is installed, must be permanently ventilated so as to guarantee correct functioning according to the National Rules in force. The quantity of air needed is that re- quired for a regular combustion of the gas and for the ventilation of the room and whose volume in the walls (that go through to the outside) of the room to be ventilated with a minimum cross for appliance fitted with the Flame Safety Device (FSD) on each burner (see fig. - Page 9 UNPACKING THE APPLIANCE Once the outer wrapping and the inner wrappings of the various parts have been removed, check and make sure that the appliance is in perfect condition. If you have any doubts do not use the appliance and call your nearest Assistance Centre. Some parts are mounted on the appliance and protected by a plastic film.
-
Page 10: Gas Connection
GAS CONNECTION Before to connect the appliance to the gas network, check that the adjustment sticker data plate, put on the bottom of the appliance, correspond to the available one in the gas network. The adjustment sticker data plate, gives all the appliance’s setting conditions as: gas type and gas operating pressures. - Page 11 Quét Mã Để Đăng Ký Bảo Hành & Chính Sách Bảo Hành PRODUCT NAME - SERIES NO.:...
- Page 12 Chú ý: TRÌNH BÀY...
- Page 15 HÌNH 1 HÌNH 2...
- Page 16 sau: HÌNH 3 Nhanh trung Ø...
- Page 19 HÌNH 7 theo mép kính HÌNH 9...
- Page 20 kín. ray.
- Page 21 Häfele VN LLC. Phone: (+84 28) 39 113 113 Email: info@hafele.com.vn...
