Clarity Walker W-1000 User Manual

Clarity co. user guide telephone w-1000.
Hide thumbs
The telephone that hears what you've been missing.
11/15/99, 9:37 PM

   Also See for Clarity Walker W-1000

   Related Manuals for Clarity Walker W-1000

   Summary of Contents for Clarity Walker W-1000

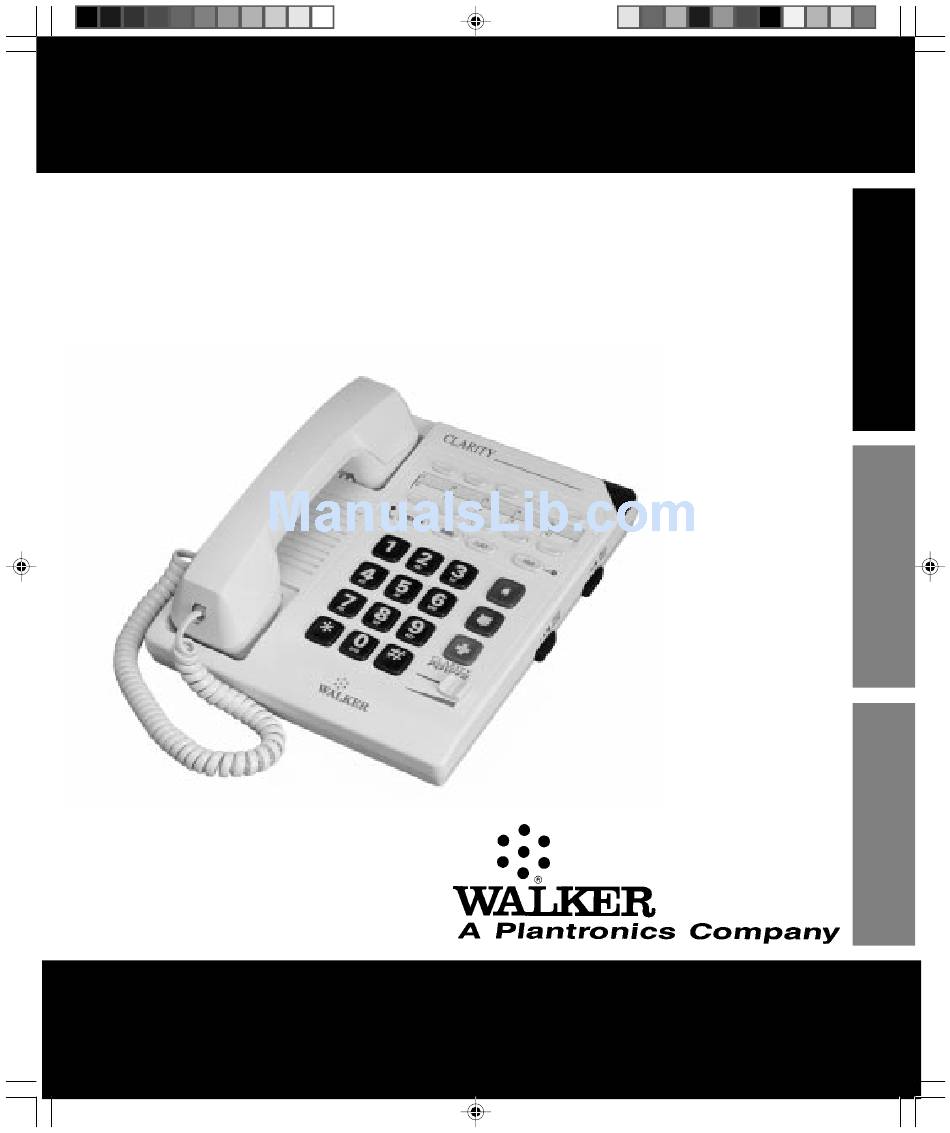

  • Page 1: User Guide

    Clarity W1000_User_Guide The telephone that hears what you’ve been missing. W-1000 User Guide ® 11/15/99, 9:37 PM...

  • Page 2: Table Of Contents

    SAFETY INSTRUCTIONS INSTALLATION FEATURES: • Clarity Control® • Ringer Volume Control • Visual Ringer • Ringer Pitch Control • Tone / Pulse Selection • Last Number Redial • Flash • Hold • Programmable Memory • Cascade Dialing OPERATION: • To Place or Receive a Call •...

  • Page 3: Safety Instructions, Save These Instructions

    Read and Understand All Instructions 1.Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the line has been disconnected at the network interface.

  • Page 4

    • Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use this telephone to report a gas leak in the vicinity of the leak. W-1000 11/15/99, 9:37 PM...

  • Page 5

    The Load Number (LN) assigned to each terminal device denotes the percentage of total load to be connected to a telephone loop which is used by the device to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the total of the load numbers of all the devices does not exceed 100.

  • Page 6

    Unpacking the Walker Clarity® Inside you will find the following items: A. Handset B. Handset Line Cord (Coiled, 10 ft.) C. Base Unit D. Phone Line Cord (long, flat) E. Desk/Wall-Mounting Bracket F. This User’s Guide Carefully remove all of the contents from the package.

  • Page 7

    Cord Here W-1000 W1000_User_Guide Installation Connecting the Clarity Phone: To install as a Desk Unit: • Plug one end of the telephone line cord (long, flat) into the back of the Walker Clarity. • Plug the other end of the telephone line cord into the wall jack.

  • Page 8

    W1000_User_Guide Installation Continued • Attach the wall-mounting bracket to Back of the bottom of the Walker Clarity. It Phone snaps into place. The cord should run underneath the wall mounting bracket. • Plug one end of the telephone line cord (long, flat) into the back of the Walker Clarity.

  • Page 9: Features

    Clarity Power Control® The Clarity Power Control allows you to control the clarity of your phone conversations. It will let you hear clearly phone calls that are normally difficult to understand. The amplification will be...

  • Page 10

    To Increase Clarity Power: Slide the button marked Clarity Power toward the right. To Decrease Clarity Power: Slide the button toward the left. The extreme left is the level of a normal telephone conversation. Important: Reset the Clarity Power Control to zero after every call to protect other users of the telephone.

  • Page 11: Ringer Volume Control, Visual Ringer, Ringer Pitch Control, Tone / Pulse Selection

    (the smallest dot) when you start using the phone. Tone/Pulse Selection The Clarity Phone can be used as either a TONE (touch dial) or PULSE (rotary dial) phone. Tone dialing is required for using special phone services such as long distance calling.

  • Page 12: Last Number Redial

    * * * * * * Important: You must have tone signaling service to use the TONE feature on the Walker Clarity. If in doubt, contact your local telephone company. To Set the TONE/PULSE Switch: 1. Move the switch towards the correct setting.

  • Page 13: Flash, Hold

    Hold This advanced feature on your Walker Clarity allows you to put a call on hold, hang up and switch to another extension or have a private conversation that you don’t want the person on the other end of the phone to hear.

  • Page 14: Clarity Control, To Place Or Receive A Call

    To Place or Receive a Call: 1. Adjust the Clarity Control to its lowest setting (zero). 2. Pick up the handset and listen for the caller’s voice or a dial tone. Watch the...

  • Page 15: Programming Emergency Numbers

    Doctor or W-1000 W1000_User_Guide Memory FIRE HOSPITAL Hospital). The Walker Clarity will let you store up to 15 digits with each button. 2. Select the correct TONE/PULSE setting you normally dial in. (Remember, some long distance services require TONE dialing.)

  • Page 16

    911. You must do this yourself. Use a preprinted 911 label and paste it over the button you program for 911. Use other write on labels to identify any numbers you wish to program into the two remaining emergency buttons. W-1000...

  • Page 17: Programming Frequently-dialed Numbers

    Programming Frequently-Dialed Numbers The Walker Clarity will allow you to program up to ten (10) frequently-dialed phone numbers for future use. By doing so, you will only have to press one button to call numbers that you normally dial often (e.g. Friends, Relatives, etc.) The need to keep these...

  • Page 18

    1. Pick up the handset and listen for a dial tone. 2. Press the appropriate “Memory” button. 3. The number will be dialed automatically. To change a Frequently-Dialed number, simply follow the normal programming steps. 11/15/99, 9:38 PM Number: W-1000...

  • Page 19: Cascade Dialing, Care

    Cascade Dialing Your Walker Clarity will store up to 15 digits per memory location in tone mode, and 16 digits in pulse mode. On some occasions you may wish to program a number that is longer than 15 digits, such as international calls.

  • Page 20: Trouble-shooting Guide

    Page 20 W1000_User_Guide Programming Problems • Can’t Store Numbers Into Memory —Your new Clarity phone must charge for two (2) hours before you can program any numbers into it. • Loss Of Numbers Programmed Into Memory —Your Clarity phone will maintain its memory for up to 12 hours during a power loss.

  • Page 21: Troubleshooting, Access Codes

    When your call is complete move the switch back to PULSE so you are ready to make your next call. Static On Line • Interference From Household Appliances —Your Clarity phone may be located near a touch lamp, microwave or W-1000 W1000_User_Guide Troubleshooting Continued refrigerator which may cause interfer- ence.

  • Page 22

    Compatibility • Clarity Phones Are Compatible With Digital PBX Systems —If a standard, single line phone works, your clarity phone should also work. Page 22 W1000_User_Guide Troubleshooting Continued • Clarity Phones Are Not Compatible With Key Systems Or AT&T PBX...

  • Page 23

    * * * * * * Federal Communications Commission Your Walker Clarity® has been registered with the Federal Communications Commission (FCC). This product complies with standards of Part 68 of the FCC Rules. The FCC requires us to provide you with the following information: 1.

  • Page 24: Operation, Fcc Requirements, Limited Warranty

    Your Walker Clarity has been tested and found to meet the standard for a Class B computing device, as specified in Subpart J of Part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in residential installation.

  • Page 25

    W-1000 W1000_User_Guide Warranty* No responsibility is assumed for any special, incidental or consequential damages.

  • Page 26: Walker Warranty Service

    • Lack of performance due to incompatibility with the equipment of any particular telephone company. • Modifications to the Walker Clarity to make it compatible with any particular telephone company. • Damage or failure caused by modification or repair other than that done by Walker Equipment.

  • Page 27

    Out-of-Warranty Service If your Walker Clarity should fail to operate properly and the one year warranty has expired, you may send your phone to Walker Equipment for prompt repair. To do so, include a check or money order for $55 payable to Walker Equipment, along with a description of the phone’s problem and your name and address to:...

  • Page 28

    Page 28 W1000_User_Guide 4009 Cloud Springs Rd. Ringgold, GA 30736 1-800-552-3368 11/15/99, 9:39 PM W-1000...
