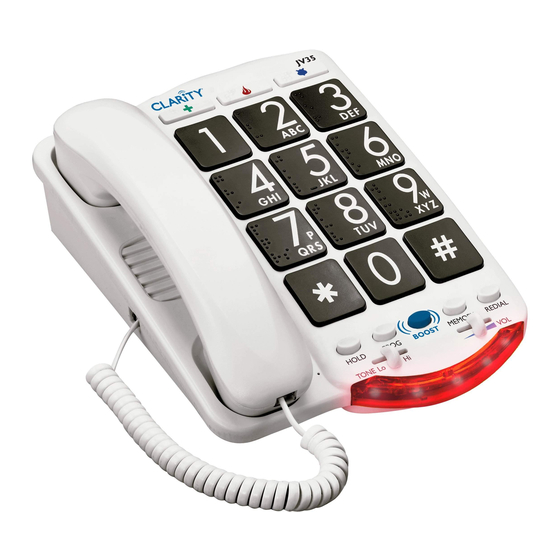

Clarity JV35 User Manual

The talking phone
Hide thumbs Also See for JV35:
Table of Contents

Advertisement

Quick Links

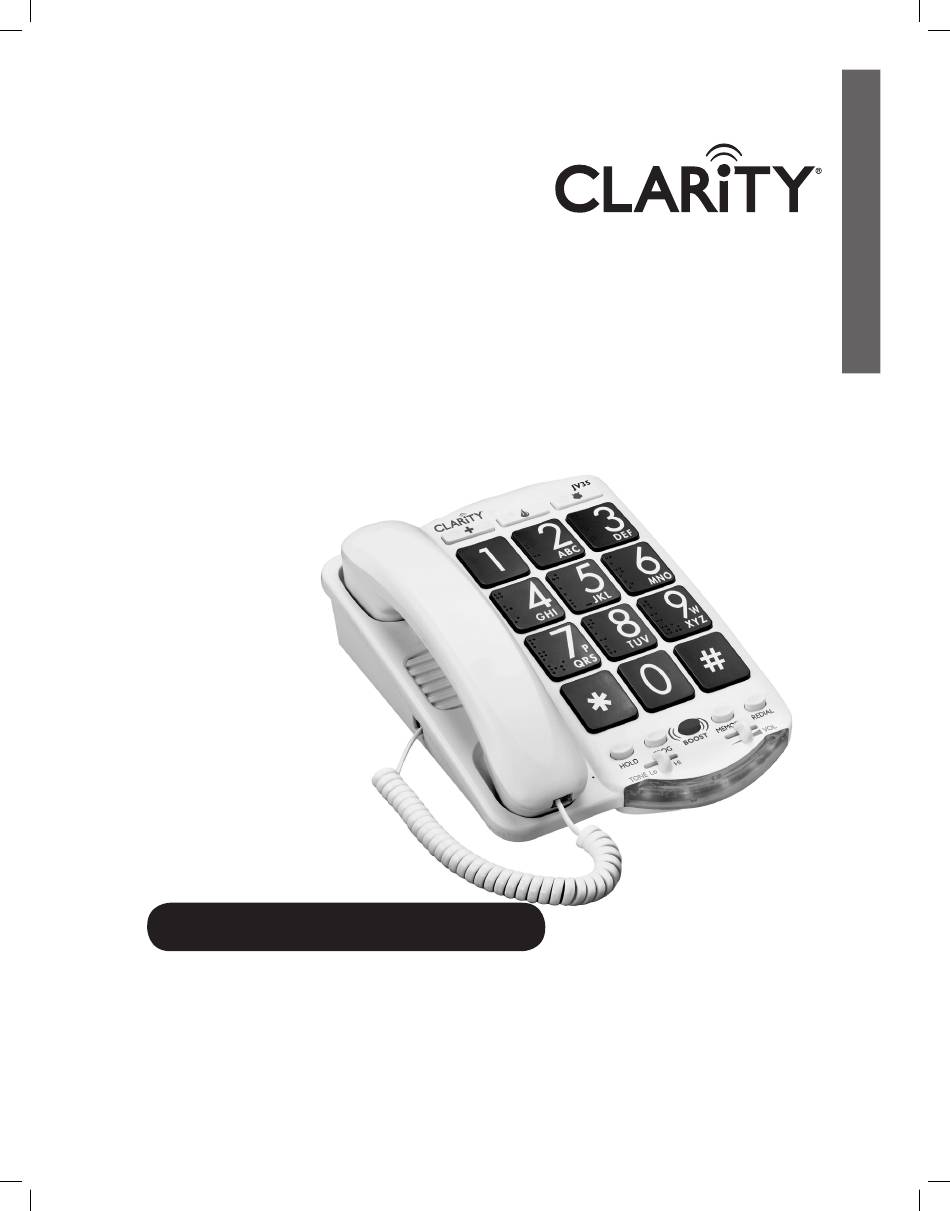

JV
JV35
The Talking Phone
User Guide
Clarity, a Division of Plantronics, Inc.
4289 Bonny Oaks Drive, Chattanooga, TN 37406
Tel: 800-426-3738 Fax: 800-325-8871
E-mail: claritycs@plantronics.com Website: www.clarityproducts.com
©2010 Clarity, a Division of Plantronics, Inc. All rights reserved. Amplifying
Your Life, Clarity, JV35, and The Talking Phone are trademarks or registered
trademarks of Plantronics, Inc.
Rev. E (03-10)
™
E
N
G
L
I
S
H

Advertisement

Table of Contents
loading

Related Manuals for Clarity JV35

Summary of Contents for Clarity JV35

  • Page 1 4289 Bonny Oaks Drive, Chattanooga, TN 37406 Tel: 800-426-3738 Fax: 800-325-8871 E-mail: claritycs@plantronics.com Website: www.clarityproducts.com ©2010 Clarity, a Division of Plantronics, Inc. All rights reserved. Amplifying Your Life, Clarity, JV35, and The Talking Phone are trademarks or registered trademarks of Plantronics, Inc. Rev. E (03-10)

  • Page 2: Table Of Contents

    Features Identification ........3 Installation A. Desk mounting .......... 4 B. Wall mounting .......... 4 C. Batteries ........... 5 Operating Your JV35 A. Dialing ............ 7 B. Making calls louder ........7 C. Adjusting the tone ........8 D. Ringer volume ........... 8 E.
  • Page 3 L. Recording Memory button identification announcements ....15 M. Recording Number button announcements ........17 N. Selecting Number button announcements ........18 O. Direct audio connection ......19 P. Cochlear implant adapter cord ....20 Troubleshooting Chart ........ 22 Specifications ..........23...

  • Page 4: Important Safety Instructions

    Important Safety Instructions When using your telephone (other telephone equipment, than a cordless basic safety precautions type) during a should always be storm. There may followed to reduce the be a remote risk of risk of fire and electric electrical shock shock to persons, from lightning.
  • Page 5 Important Safety Instructions 8. Do not cover the power company. slots and openings 10. Do not place on this telephone. anything on the This telephone power cord. Install should never be the telephone where placed near or over no one will step or a radiator or heat trip on the cord.
  • Page 6 Important Safety Instructions on the telephone. B. If liquid has been 13. To reduce the risk of spilled into the electrical shock, do product; not take this phone C. If the telephone has apart. Opening or been exposed to removing covers may rain or water;...
  • Page 7 Important Safety Instructions damaged; telephone lines. F. If the telephone 19. Use only the power exhibits a distinct cord and batteries change in indicated in this performance. manual. Do not 15. Never install dispose of batteries telephone wiring in a fire. They may during a lightning explode.
  • Page 8 Important Safety Instructions network ADDITIONAL SAFETY protective operational NOTES FOR and safety CANADIAN USERS requirements. The The following items are Department does not included as part of the guarantee that the CS-03 Requirements. The equipment will operate to standard connecting the user’s satisfaction.
  • Page 9 Important Safety Instructions means of a certified Users should ensure for connector assembly their own protection that (telephone extension the electrical ground cord). The customer connections of the power should be aware that utility, telephone lines compliance with the and internal metallic above conditions may water pipe system, if not prevent degradation...
  • Page 10 Important Safety Instructions WARNING: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. The Ringer Equivalent Number is an indication of the maximum number of terminals allowed to be connected to a telephone interface.

  • Page 11: Introduction

    You must save your sales receipt as proof of purchase in the event that you need warranty NOTE: This User Guide service. applies to both the JV35 and JV35W telephone If you have any questions devices. about your JV35, please...

  • Page 12: Package Checklist

    Package Checklist JV35 HOLD PROG BOOST MEMORY REDIAL TONE Lo Handset Base Unit JV35 Telephone Line Cords USER Handset GUIDE Coil Cord Phone Base User Guide DC Adapter Plate Figure 1 - Package Components...

  • Page 13: Features Identification

    Features on the JV35 Ringer volume control switch Audio output jack AC adapter RINGER ANNOUNCEMENT AUDIO Announcement Lo Med Hi Tone Pulse Preset Prog Custom OUTPUT switch Tone/Pulse switch JV35 Emergency buttons Braille characters Raised letters for easy identification REDIAL button...

  • Page 14: Installation

    4. Lift the handset A. Desk Mounting and listen for a 1. Plug in the long dial tone. phone cord. 5. Your JV35 is 2. Plug the handset ready to use. cord into the telephone. B. Wall Mounting 1. Pull the handset...

  • Page 15: Batteries

    Push on C. Batteries the bottom of the Base Plate until it During a power snaps into place. outage, the JV35 will maintain full function if back-up batteries have been installed in advance. If batteries are not installed during a power outage, the Fig.
  • Page 16 Installation Insert 4 AA batteries here Press in here to open battery compartment Fig. 7 - Battery installation...

  • Page 17: Operating Your Jv35 A. Dialing

    Operating your JV35 B. Making Calls Louder A. Dialing 1. Press the BOOST Pick up the handset and button. A light in the dial like any other ring flasher shows telephone. As you dial, BOOST is on. the numbers you are...

  • Page 18: Adjusting The Tone

    Operating your JV35 Warning: Repeated you want the BOOST incremental exposure to function to always amplification levels remain on, slide the greater than 18dB may Boost Override switch be harmful to individuals on the back of the without hearing phone to ON, as disabilities.

  • Page 19: Ringer Volume

    D. Ringer Volume 2. To return to your call, pick up the handset. Adjust the RINGER control to suit your Note: When the JV35 is hearing. on hold, if you pick up another phone that is on the same line, the JV35...

  • Page 20: Last Number Redial

    Operating your JV35 your call on the other response. phone. 1. Lift the handset F. Last Number Redial and press the PROG button. Lift the handset and press the REDIAL button to dial the last HOLD PROG BOOST MEMORY REDIAL number you dialed.

  • Page 21: Dialing With An Emergency Button

    Operating your JV35 repeat this 3. Press PROG button process from step 1. again. H. Dialing With An 4. Press one of the Emergency Button Emergency buttons. 1. Lift the handset. JV35 2. Press one of the Emergency buttons. You will hear an Fig.
  • Page 22 Operating your JV35 Note: # and * keys are not available for HOLD PROG BOOST MEMORY REDIAL TONE Lo this function. 5. Hang up the Fig. 19 - PROG Button handset. 2. Enter the phone number as you 6. The number is now...

  • Page 23: Memory Dialing

    You will hear stored for that button will “Program Mode, be automatically dialed. Program Mode” followed by a “beep- K. Recording Emergency beep” sound. This Button Identification Announcements confirms the JV35 is ready to be The JV35 comes with programmed.
  • Page 24 Operating your JV35 4. After three seconds there will be a RINGER ANNOUNCEMENT AUDIO “beep” to tell you Lo Med Hi Tone Pulse Preset Prog Custom OUTPUT recording has Fig. 22 - Announcement stopped. Your Switch recording will be 3.Press the desired played back Emergency button.

  • Page 25: Recording Memory Button Identification Announcements

    Fig. 24 - Custom Mode, Program Announcement Mode” followed L. Recording Memory by a “beep-beep” Button Identification sound to confirm the Announcements JV35 is ready to be programmed. Factory pre-recorded announcements identify each memory button. You RINGER ANNOUNCEMENT AUDIO can erase these...
  • Page 26 Operating your JV35 3. Press the MEMORY immediately so button plus the you can check it, followed by a desired number “beep-beep” sound. buttons (0, 1, 2,etc.). After the “beep,” 5. Now you can record an repeat steps 3 and...

  • Page 27: Announcements

    Lo Med Hi Tone Pulse Preset Prog Custom OUTPUT Mode,” followed by Fig. 27 - Setting Custom a “beep-beep” sound Announcements to confirm the JV35 is ready to be M.Recording Number programmed. Button Announcements The JV35 also comes RINGER ANNOUNCEMENT AUDIO...

  • Page 28: Selecting Number Button Announcements

    Operating your JV35 6. When you are to one second long. finished recording, JV35 hang up the handset. 7. Slide the Fig. 29 - Keypad ANNOUNCEMENT Programming switch to the CUSTOM position. 4. After one second, Your announcements there will be a will be played when “beep”...

  • Page 29: Direct Audio Connection

    Operating your JV35 that were pre-recorded To turn off the voice at the factory, slide the announce feature, turn ANNOUNCEMENT the phone over and slide switch to PRESET. the “VOICE ANNOUNCE” switch to OFF. RINGER ANNOUNCEMENT AUDIO Lo Med Hi...

  • Page 30: Cochlear Implant Adapter Cord

    Operating your JV35 adapter cord is available from Plantronics that can be ANNOUNCEMENT AUDIO used to plug the JV35 Tone Pulse Preset Prog Custom OUTPUT directly into a speech processor. Fig. 34 - Audio Output Port Location Connecting the Speech...
  • Page 31 Operating your JV35 • Speak into the hand set when using the cochlear implant adapter cord. WARNING! During thunderstorms, avoid using telephones, as electric shock from lightning can occur.

  • Page 32: Troubleshooting Chart

    Troubleshooting Chart If any problem should CAUSE arise during operation of your JV35, go through CORRECTIVE PROBLEM the suggestions listed ACTION below. Should the Call cannot difficulty persist, contact be di aled, "Installation" Clarity or your authorized or is dialed section to dealer for assistance.

  • Page 33: Specifications

    Specifications - JV35 DECIBEL GAIN Maximum gain: 37dB at 3000Hz (Volume at Maximum setting and Tone at High setting) PHYSICAL DIMENSIONS Size: 9.5" x 7" x 3.25" Weight: 2.52 lbs. POWER AC Adapter 4 AA Alkaline nonrechargeable batteries (not included)
  • Page 34 4289 Bonny Oaks Drive Chattanooga, TN 37406 Tel: 800-426-3738 • Fax: 800-325-8871 E-mail: claritycs@plantronics.com Website: www.clarityproducts.com...
