Make Sure That You Have All Of The Required Endopilot Components. - Komet EndoPilot Step-By-Step Setup Manual

1

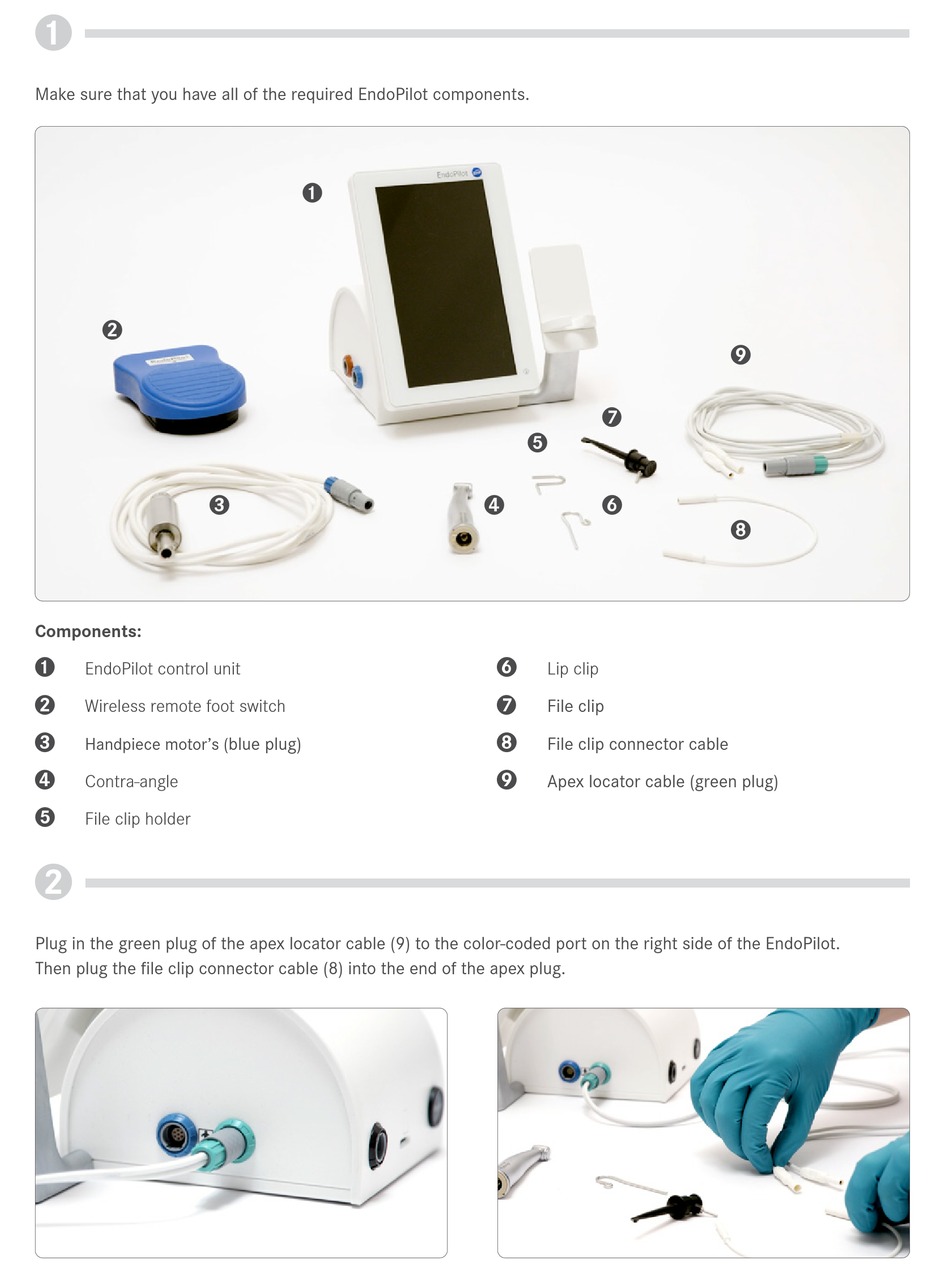

Make sure that you have all of the required EndoPilot components.

2
3
Components:
1
EndoPilot control unit
2
Wireless remote foot switch
3
Handpiece motor's (
4
Contra-angle
5
File clip holder
2
Plug in the green plug of the apex locator cable (9) to the color-coded port on the right side of the EndoPilot.
Then plug the file clip connector cable (8) into the end of the apex plug.
1
blue plug)
7
5
4 6
6
Lip clip
7
File clip
8
File clip connector cable
9
Apex locator cable (green plug)
9
8
