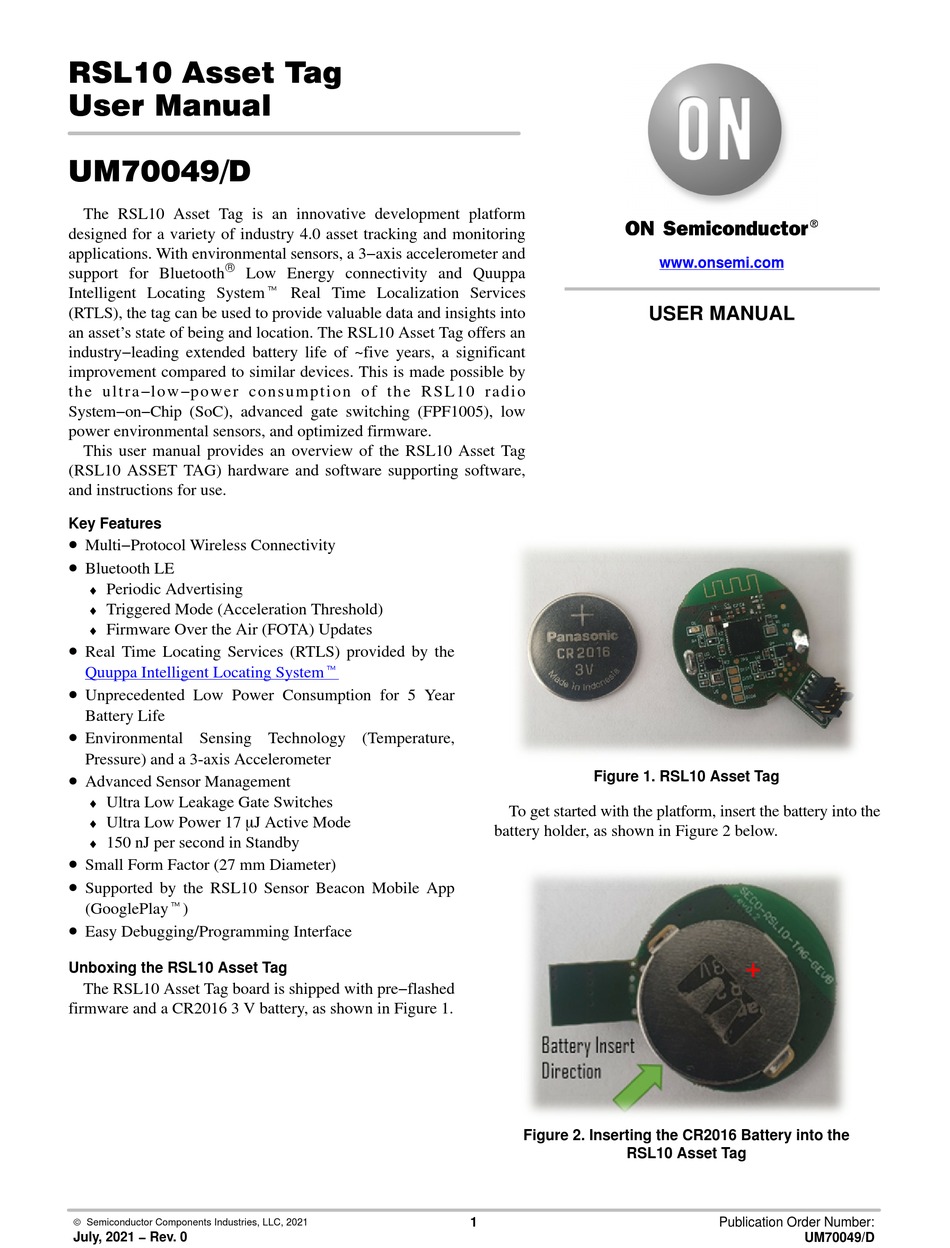

RSL10 Asset Tag
User Manual
UM70049/D
The RSL10 Asset Tag is an innovative development platform
designed for a variety of industry 4.0 asset tracking and monitoring
applications. With environmental sensors, a 3−axis accelerometer and
®
support for Bluetooth
Low Energy connectivity and Quuppa
Intelligent Locating Systemt Real Time Localization Services
(RTLS), the tag can be used to provide valuable data and insights into
an asset's state of being and location. The RSL10 Asset Tag offers an
industry−leading extended battery life of ~five years, a significant
improvement compared to similar devices. This is made possible by
t h e u l t r a −l o w −p o w e r c o n s u m p t i o n o f t h e R S L 1 0 r a d i o
System−on−Chip (SoC), advanced gate switching (FPF1005), low
power environmental sensors, and optimized firmware.
This user manual provides an overview of the RSL10 Asset Tag
(RSL10 ASSET TAG) hardware and software supporting software,
and instructions for use.
Key Features
•
Multi−Protocol Wireless Connectivity
•
Bluetooth LE
♦
Periodic Advertising
♦
Triggered Mode (Acceleration Threshold)
♦
Firmware Over the Air (FOTA) Updates
•
Real Time Locating Services (RTLS) provided by the
Quuppa Intelligent Locating Systemt
•
Unprecedented Low Power Consumption for 5 Year
Battery Life
•
Environmental Sensing Technology (Temperature,
Pressure) and a 3-axis Accelerometer
•
Advanced Sensor Management
♦
Ultra Low Leakage Gate Switches
Ultra Low Power 17 mJ Active Mode
♦
♦
150 nJ per second in Standby
•
Small Form Factor (27 mm Diameter)
•
Supported by the RSL10 Sensor Beacon Mobile App
(GooglePlayt)
•
Easy Debugging/Programming Interface
Unboxing the RSL10 Asset Tag
The RSL10 Asset Tag board is shipped with pre−flashed
firmware and a CR2016 3 V battery, as shown in Figure 1.
© Semiconductor Components Industries, LLC, 2021
July, 2021 − Rev. 0
USER MANUAL

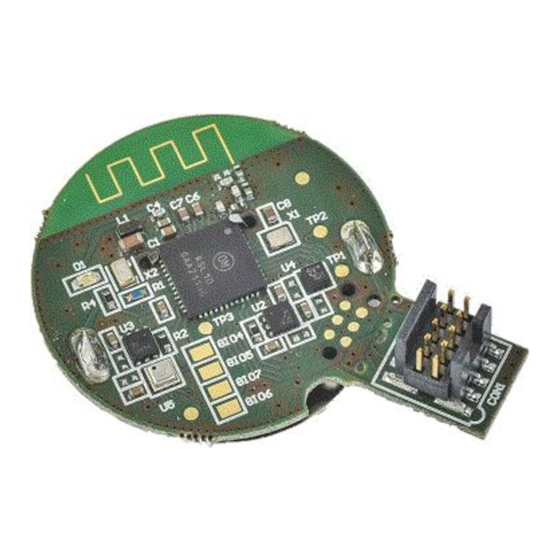

Figure 1. RSL10 Asset Tag
To get started with the platform, insert the battery into the
battery holder, as shown in Figure 2 below.
Figure 2. Inserting the CR2016 Battery into the
RSL10 Asset Tag
1
www.onsemi.com
Publication Order Number:
UM70049/D
