Malmbergs TM001-ZA Instruction Manual

EN

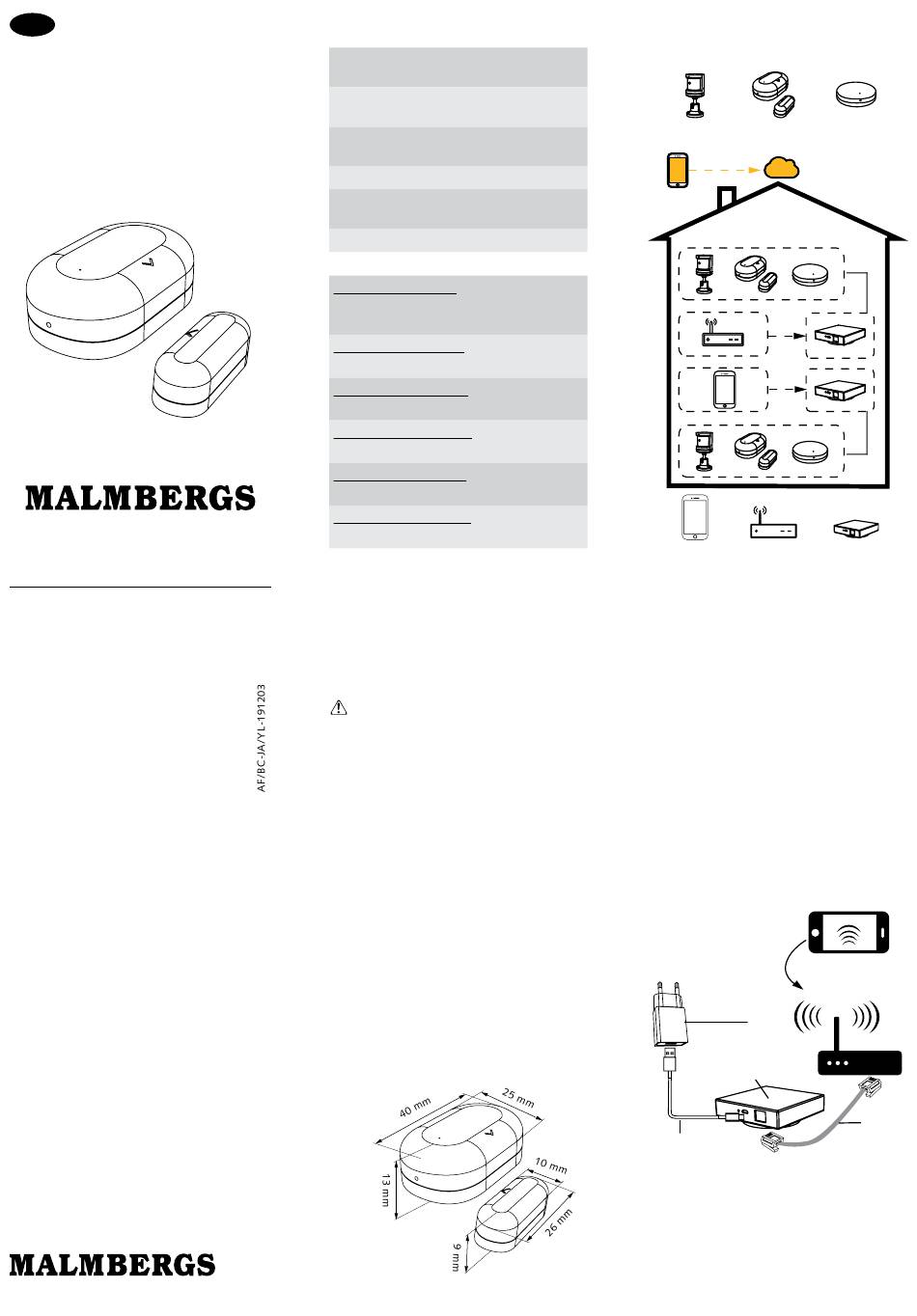

INSTRUCTION MANUAL

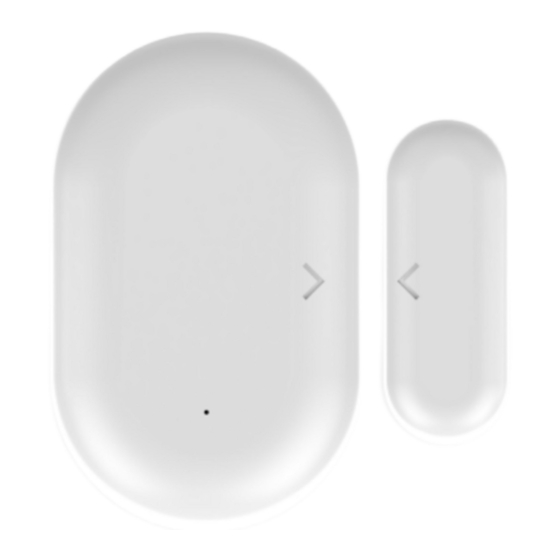

Door and Window Sensor
Art.No.: 99 190 45
Model No.: TM001-ZA
Malmbergs Elektriska AB
PO Box 144, SE-692 23 Kumla, SWEDEN
www.malmbergs.com
Malmbergs Elektriska aB (publ)
PO Box 144, SE-692 23
Kumla, SWEDEN
Phone: +46 (0)19 58 77 00
info@malmbergs.com
www.malmbergs.com
TEchNical SpEcificaTioNS
Door and window
Product type
sensor
Operating
2.4V - 3.3V
voltage
Wireless
ZigBee
connection
Operating temp. Ta: -20ºC - +60ºC
40x25x13 mm,
Dims (WxDxH)
26x10x9 mm
Battery type CR2032 cell battery 3V
EMC Standard (RED)
ETSI EN 301 489-1 V2.2.0 (2017-03),
ETSI EN 301 489-17 V3.2.0 (2017-03)
Safety Standard (RED)
EN 62368-1:2014+A11:2017
RoHS Standard (RoHS)
IEC 62321
Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11)
Health Standard (RED)
EN 62311:2008
REACH Standard (RED)
(EC) No 1907/2006
2
iNSTallaTioN
Warnings:
• This device does not support standalone
application and it must work together
with the ZigBee gateway (9919043 op-
tional accessories) under the same WIFI
network configuration.
• Indoor use only.
• Keep the device out of reach of children.
• Keep the device away from water, damp
or hot environment.
• Do NOT exceed the recommended
electrical ratings.
• Install the device away from strong signal
sources such as microwave ovens, which
may lead to signal interruption resulting
in abnormal operation of the device.
• Obstruction by concrete wall or metallic
materials may reduce the range of the
device and should be avoided.
• Do NOT attempt to disassemble, repair
or modify the device.
product size
4
control your Smart home wherever you are
99 190 44 99 190 45
Door & window
PIR motion sensor
sensor
Anywhere
APP
APP
APP
App Router
3
Wiring instructions and Diagrams
The device can only be installed indoors.
The correct installation should meet the
following conditions:
1. Ensure that the device is within the
range of the ZigBee gateway network.
2. The device detects the opening or clos-
ing of he door and window, and works
in conjunction with other devices to
implement smart home application.
3. Ensure that the door magnet is located
on the side of the alignment mark.
Smart phone
WIFI wireless
router LAN port
Adapter
9919043
Zigbee gateway
cable
USB
5
99 190 46
Temperature & humidity
sensor
99 190 43
Zigbee Gateway
LAN
cable
