OPERATING INSTRUCTIONS

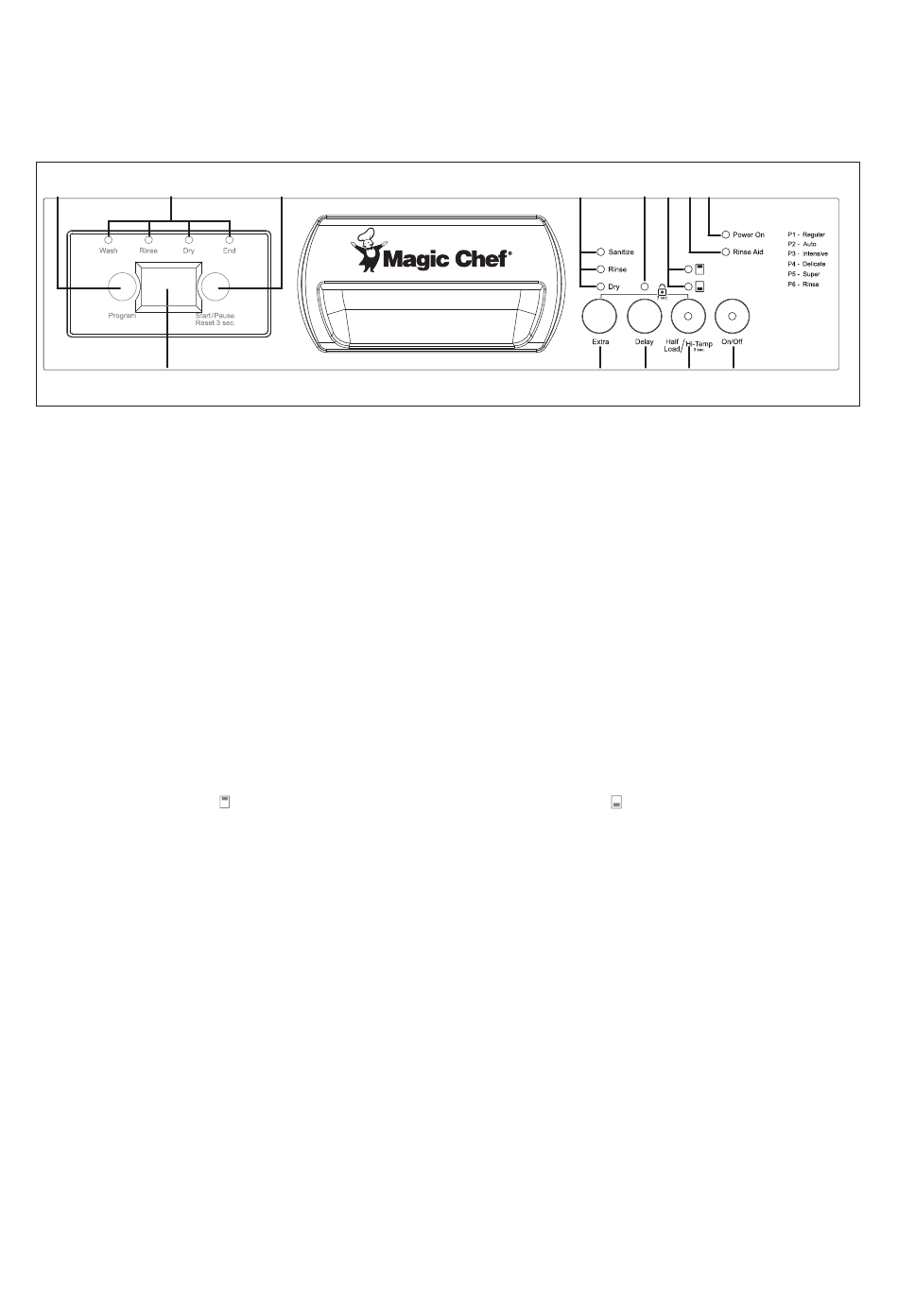

CONTROL PANEL
2 3
1
1. Display: Displays current setting/program, remaining time, etc.
2. Program Selection Button: Press to select wash program.
3. Wash Cycle Indicator LEDs: Indicates the current stage of the wash program: Wash, Rinse, Dry and End.
4. Start/Pause and Reset Button: Press to start or pause the selected program. Press and hold for 3 seconds to
cancel the program.
5. Extra Function Button: Press to cycle through extra functions: Sanitize, Rinse and Dry.
6. Extra Function Indicator LEDs: Indicate additional functions selected for the wash program .
7. Delay Button: Press to start the delay wash program.
8. Delay Indicator LED: Lights when the Delay function is active.
9. Half Load/Hi-Temp Button: Press to select Half Load program for upper or lower basket.
Press and hold for 3 seconds to select the Hi-Temp option. When selected, the water temperature and the
washing time are increased.
10. Half Load Indicators: " " lights to indicate an Upper Basket Half Load, and " " lights to indicate a Lower
Basket Half Load.
11. On/Off Button: Press to tun the dishwasher On or Off.
12. Rinse Aid Indicator: Lights when the rinse aid needs to be refilled.
13. Power On Indicator: Indicates that the power is on to the dishwasher.
4
16
6 8 10 12 13
5 7 9 11
