P/I Transmitter
P
P
Input
P/U Transmitter
P
P
Input
4.3 Plug connection Operation Method:
a) If the plug has been connected with transmitter, loose the central
bolt on the top of plug with little screwdriver and pull out the plug
from transmitter.
caution: do not take out the socket on the transmitter to protect it)
b) To disconnect the plug, please take out the central bolt on the top
of plug, then turn the plug to the bottom and insert a little flat
screwdriver into a corner signed "Lift" and give a force. The plug
core will be disconnected with housing.
c) To connect the cable, put the cable through the cable jack and
+V
GND
I
+OUT

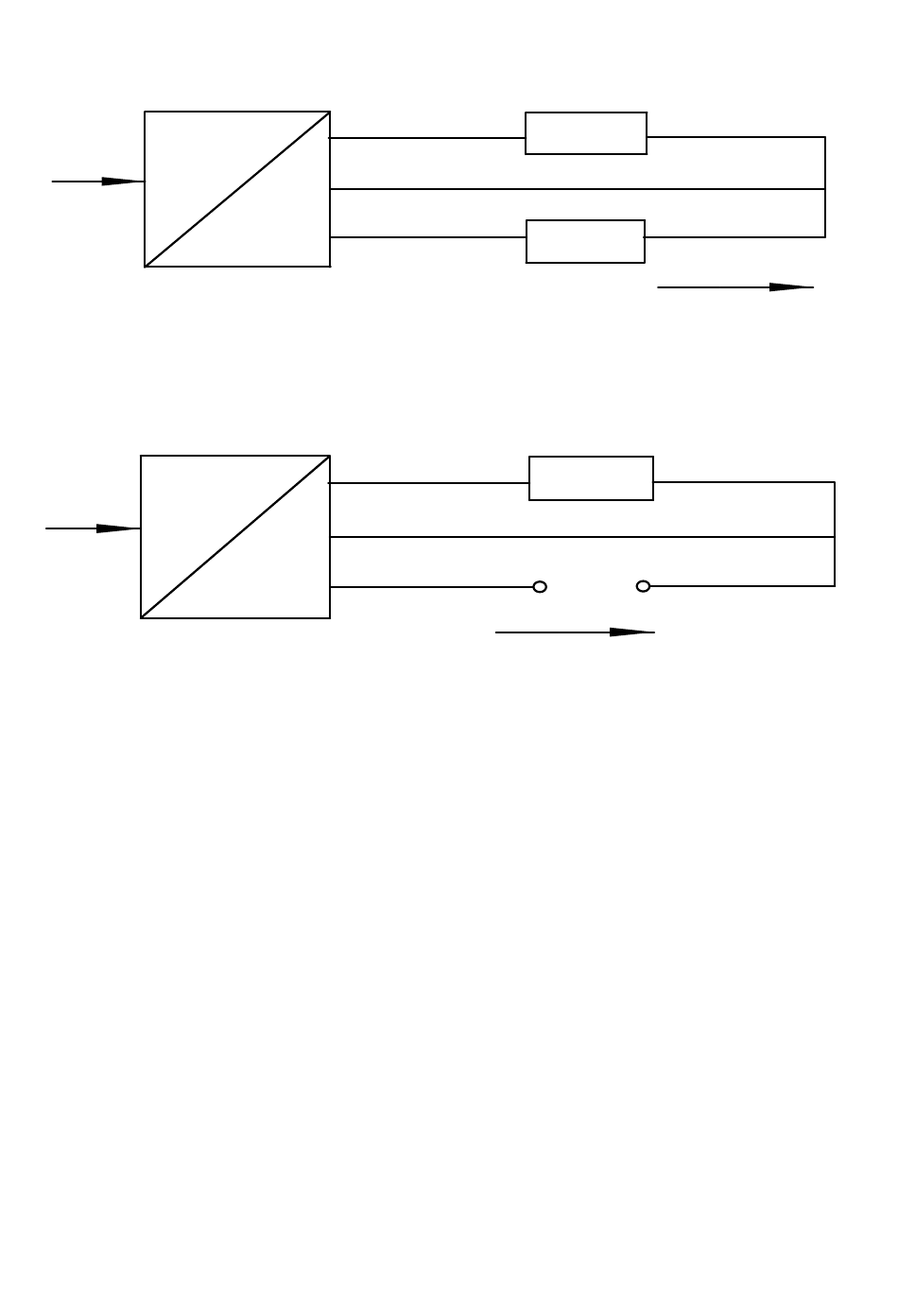

Fig.6 3-wire, 0mA~10/20mADC
+V
GND
I
+OUT
Fig.7 3-wire, 0V/1V~5VDC
DC current
+
U
Load
+
R
DC current
+
U
+
U
0/1V
5V
~
10
-
-
I
0mA
10/20mA
~
-
-
