DISASSEMBLY PROCEDURES

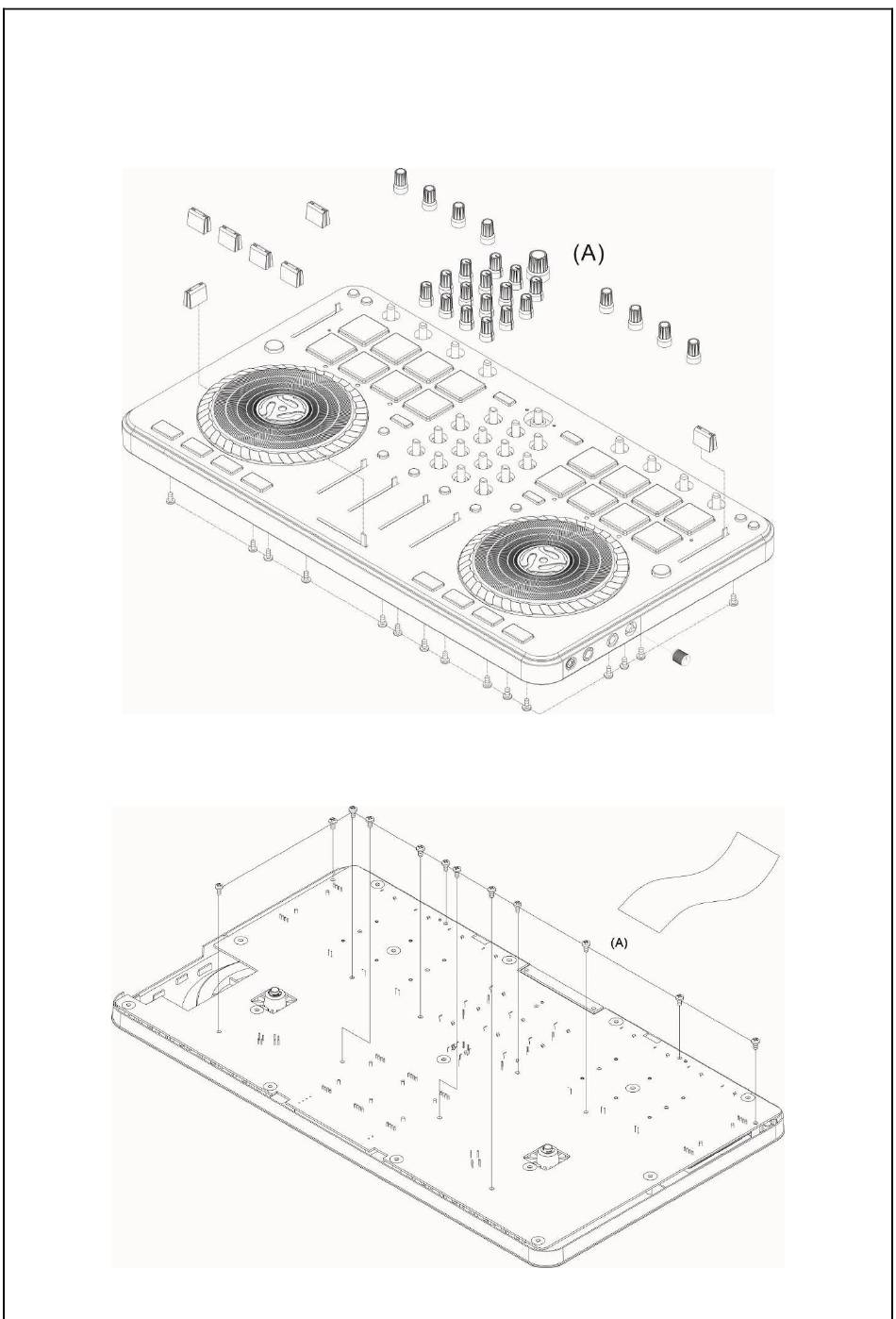

1. REMOVAL OF TOP HOUSING AND BOTTOM HOUSING .(Fig1)
(A)TAKE OUT THE 25 PCS KNOB AND 7 PCS VR KNOB AND 15 PCS SCREWS BEFORE TAKE OUT THE
TOP AND BOTTOM HOUSING.
Fig.1
2. REMOVAL MN PCB ASS'Y . (Fig2)
(A) TAKE OUT THE 12 PCS SCREWS AND 1 PC CONNECTOR BEFORE TAKE OUT THE MN PCB ASS'Y .
Fig.2
