Numark MIXTRACK QUAD Service Manual

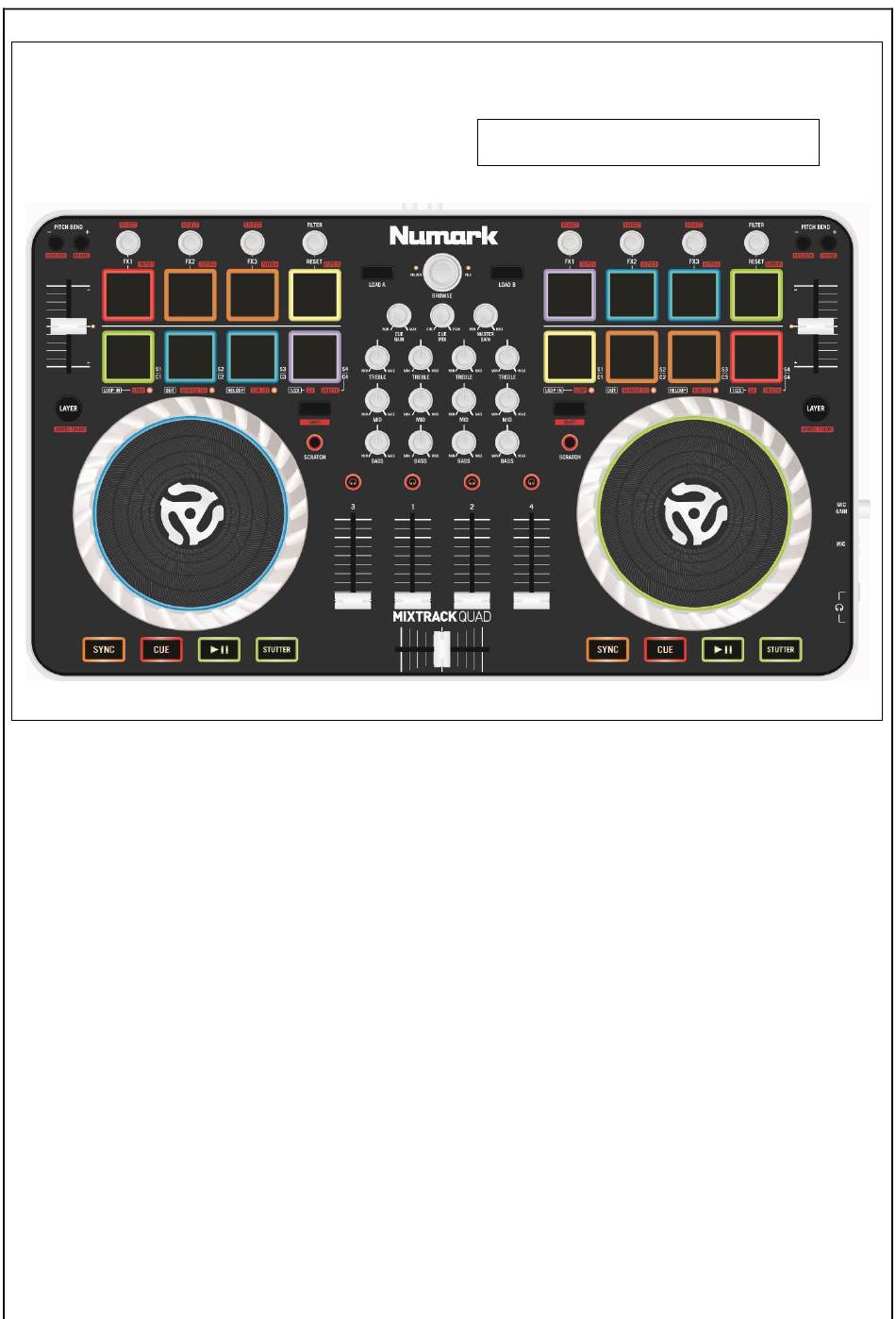

FUNCTION
1. Browser – Press the browser knob to open folders and cycle between the folder and file view.
2. Load – Press one of these buttons while a track is selected to assign it to a deck in the software.
3. Shift – Press and hold this button to access certain buttons' secondary functions.
4. Play/Pause – Starts and pauses playback.
5. Headphone Cue – Sends pre-fader audio to the cue channel for headphone monitoring.
6. Cue – Sets and recalls the main cue point in the current track. Press and hold this
button to play temporarily from this Cue Point. The track will play for as long as
the button is held down and return to the cue point once it is released.
7. Platter/Jog Wheel – This capacitive, touch-sensitive jog wheel controls the audio when the wheel is
8. Scratch –When inactive, moving the platter will bend the pitch of the track. When active, moving the platter will "scratch"
the track.
9. Pitch Fader – Controls the tempo (speed) of the individual decks.
10. Pitch Bend - – Press and hold to momentarily reduce the speed of the track. PressShift + Pitch Bend- to set the Keylock.
11. Pitch Bend + – Press and hold to momentarily increase the speed of the track. Press Shift + Pitch Bend + to set the Key
Range.
12. Sync – Enables BPM syncing (Sync Mode) between decks for the software tracks. To manually adjust
BPM and exit Sync Mode move the pitch fader of the deck you wish to adjust.
13. Layer – Switches the hardware deck's control between the two decks in the software. Mixtrack Quad's
left deck can control VirtualDJ's Deck 1 or Deck 3, while the right deck selects Deck 2 and Deck 4. The
LED's under the platter will change color to indicate which layer that the deck is currently controlling.
Press Shift + Layer to enter Color Selection mode.
SERVICE MANUAL
SPECIFICATION
touched and moved. When the Scratch button is inactive, use the wheel to bend the pitch of the track.
When the Scratch button is active, use the wheel to grab and move the audio, "scratching" the track
as you would with a vinyl record.
MODEL:MIXTRACK QUAD
