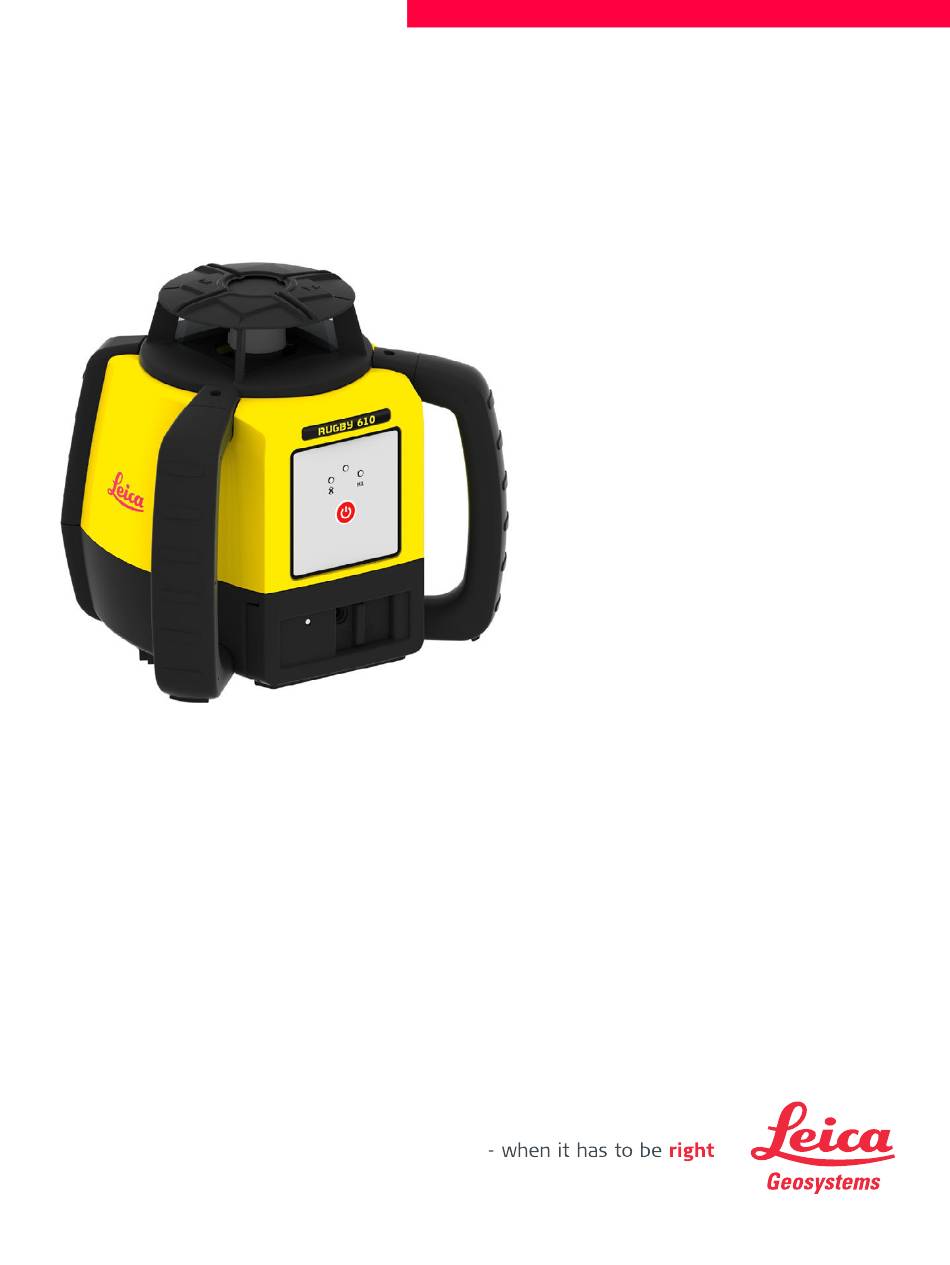

- Page 1 Leica Rugby 610 User Manual Version 1.0 English...
- Page 2 Leica Geosystems authorised service work- shop. Type: _______________ Serial No.: _______________ Validity of this This manual applies to the Rugby 610 lasers. Differences between the models are manual marked and described. Available Name Description/Format documentation ...
- Page 3 Service Description myProducts Simply add all Leica Geosystems products that you and your company own. View detailed information on your products, buy additional options or Customer Care Packages (CCPs), update your products with the latest software and keep up-to-date with the latest documentation.
-
Page 4: Table Of Contents
Rod Eye Basic Receiver Applications Setting Forms Checking Grades Manual Grades Batteries Operating Principles Battery for Rugby Accuracy Adjustment Checking the Level Accuracy Adjusting the Level Accuracy Troubleshooting Care and Transport Transport Storage Cleaning and Drying Rugby 610, Table of Contents... - Page 5 Technical Data 10.1 Conformity to National Regulations 10.2 General Technical Data of the Laser Lifetime Manufacturer’s Warranty Accessories Index Rugby 610, Table of Contents...
-
Page 6: Safety Directions
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Rugby 610, Safety Directions... -
Page 7: Definition Of Use
• To ensure that it is used in accordance with the instructions. • To be familiar with local regulations relating to safety and accident prevention. • To inform Leica Geosystems immediately if the product and the application becomes unsafe. • To ensure that the national laws, regulations and conditions for the operation of e.g. -
Page 8: Hazards Of Use
When transporting or shipping batteries, the person in charge of the product must ensure that the applicable national and international rules and regulations are observed. Before transportation or shipping contact your local passenger or freight transport company. Rugby 610, Safety Directions... - Page 9 • Using the product after incorrect attempts were made to carry out repairs Precautions: Do not open the product. Only Leica Geosystems authorised service workshops are entitled to repair these products. If the product is improperly disposed of, the following can happen: WARNING •...
-
Page 10: Laser Classification
635 nm ± 10 nm From a safety perspective, class 2 laser products are not inherently safe for the eyes. CAUTION Precautions: 1) Avoid staring into the beam. 2) Avoid pointing the beam at other people. Rugby 610, Safety Directions... -
Page 11: Electromagnetic Compatibility Emc
WARNING Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. There is a risk that disturbances may be caused in other equipment if the product is... -
Page 12: Fcc Statement, Applicable In U
Precautions: Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment can be disturbed or that humans or animals can be affected. • Do not operate the product with radio or digital cellular phone devices in the vicinity of filling stations or chemical installations, or in other areas where an explosion hazard exists. - Page 13 Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China 005664_001 Rugby 610, Safety Directions...
-
Page 14: Description Of The System
Description of the System System Components General description The Rugby 610 is a laser tool for general construction and levelling applications such as • Setting forms • Checking grades • Controlling depths for excavations If set up within the self-levelling range, the Rugby automatically levels to create an accurate horizontal plane of laser light. -
Page 15: Rugby Laser Components
Li-Ion battery pack or Alkaline battery pack d) 2x AA-cell battery e) User Manual/CD f) Second receiver (can be purchased separately) g) 4x D-cell battery (for alkaline versions only) h) Charger (for Li-Ion versions only) Rugby 610, Description of the System... -
Page 16: Setup
• Always check the tripod or laser trailer before attaching the Rugby. Make sure all screws, bolts and nuts are tight. • If a tripod has chains, they should be slightly loose to allow for thermal expansion during the day. • Secure the tripod on extremely windy days. Rugby 610, Description of the System... -
Page 17: Operation
Level Indicator LED b) Low Battery Indicator LED c) H.I. Indicator LED 005765_001 Description of the IF the is/are THEN LEDs Low Battery Indicator the battery is okay. LED (Li-Ion & alkaline) the battery is getting low. Rugby 610, Operation... -
Page 18: Turning On And Off The Rugby
In Automatic Mode the Rugby automatically levels if set up within the 5° self-levelling range. Manual Mode Description of the Manual slopes can be created using the Rugby 610 together with the A240 Manual Manual Mode Slope Adapter (790434). In Manual Mode the self-levelling will be deactivated. -
Page 19: Elevation Alert (H.i.) Function
• With the Rugby turned on, press and hold the Left hidden button and the Right hidden button. • Press the Centre hidden button. The Rugby beeps once to indicate the change. If the Elevation Alert function is enabled, the H.I. Indicator LED flashes twice quickly on power up. Rugby 610, Operation... -
Page 20: Receivers
Receivers Description The Rugby 610 is sold with the Rod Eye 140 Classic or Rod Eye Basic Receiver. Rod Eye 140, Classic Receiver Instrument compo- nents part 1 of 2 a) Level vial b) Audio Speaker c) LCD window d) LEDs... -
Page 21: Menu - Rod Eye 140, Classic Receiver
Turns on or off the position Green LED is on: function is on. memory function. The down arrow bars Red LED is on: function is off. are filling to indicate this parameter. Rugby 610, Receivers... -
Page 22: Rod Eye Basic Receiver
Location to attach the receiver bracket for normal operation. Mounting Hole Offset notch Use to transfer reference marks. The notch is 45 mm (1.75") below to top of the detector. Battery door Access to the battery compartment. Rugby 610, Receivers... - Page 23 Description of the buttons a) Audio b) Bandwidth 005667_001 c) Power Button Function Audio Press to change the audio output. Bandwidth Press to change detection bandwidth. Power Press once to turn on the Receiver. Rugby 610, Receivers...
-
Page 24: Applications
Set the rod with the attached receiver on top of the form. Adjust the height of the form until the on-grade position is again indicated. Continue to additional positions until the forms are levelled to the rotating plane of the Rugby. Rugby 610, Applications... -
Page 25: Checking Grades
Set the rod with the attached receiver on top of the excavation or concrete pour to check for correct elevation. Variances can be read with the arrow display. • 7a: Position is too high. • 7b: Position is too low. • 7c: Position is on grade. Rugby 610, Applications... -
Page 26: Manual Grades
• the centre bar • the green flashing LED • a solid audio tone The desired slope can be set with the slope adapter. The receiver can now be used to control the grade of the slope. Rugby 610, Applications... -
Page 27: Batteries
Batteries Description The Rugby 610 can be purchased with alkaline batteries or a rechargeable Li-Ion battery pack. The following information is appropriate only to the model you have purchased. Operating Principles Charging / first-time • The battery must be charged prior to using it for the first time because it is deliv- ered with an energy content as low as possible. - Page 28 Remove the batteries from the battery compartment. To insert the batteries: Insert the batteries into the battery compartment. Close the cover of the battery compartment and slide the locking mecha- nism to the left centre position until it locks into position. Rugby 610, Batteries...
- Page 29 The correct polarity is displayed on the battery holder. Close the cover of the battery compartment and slide the locking mecha- nism to the left until it locks into position. Rugby 610, Batteries...
-
Page 30: Accuracy Adjustment
30 m (100 ft) 30 m (100 ft) Y— 005773_001 Align the second axis of the Rugby by rotating it 90° so that this axis is square to the wall. Allow the Rugby to self-level completely. Rugby 610, Accuracy Adjustment... -
Page 31: Adjusting The Level Accuracy
• The Level Indicator LED and the H.I. Indicator LED flash alternately three times. • The H.I. Indicator LED flashes three times, then flashes slowly until level. When the Rugby is level, the H.I. Indicator LED is on, but does not flash. • The Level Indicator LED is off. Rugby 610, Accuracy Adjustment... - Page 32 The Level Indicator LED and H.I. Indicator LED flash alternately three times, then the Rugby shuts off. Pressing the Power button at any time while in Adjustment Mode will exit the mode without saving changes. Rugby 610, Accuracy Adjustment...
-
Page 33: Troubleshooting
Elevation Alert. the Rugby. properly. Refer to the receiver manual for more infor- mation. The receiver is out of usable Move closer to the Rugby. range. The batteries of the receiver are Change the receiver batteries. low. Rugby 610, Troubleshooting... - Page 34 With Rugby turned on and rotating, press and hold the Left hidden button and the Right hidden button. Then press the Centre hidden button to enable or disable the Elevation Alert function. The Rugby beeps once to indicate the change. Rugby 610, Troubleshooting...
-
Page 35: Care And Transport
Always carry the product in its transport container and secure it. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration. Shipping, transport... -
Page 36: Cleaning And Drying
Do not repack until everything is completely dry. Always close the transport container when using in the field. Cables and plugs Keep plugs clean and dry. Blow away any dirt lodged in the plugs of the connecting cables. Rugby 610, Care and Transport... - Page 37 Conformity to For products which do not fall under R&TTE directive: national regulations Hereby, Leica Geosystems AG, declares that the product/s is/are in compliance with the essential requirements and other relevant provi- sions of the applicable European Directives. The declaration of conformity can be consulted at http://www.leica-geosystems.com/ce.
- Page 38 12 V DC Output current: 3.0 A Polarity: Shaft: negative, Tip: positive A600 Lithium-Ion Type: Li-Ion battery pack battery pack Input voltage: 12 V DC Input current: 2.5 A Charge time: 5 hours (maximum) at 20°C Rugby 610, Technical Data...
- Page 39 To receive the "three years no cost" period, the product must be registered at http://www.leica-geosystems.com/registration within 8 weeks of the purchase date. If the product is not registered, a two year warranty applies. Rugby 610, Lifetime Manufacturer’s Warranty...
- Page 40 It can also be purchased separately as an upgrade to the alkaline battery pack. It is necessary to also purchase the A100, Li-Ion battery charger to complete the Li-Ion battery solution. A100 A240 A600 A130 A150 A140 005779_001 Rugby 610, Accessories...
- Page 41 Menu ..............21 Of laser ............37 Rotation speed ..........37 Documentation ............ 2 Safety Directions ..........6 Elevation alert ............ 19 Setup Environmental specifications Instrument on tripod ........16 Laser .............. 38 Specifications, environmental Instrument .............38 FCC Statement ........... 12 Rugby 610, Index...
- Page 42 Temperature Laser Operating ..........38 Storage ............ 38 Temperature, charging internal battery ....27 Troubleshooting ..........33 User Manual Validity of ............2 Warranty ............39 Weight Instrument ............. 37 Rugby 610, Index...
- Page 43 Rugby 610, Index...
- Page 44 812929-1.0.0en Original text Published in Switzerland © 2013 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
