Summary of Contents for Leica Geosystems LINO L6R

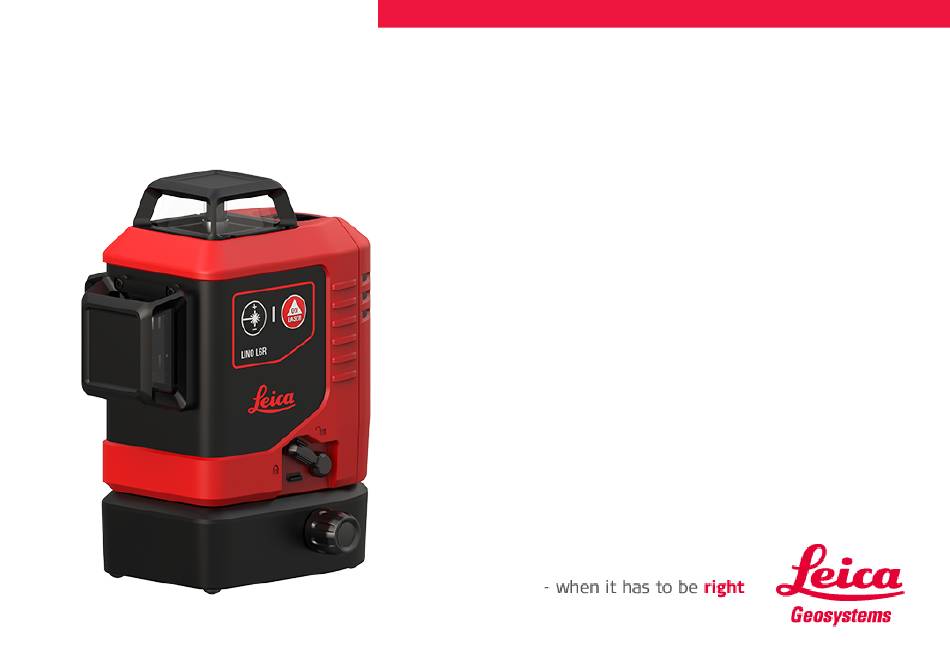

- Page 1 Leica LINO L6R / L6G...
-
Page 2: Table Of Contents
Overview Technical data Instrument Set-up Operations How to use the smart adapters Message Codes Accuracy Check Care Warranty Safety instructions Leica Lino L6R/L6G... -
Page 3: Overview
Overview Ov e r v i e w The Leica Lino L6R/L6G is a self-levelling mul- There are 2 different types available: 1 Laser key (on keypad), ON/OFF tifunctional laser. It combines the advantage of three 360° line lasers in one tool and an integrated L6R (red laser) 2 Status LED (on keypad) -
Page 4: Technical Data
Technical data T e c h n i c a l d a t a Description Beam direction/fan angle 2 x Vertical 360°, 1 x Horizontal 360° Intersection point direction Up, down, right, left, front, back (90°/180°) Range/Diameter* 25 m/50 m (82 ft/164 ft) 35 m/70 m (115 ft/230 ft) Range/Diameter* with receiver 70 m/140 m (230 ft/460 ft)**... -
Page 5: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Leica Lino L6R/L6G... - Page 6 +86°F), batteries containing a 50% to 100% The Lino is powered by XRANGE technology and charge can be stored up to 1 year. After this stor- therefore automatically detected by the receiver. age period the batteries must be recharged. Leica Lino L6R/L6G...
- Page 7 Li-Ion status LED lights green: charging battery Insert Alkaline batteries in the battery-pack. OFF: charging finished / no charging Leica Lino L6R/L6G...
-
Page 8: Operations
30 min operation press and hold the ON button at start for 5 sec. The status LED blinks 3 times in green colour. To deactivate it again repeat the described steps until the status LED blinks 3 times in red colour. Leica Lino L6R/L6G... - Page 9 Layout mode Check if self-levelling is required and cor- Horizontal mode Vertical side mode respondingly activated. (See Levelling lock for details) * In very hot environments it can be that maximum two lines work simultaneously (see Message Codes). Leica Lino L6R/L6G...
- Page 10 Activate levelling lock and press ON for tilt width. applications. 2x: Power reduction -50%, smallest line width. 3x: Full power 100%, maximum range 2 sec = save actual function and line intensity (default). 5 sec = reset to factory settings Leica Lino L6R/L6G...
-
Page 11: How To Use The Smart Adapters

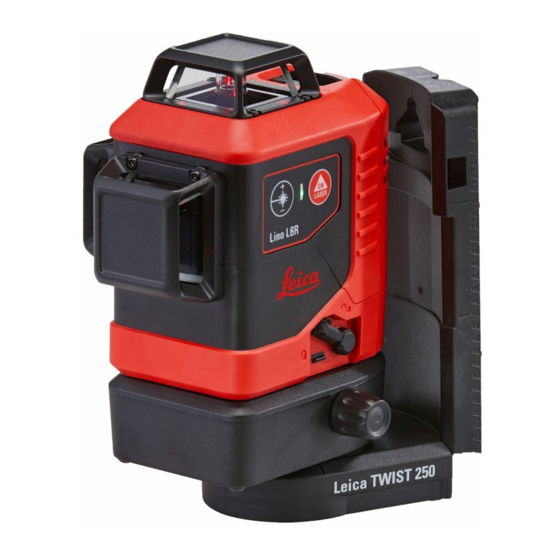

Snap the device on the Twist 250 adapter. Turn the device 250° to adjust the vertical line. Use the side knob and turn the device around the ver- tical intersection / plumb point within ± 10°. Leica Lino L6R/L6G... - Page 12 How to use the smart adapters Different fixing applications Leica Lino L6R/L6G...
-
Page 13: Message Codes
Message Codes Me s s a g e Co d e s Laser Cause Correction ON/OFF lights red Instrument has low power Charge Li-Ion battery or change Alkaline bat- teries ON/blinks lights orange Instrument is close to temperature limit. In Cool down instrument very hot environments it can be that maximum two lines work simultaneously. -
Page 14: Accuracy Check
(B1). If the difference does not exceed 2 mm, then the instrument is within tolerance. Should your instrument be outside of the spe- cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- tributor. Leica Lino L6R/L6G... - Page 15 If the difference does not exceed 2 mm, then the instrument is within tolerance. Should your instrument be outside of the spe- cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- tributor. Leica Lino L6R/L6G...
- Page 16 B1, then the instrument is within tol- from point B1, then the instrument is within tol- erance. erance. Should your instrument be outside of the spe- cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- tributor. Leica Lino L6R/L6G...
- Page 17 Should your instrument be outside of the spe- Should your instrument be outside of the spe- cified tolerance, please contact a local dealer cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- or an authorised Leica Geosystems dis- tributor. tributor.
-
Page 18: Care
To clean the magnetic surface you could use compressed air or modelling clay. If the equipment get wet always dry it (max. 70°C/158°F) before repacking it into the case. Leica Lino L6R/L6G... -
Page 19: Warranty
Warranty can be found on the internet at: www.leica-geosystems.com/internationalwarranty. Calibration and repair service Leica Geosystems recommend to check the device within regular intervals to prove the function and reliability in accordance with standards and requirements. At least one time per year. -
Page 20: Safety Instructions
1. To understand the safety instructions on the product and the instructions in the User Manual. 2. To be familiar with local safety regulations relating to accident prevention. 3. Always prevent access to the product by unauthorised personnel. Leica Lino L6R/L6G... - Page 21 WARNING Changes or modifications not expressively approved by Leica Geosystems/manufacturer for compliance could void the user´s authority to oper- ate the equipment. WARNING Laser/adapters should not be used in the vicinity of pacemaker because of integrated magnets which can affect the function of the pacemaker.
- Page 22 When transporting or shipping bat- teries, the person in charge of the product must ensure that the applicable national and inter- national rules are observed. Before transportation or shipping, contact your local passenger or freight transport company. Leica Lino L6R/L6G...
- Page 23 4. Consult the dealer or an experienced radi- o/TV technician for help This instrument complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: 1. This instrument may not cause harmful interference, and Leica Lino L6R/L6G...
- Page 24 It is a Class <1 mW 2 laser product in accordance with: IEC60825-1 : 2014 „Radiation safety of Pulse duration laser products“ 30 - 70 µs Pulse repetition frequency 10 kHz Leica Lino L6R/L6G...
- Page 25 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Art. No. 913010a Leica Lino L6R/L6G...
