oklahoma joes Rider Manual

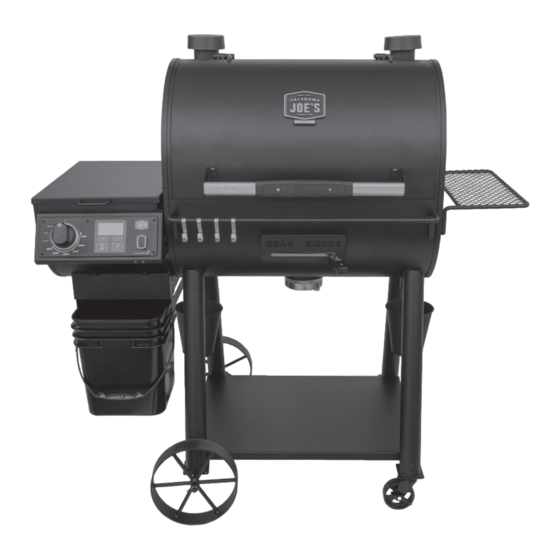

Dlx pellet grill
Hide thumbs Also See for Rider:
Table of Contents

Advertisement

Quick Links

D LX P E LL ET G R ILL
Grilling Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rider and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for oklahoma joes Rider

Summary of Contents for oklahoma joes Rider

  • Page 1 D LX P E LL ET G R ILL Grilling Guide...
  • Page 2 The Rider DLX includes many unique features that we are confident you’ll find new ways to use every time you cook! The beauty of cooking with an Oklahoma Joe’s is...

  • Page 3: Table Of Contents

    TA BL E O F C ON TE NTS: Know Your Grill How it works................2 Product features...............4 Control panel................8 Display screen details..............9 Fire Focus................10 Adjustable Baffle..............11 Quickdraw Hopper..............12 Flex Grates................13 Flex Racks................14 Using Your Grill First time start up & use............15 Using Pit Control..............17 Guidance features..............18...

  • Page 4: How It Works

    KNOW YOUR JOE How it works … We designed the Oklahoma Joe’s Rider DLX Pellet Grill to effortlessly deliver delicious wood-fired smoke flavor in an incredibly versatile outdoor cooking platform. But before you start making great meals, we want to lay out the details of how your new grill works, how to operate it and how to maintain it properly so it provides years of great meals.
  • Page 5 1. Hopper - Holds up to 20lbs of your favorite flavor wood pellets providing fuel for hours of cooking. 2. Auger - Delivers pellets from the hopper to the fire pot. 3. Blower Fan - This fan blows fresh air onto the fire to stoke the flames. 4.

  • Page 6: Product Features

    Exterior Features 1. Pit Control 2.0 - This is the brain of your Rider DLX Pellet Grill. After you set the desired cooking temp, Pit Control takes care of the rest. It is also equipped with 2 guidance features to organize your cook: •...
  • Page 8 Interior Features 7. Flex Grates - Three porcelain-coated cast-iron grates provide 578 Sq. In of cooking space, with extra thick construction that provides excellent heat retention for grilling. The porcelain coating resists rust and makes them easier to clean. 8. Flex Rack - Each porcelain-coated steel wire upper cooking rack provides an additional 328 Sq.

  • Page 10: Control Panel

    6. Probe Button - Use this button to configure target temps for up to 4 meat probes for the perfect results. (See Page 19 for details on set up) NOTE: Your Rider includes 2 meat probes, and additional probes can be purchased separately.

  • Page 11: Display Screen Details

    DISPLAY SCREEN DETAILS 1. Primary Fire Focus Selection (Pg 10) 2. Secondary Fire Focus Selection (Pg 10) 3. Primary Temp Readout 4. Secondary Temp Readout 5. Temp Readout Status • ACT – Indicates the temp readout is currently showing actual temp readings in the cook chamber.

  • Page 12: Fire Focus

    FIRE FOCUS Fire Focus lets you take full advantage of the dual temperature sensors in the Rider DLX cook chamber for incredibly accurate temp control, tailored to your cooking needs By measuring the air temperature and grate temperature with separate sensors, the Rider DLX can match the set temperature more precisely by where you are cooking.

  • Page 13: Adjustable Baffle

    ADJUSTABLE HEAT BAFFLE Allows you to switch between even temp performance throughout the chamber when desired and focused, direct heat performance at the grate level when grilling, all in real time, just by flipping a lever. This system consists of 3 components : Selector The selector allows you to shift the baffle from...

  • Page 14: Quickdraw Hopper

    QUICKDRAW HOPPER The QuickDraw Hopper makes draining unused pellets from the hopper a simple task. This allows you to empty the hopper after use and/or swap pellet flavors quickly and easily. Here’s how it works: 1. Slide Pellet Storage Bucket into the rails underneath the hopper.

  • Page 15: Flex Grates

    FLEX GRATE Our modular cooking grate and rack system interface with a selection of accessories, allowing custom configurations for a ton of unique cooking setups and amazing versatility. The accessories are sold separately and allow you to build out your perfect cooking setup. To use the Flex Grate accessories, simply remove the central section of the grate and replace with your selected accessory.

  • Page 16: Flex Racks

    FLEX RACKS The Flex Racks use a vertical support system on the back wall of your Rider DLX to support the upper cooking racks. To use accessory racks, simply lift the upper cooking rack out and use your accessory rack in any configuration you like.

  • Page 17: First Time Start Up & Use

    FIRST TIME START UP & USE Follow these instructions for setup and proper use of your Rider Pellet Grill. 1. INSPECTION – This is a quick check to make sure your grill’s components are working properly… be sure to observe only and not touch the auger, ignitor or fans.
  • Page 18 3. SHUTDOWN - Use this technique to properly shutdown your grill after each use. 1. After cooking, press and hold the Shutdown Button for 2 seconds to initiate the shutdown process. After 2 seconds, the Shutdown process will start by flashing the message “DRN HOP” on the Pit Control screen, indicating that it’s time to drain the remaining pellets in the QuickDraw hopper into your pellet storage bucket.

  • Page 19: Using Pit Control

    USING PIT CONTROL Setting and controlling temperatures on your new Rider DLX pellet grill is made simple with Pit Control. It uses dual temperature sensors in the cook chamber, along with intelligent algorithms, to maintain smoke and cooking temps through- out your cooking sessions.

  • Page 20: Guidance Features

    GUIDANCE FEATURES Pit Control comes equipped with 2 guidance features to help you keep track of cooking times and meat temperatures. Timer - set a countdown timer to monitor cook times. Upon completion, an audible “beep” will sound and the display screen will flash indicating your timer goal has been reached. To set the timer: 1.
  • Page 21 to cancel. Next press the Control Knob once again (without rotating the knob) to cancel the timer setting and exit Set Mode. Meat Probes - Use up to 4 integrated meat probes simultaneously (2 included) to monitor internal meat temps. There are two ways to use the meat probes:: •...

  • Page 22: Cooking Tips

    At the end of the day, you will learn to use the Rider like you would any other grill or smoker – through practice! (At least in this case, practice involves cooking deli- cious meals.) Here are some tips for both smoking and grilling to help you get started:...
  • Page 23 Note: Using the grill on the HIGH heat setting with the baffle in SMOKE mode for an extended period of time may cause paint damage to your Rider, so try to avoid using that particular set up for long durations.

  • Page 24: Maintenance

    PELLET GRILL MAINTENANCE There’s just a few things to remember to keep your pellet grill functioning at peak performance. Keep up with the maintenance in this guide and your grill will help you create delicious food for years to come. Clean Up Every good pitmaster knows that clean up is an important part of maintaining tip-top smoker or grill performance.
  • Page 25 Empty Pellets Removing excess pellets from the hopper when your pellet grill is not in use will help them stay dry and prevents them from breaking down in your pellet grill and causing jams. If you are running the Shutdown Process explained on pg 16, you will already be doing this, so consider this a reminder.
  • Page 26 Clean the cook chamber After several cooks, the interior walls of the grill can develop a greasy build-up which can affect performance of the grill and even the flavor of your food. 1. Unplug the grill. 2. Make sure pellet grill is completely cool before cleaning. 3.

  • Page 27: Cleaning

    CLEAN INTERIOR COMPONENTS Keeping interior components clean is essential to maintaining the performance and safety of your pellet grill. Heat baffles will collect a significant amount of grease build up which can influence your cooking results and potentially lead to grease fires. In addition to running Burn Offs frequently, a periodic, extensive cleaning is recommend.
  • Page 28 3. Remove Sear Zone chamber. 4. With the baffle removed, the grill interior can be thoroughly cleaned. 5. To reassemble, follow steps 1-4 in reverse order. Note: Be sure to line up the arrows in the baffle chamber to ensure correct alignment when reassembling.

  • Page 29: Extended Care

    EXTENDED CARE Grill Interior Over time rust can appear on the interior of your smoker… it’s the result of it being subjected to some pretty harsh conditions between cooking and the ele- ments. Maintaining a light coat of vegetable oil on interior surfaces will aid in the protection of your unit.

  • Page 30: Customize

    CUSTOMIZE Rider DLX Pellet Grills have a collection of accessories available to allow you to customize your smoking experience exactly the way you want it. Check out OklahomaJoes.com for more info on these items. FLE X G RATE - Oklahoma Joe’s ®...
  • Page 31 It easily locks into the double-slotted brackets on the back wall of the cooking chamber on the Rider DLX Pellet Grills. Model # 4418428P06 Oklahoma Joe’s ®...
  • Page 32 FUEL UP Infuse your pork, beef, chicken, vegetables and cheese with the strong, sweet and smoky taste of Oklahoma Joe’s Wood Pellets. These ultra-premium pellets ® are 100% natural, hardwood, food-grade pellets. They’re clean burning with low ash for easy clean-up and available in 20-pound bags. APPLE 20lb Bag- Model # 2778407 HICKORY...
  • Page 33 Oklahoma Joe’s ® Rider DLX Pellet Grill Cover Protect your Oklahoma Joe’s Rider DLX 900 or 1200 Pellet Grill from the elements with a custom-fit cover. Made from fade and water-resistant material, this heavy-duty cover keeps your pellet grill clean and dry.

  • Page 34: Wood Flavors

    WOOD FLAVORS Apple wood has a mild, sweet, fruity flavor. Use this wood for smoking poultry, beef, pork (especially ham), game birds, lamb, and some seafood. Because of it’s light character, it will take more time to get the flavor you want. Cherry wood has a sweet mild, fruity flavor that is a good match for all meats.
  • Page 35 SMOKING WOOD FLAVOR CHART Poultry Seafood Lamb Pork Beef Veggies Cheese Alder Apple Cherry Hickory Maple Mesquite Mulberry Olive Peach Pear Pecan Walnut Please refer to the SMOKING WOOD FLAVOR CHART for an idea on what wood flavors may work best when smoking certain foods. These are just guidelines, you will learn what you like to use as you gain experience using different flavors on different foods.

  • Page 36: Food Safety

    FOOD SAFETY Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps: Clean: Wash hands, utensils, and surfaces with hot soapy water before and after handling raw meat. Separate: Separate raw meats from ready-to-eat foods to avoid cross contami- nation.
  • Page 37 Internal Meat Temperatures Meat cooked on a smoker/grill often browns very fast on the outside. Therefore, use a meat thermometer to ensure it has reached safe internal temperatures. USDA RECOMMENDED SAFE MINIMUM INTERNAL TEMPERATURES Beef, Veal, Lamb, Steak, Roasts & Whole Pork 145˚F/63˚C ( WITH A THREE-MINUTE REST TIME ) Fish...

  • Page 38: Tips

    TIPS FROM THE PIT Let it Rest When you’re smoking larger cuts of meat it’s always a good idea to let your product rest after pulling it off the smoker. This will help reabsorb the moisture back into the meat, and allows some time for the product to come down a few degrees to aid in slicing.
  • Page 39 Take Notes As if there isn’t enough to do when smoking your favorite cut of meat, it pays to take a few notes of your process so you can go back and remember what you did. It can take 12+ hours sometimes when smoking low and slow, and you don’t want to forget your steps so you can repeat your process in the future.

  • Page 40: Troublshooting

    TROUBLESHOOTING Reference this guide if you are experiencing issues when using your Rider Pellet Grill. You may encounter a “CHK HOP” message on your Pit Control screen in some circumstances. Please know that if this message appears, the grill is functioning normally and will continue to do so.
  • Page 41 1. Check and empty ash cup. With ash cup removed, tap ash chute (stainless steel tube protruding from bottom of grill) with screwdriver or similar tool to shake firepot clean. 3. CHECK FOR AUGER JAM - If your firepot is clean, next you’ll need to check for an auger jam.
  • Page 42 may need to be replaced. Please call Oklahoma Joe’s customer service for assistance (see page 42). 5. CHECK GRILLING TEMPERATURE PROBE - If auger is turning properly, check to see if the temperature probe is malfunctioning: a. Empty Quickdraw hopper and remove center grate. b.
  • Page 43 further assistance (see page 42). CLEARING AN AUGER JAM Jams can be caused by a number of factors such as using damp/crumbling pellets, leaving pellets in the system for extended periods of time or not properly running the shutdown process. In some cases, a jam may be accompanied by an ER5 message on the Pit Control screen but ultimately, an auger jam will prevent the auger from feeding pellets into the firepot, thus causing a flameout.

  • Page 44: Error Codes

    ERROR CODES In the event that you do experience a malfunction, you may see an error code read out on the Pit Control display screen. Consult the table below to find the source of the error, and reference the Instruction Manual for more details. Also visit OklahomaJoes.com for more details on troubleshooting the specific issue you are having.
