Summary of Contents for studioduc indi crib

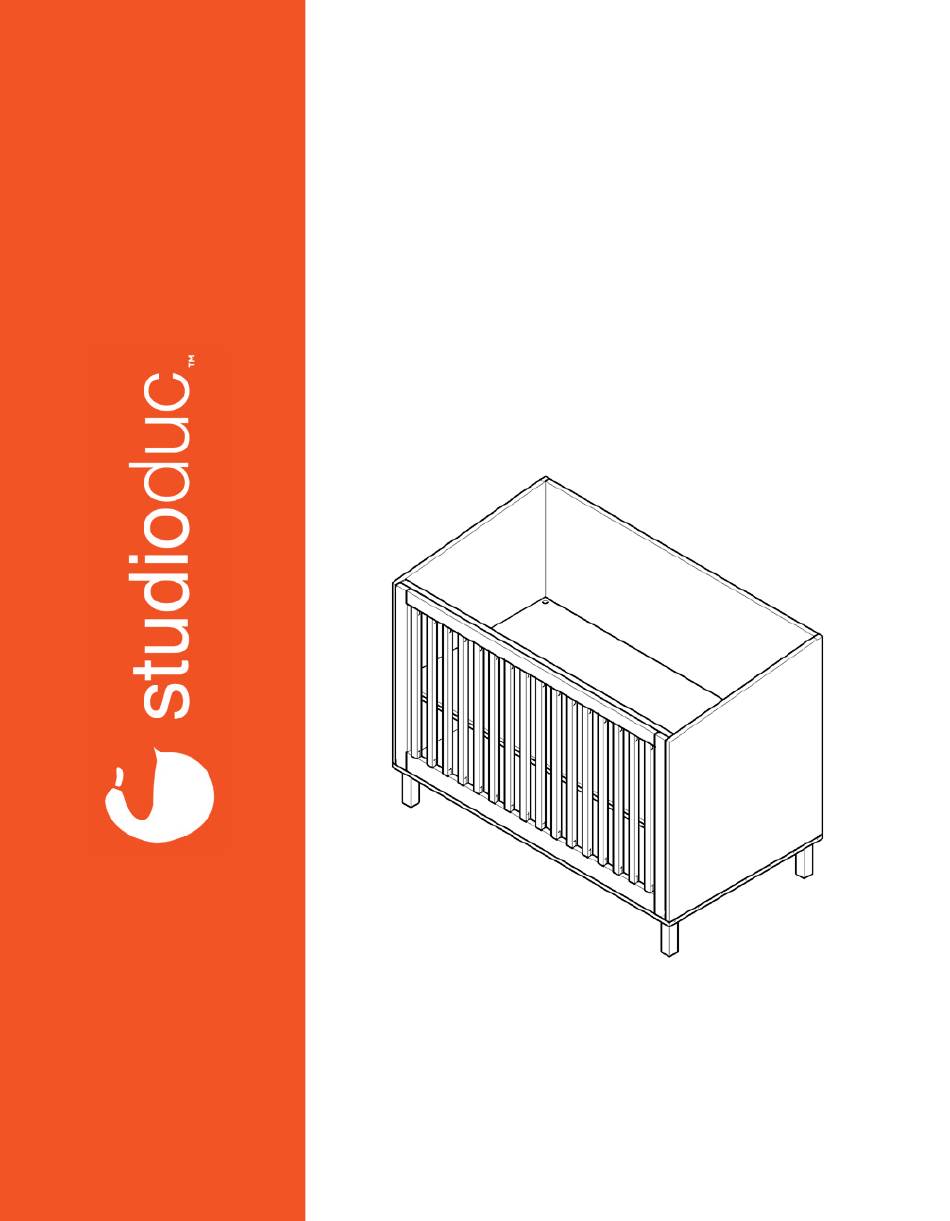

- Page 1 ASSEMBLY INSTRUCTIONS indi crib a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
- Page 5 Please check contents against the components list in these instructions. Also, please ensure there was no damage that may have occurred in shipping. If any components are missing or you find any damage, please contact ducduc before continuing. Read all the instructions before use of the crib. Please remember to securely tighten all bolts and fasteners, and periodically check to make sure every component is properly and securely in place and all bolts and fasteners are tight.
-
Page 6: Maintenance
MAINTENANCE: Periodically check to make sure every component is properly and securely in place and all bolts and fasteners are tight. CLEANING: Do not scratch or chip the finish. Do not use abrasive chemicals for cleaning. Clean with mild soap on a soft rag. Rinse and dry thoroughly. If you ever refinish this furniture, be sure to use only a non-toxic finish specified for children’s furniture. - Page 7 WARNING Failure to follow these warnings and the assembly instructions could result in serious injury or death. Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE. Infants can su ocate on soft bedding. Never add a pillow or comforter. Never place additional padding under infant.
- Page 8 WHAT’S IN THE BOX: R side panel L side panel back panel bottom panel mattress panel F (x4) side rail foot hammer cap K (x8) L (x8) M (x8) J (x4) mattress support bolt 5/16” locking washer 5/16” flat washer mattress support pin...
- Page 9 WHAT YOU’LL NEED: household hammer or phillips head screwdriver rubber mallet 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
- Page 10 lean bottom panel (B) against a wall as shown. insert the threaded bolt on one foot (F) into one hole on bottom panel (B). from the opposite side, place one flat washer (M) and one locking washer (L) on top of threaded bolt as shown.
- Page 11 lean L side panel (A2) against a wall as shown. still confused? scan this code to watch the assembly video!
- Page 12 apply hammer cap (G) to the head of a household hammer. insert connectors on back panel (D) into slots on L side panel (A2). push down at the connection to lock into place or use hammer with hammer cap (G) if needed. important! be sure the mattress panel...
- Page 13 insert connectors on back panel (D) into slots on R side panel (A1). push down at the connection to lock into place or use hammer with hammer cap (G) if needed. still confused? scan this code to watch the assembly video!
- Page 14 insert connectors on side rail (C) into slots on both side panels (A1 + A2). push down at the connections to lock into place. still confused? scan this code to watch the assembly video!
- Page 15 set the assembled crib base (B + F) as shown in the area where the crib will remain. with a friend, gently lift the assembled crib upper (A1, A1, C, + D) and set on top of the assembled crib base (B + F) making sure the connectors line up with the holes. once everything is aligned, use hammer with hammer cap (G) to tap until secure.
- Page 16 *these are also the instructions to follow for mattress panel adjustment* the mattress height should be lowered as your baby grows to ensure that he/she does not climb out of the crib. when child is able to pull to standing position, set mattress to lowest position and remove bumper pads, large toys and other objects that could serve as steps for climbing out.
- Page 17 place mattress panel (E) into the assembled crib so each mattress support pin (J) is inserted into a hole. duc insider tip! tilt mattress panel down as shown when placing inside the crib for an easy and smooth transition. still confused? scan this code to watch the assembly video!
- Page 18 place flat washer (M) and locking washer (L) on top of mattress support pin (J) as shown. then, use a philips head screwdriver and mattress suport bolt (K) to secure into place. repeat on all 4 sides. still confused? scan this code to watch the assembly video!
- Page 19 yippee! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 1201 ducducnyc.com ny, ny 10016...
