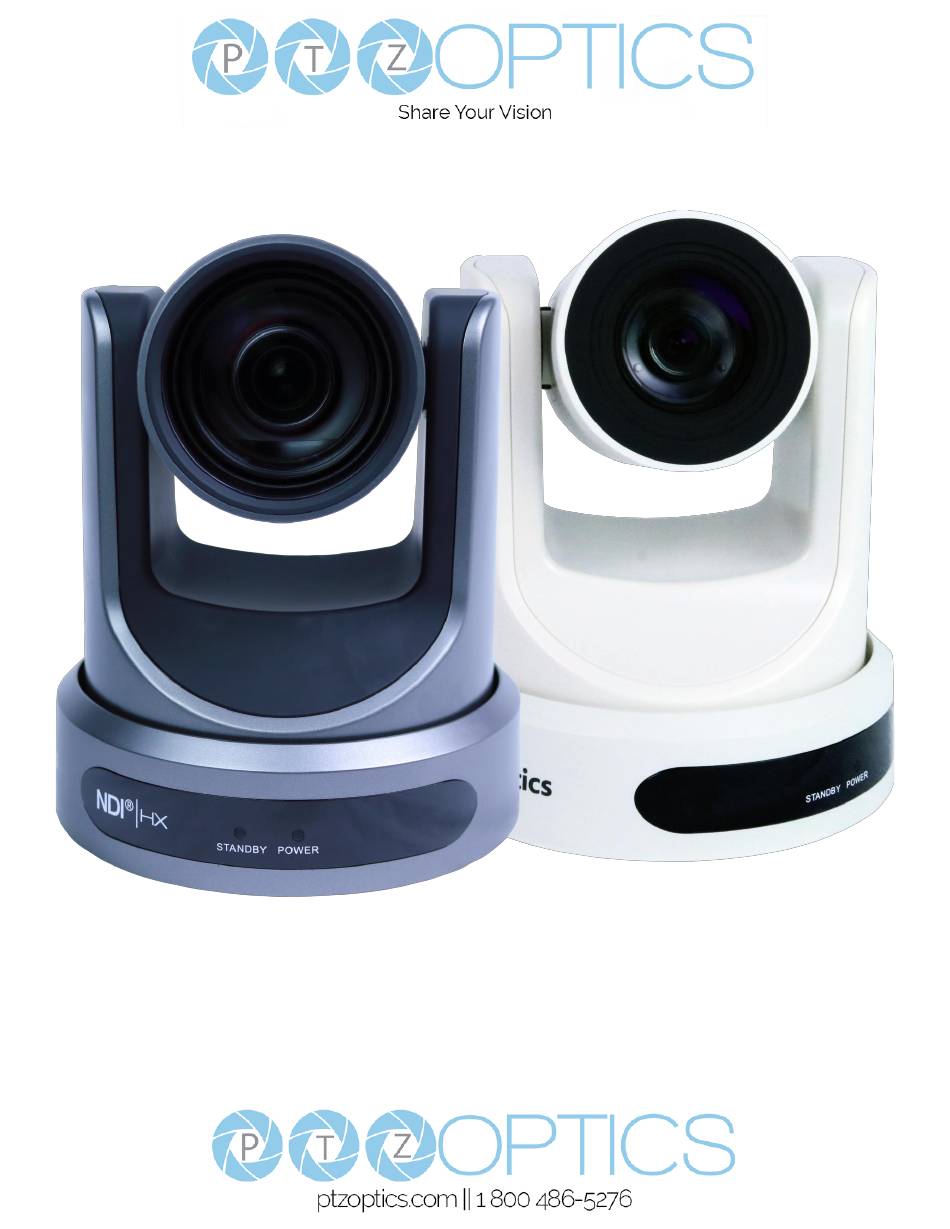

- Page 1 PTZOptics 20X G2 with USB 3.0 User Manual Model Nos. PT20X-USB-GY-G2 & PT20X-USB-WH-G2 V2.0 (English) Please check ptzoptics.com for the most up to date version of this document.
-
Page 2: Table Of Contents
Changelog ..................................41 Copyright Notice The entire contents of this manual / guide, whose copyright belongs to PTZOptics, may not be cloned, copied, or translated in any way without the explicit permission of the company. The product specifications referred to in this document are for reference only and as such are subject to updating at any time without prior notice. -
Page 3: Preface
Ensure that there are no obstacles in the pan or tilt ranges of the camera lens. Never power the camera on before installation is complete. • Do not dismantle the camera – PTZOptics is not responsible for any unauthorized modification or dismantling. Rev 2.0 6/21... -
Page 4: Warranty
Warranty PTZOptics includes a limited parts & labor warranty for all PTZOptics manufactured cameras. The warranty is valid only if PTZOptics receives proper notice of such defects during the warranty period. PTZOptics, at its option, will repair or replace products that prove to be defective. PTZOptics manufacturers its hardware products from parts and components that are new or equivalent to new in accordance with industry standard practices. -
Page 5: Connection Guide
Connection Guide 1. Line In 3.5mm audio connection 2. CVBS 3.5mm composite video connection 3. System Select Dial Video output resolution selector (See figure below) 4. RS485 2-pin phoenix connection for joystick controller 5. RS-232 In 8-pin mini din connection for joystick controller 6. -
Page 6: Features
Support for ultra-high FPS mode (1280x720p @ 120 frames per second) over network stream. CVBS (composite video) output via 3.5mm connector (non-simultaneous, 480i or 576i resolutions) • Control and Settings PTZOptics VISCA over IP IR Remote Control Web-based IP remote control interface RS-232 & RS-485 VISCA, Pelco-D, & Pelco-P control P/T/Z Preset Motion Sync •... -
Page 7: Technical Specifications
Technical Specifications Model PT20X-USB-GY-G2 and PT20X-USB-WH-G2 Type PTZOptics Color Video Camera with USB 3.0 HD 1080p Camera 1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94* Video System CVBS: 576i-30, 480i-30 *Broadcast framerates are considered BETA features and may not be supported by all platforms. 1/2.7” CMOS, Effective Pixel: 2.07M... -
Page 8: Ir Remote Controller Guide
5.56” W x 5.88” D 6.88” H (8.0” H max height w/ tilt up) Size in. (W x D x H) 142mm W x 150mm D x 175” H (204mm H max height w/ tilt up) Size mm. (W x D x H) Camera Weight 3.00 lbs. - Page 9 7. On Screen Display Menu Control 11. Camera Shortcuts > > : Display OSD menu in English > > : Display OSD menu in Chinese > > : Show IP address > > : Quickly restore the default settings > >...
-
Page 10: Dimensional Drawings (Mm)
Dimensional Drawings (mm) Rev 2.0 6/21... -
Page 11: Usb Control Of Camera
USB Control of Camera To gain control of the PTZOptics camera, you will first need to connect the USB 3.0 cable to the camera and to a PC. USB 3.0 ports are backwards compatible with USB 2.0 devices. USB 2.0 ports are not completely forward compatible with USB 3.0 devices. -
Page 12: Rs-232 Interface
For Initial Connection RS-232 Interface Camera PC/Controller DB-9 1. DTR 1. CD 2. DSR 2. RXD 3. TXD 3. TXD 4. GND 4. DTR 5. RXD 5. GND 6. GND 6. DSR 7. IR OUT 7. RTS 8. NC 8. CTS 9. -
Page 13: Serial Communication Control
RS-485 Daisy-Chain connection RS-485 Home Run connection Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with an RS-232 and/or RS-485 serial interface. RS-232 Communication Control The camera can be controlled via RS-232. The parameters for RS-232C are as follows: Baud rate: 2400, 4800, 9600, or 38400 bps. -
Page 14: Ptzoptics Visca Command List
PTZOptics VISCA Command List Part 1: Camera Issued Commands ACK / Completion Messages Command Function Command Packet Comments z0 4y FF Returned when the command is accepted. (y: Socket No.) ACK / Completion z0 5y FF Messages Completion Returned when the command has been executed. - Page 15 Part 2: PTZOptics VISCA Command List Command Function Command Packet Comments 8x 01 04 00 02 FF CAM_Power Power On/Off 8x 01 04 00 03 FF 8x 01 04 07 00 FF Stop 8x 01 04 07 02 FF Tele (Standard)
- Page 16 8x 01 04 0E 02 FF ExpComp setting 8x 01 04 0E 03 FF Down 8x 01 04 4E 00 00 0p 0q FF Direct pq: ExpComp position 8x 01 04 33 02 FF CAM_Backlight Backlight Compensation On / Off 8x 01 04 33 03 FF p: Flicker settings - (0: Off, 1: 50Hz, 2: 8x 01 04 23 0p FF...
- Page 17 8x 2a 02 a0 04 0p FF CAM_UACStatus Toggle USB Audio p=2: On, p=3: Off x = Camera Address + 8 Part 3: PTZOptics VISCA Query Command List y0 50 02 FF 8x 09 04 00 FF y0 50 03 FF CAM_PowerInq...
- Page 18 8x 09 04 A2 FF y0 50 00 00 0p 0q FF CAM_ContrastInq pq: Contrast position y0 50 00 FF y0 50 01 FF Flip-H 8x 09 04 A4 FF CAM_FlipInq y0 50 02 FF Flip-V y0 50 03 FF Flip-HV y0 50 00 FF 8x 09 04 AA FF...
- Page 19 Part 4: PTZOptics VISCA over IP Command List Command Function Command Packet Comments 81 01 04 00 02 FF CAM_Power Power On/Off 81 01 04 00 03 FF 81 01 04 07 00 FF Stop 81 01 04 07 02 FF...
- Page 20 81 01 04 0E 02 FF ExpComp setting 81 01 04 0E 03 FF Down 81 01 04 4E 00 00 0p 0q FF Direct pq: ExpComp position 81 01 04 33 02 FF CAM_Backlight Backlight Compensation On / Off 81 01 04 33 03 FF p: Flicker settings - (0: Off, 1: 50Hz, 2: 81 01 04 23 0p FF...
