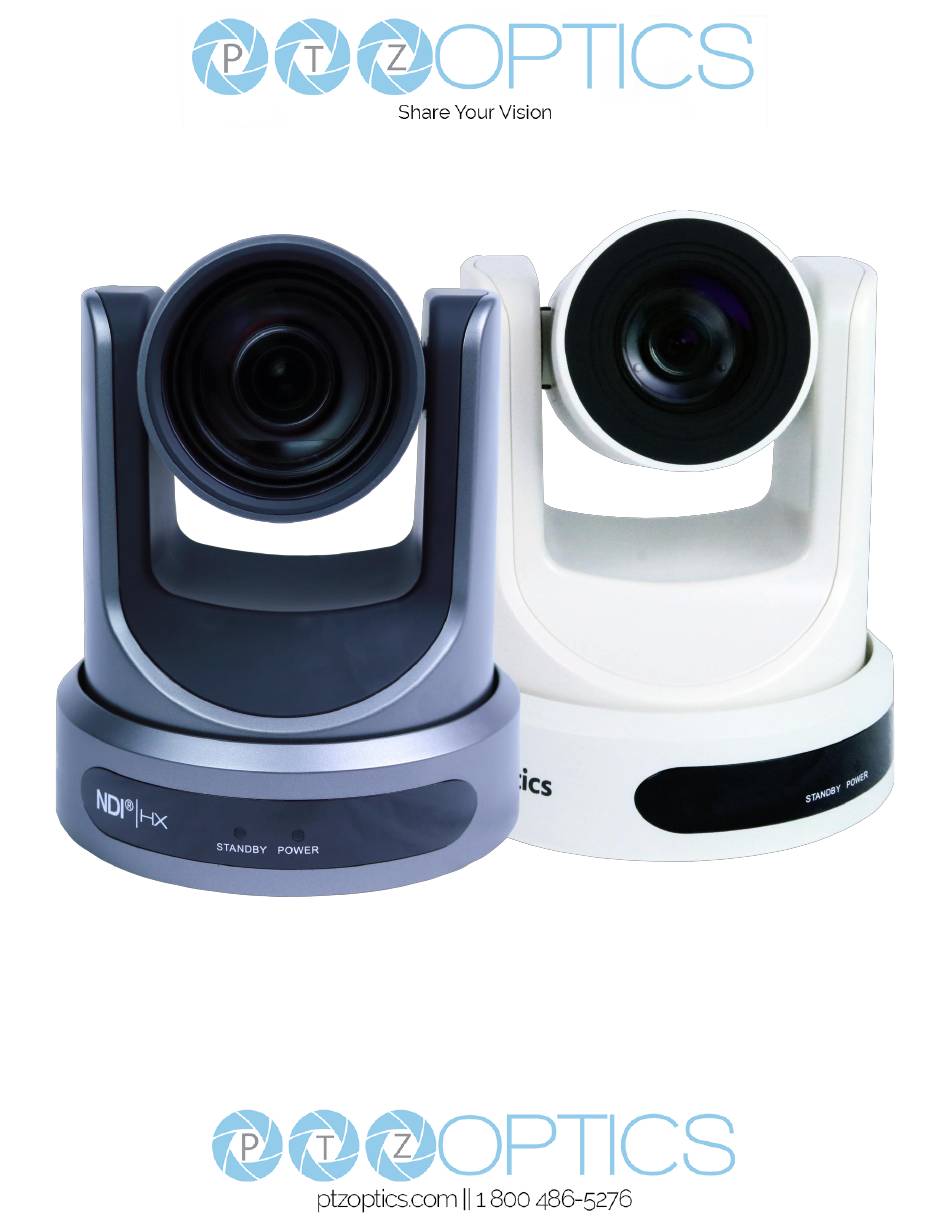

PTZOptics 20X G2 with USB 3.0
User Manual
Model Nos. PT20X-USB-GY-G2 & PT20X-USB-WH-G2
V2.0
(English)
Please check ptzoptics.com for the most up to date version of this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT20X-USB-GY-G2 and is the answer not in the manual?

Questions and answers

Related Manuals for PTZOptics PT20X-USB-GY-G2

Summary of Contents for PTZOptics PT20X-USB-GY-G2

  • Page 1 PTZOptics 20X G2 with USB 3.0 User Manual Model Nos. PT20X-USB-GY-G2 & PT20X-USB-WH-G2 V2.0 (English) Please check ptzoptics.com for the most up to date version of this document.

  • Page 2: Table Of Contents

    Changelog ..................................41 Copyright Notice The entire contents of this manual / guide, whose copyright belongs to PTZOptics, may not be cloned, copied, or translated in any way without the explicit permission of the company. The product specifications referred to in this document are for reference only and as such are subject to updating at any time without prior notice.

  • Page 3: Preface

    Ensure that there are no obstacles in the pan or tilt ranges of the camera lens. Never power the camera on before installation is complete. • Do not dismantle the camera – PTZOptics is not responsible for any unauthorized modification or dismantling. Rev 2.0 6/21...

  • Page 4: Warranty

    Warranty PTZOptics includes a limited parts & labor warranty for all PTZOptics manufactured cameras. The warranty is valid only if PTZOptics receives proper notice of such defects during the warranty period. PTZOptics, at its option, will repair or replace products that prove to be defective. PTZOptics manufacturers its hardware products from parts and components that are new or equivalent to new in accordance with industry standard practices.

  • Page 5: Connection Guide

    Connection Guide 1. Line In 3.5mm audio connection 2. CVBS 3.5mm composite video connection 3. System Select Dial Video output resolution selector (See figure below) 4. RS485 2-pin phoenix connection for joystick controller 5. RS-232 In 8-pin mini din connection for joystick controller 6.

  • Page 6: Features

    Support for ultra-high FPS mode (1280x720p @ 120 frames per second) over network stream. CVBS (composite video) output via 3.5mm connector (non-simultaneous, 480i or 576i resolutions) • Control and Settings PTZOptics VISCA over IP IR Remote Control Web-based IP remote control interface RS-232 & RS-485 VISCA, Pelco-D, & Pelco-P control P/T/Z Preset Motion Sync •...

  • Page 7: Technical Specifications

    Technical Specifications Model PT20X-USB-GY-G2 and PT20X-USB-WH-G2 Type PTZOptics Color Video Camera with USB 3.0 HD 1080p Camera 1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94* Video System CVBS: 576i-30, 480i-30 *Broadcast framerates are considered BETA features and may not be supported by all platforms. 1/2.7” CMOS, Effective Pixel: 2.07M...

  • Page 8: Ir Remote Controller Guide

    5.56” W x 5.88” D 6.88” H (8.0” H max height w/ tilt up) Size in. (W x D x H) 142mm W x 150mm D x 175” H (204mm H max height w/ tilt up) Size mm. (W x D x H) Camera Weight 3.00 lbs.
  • Page 9 7. On Screen Display Menu Control 11. Camera Shortcuts > > : Display OSD menu in English > > : Display OSD menu in Chinese > > : Show IP address > > : Quickly restore the default settings > >...

  • Page 10: Dimensional Drawings (Mm)

    Dimensional Drawings (mm) Rev 2.0 6/21...

  • Page 11: Usb Control Of Camera

    USB Control of Camera To gain control of the PTZOptics camera, you will first need to connect the USB 3.0 cable to the camera and to a PC. USB 3.0 ports are backwards compatible with USB 2.0 devices. USB 2.0 ports are not completely forward compatible with USB 3.0 devices.

  • Page 12: Rs-232 Interface

    For Initial Connection RS-232 Interface Camera PC/Controller DB-9 1. DTR 1. CD 2. DSR 2. RXD 3. TXD 3. TXD 4. GND 4. DTR 5. RXD 5. GND 6. GND 6. DSR 7. IR OUT 7. RTS 8. NC 8. CTS 9.

  • Page 13: Serial Communication Control

    RS-485 Daisy-Chain connection RS-485 Home Run connection Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with an RS-232 and/or RS-485 serial interface. RS-232 Communication Control The camera can be controlled via RS-232. The parameters for RS-232C are as follows: Baud rate: 2400, 4800, 9600, or 38400 bps.

  • Page 14: Ptzoptics Visca Command List

    PTZOptics VISCA Command List Part 1: Camera Issued Commands ACK / Completion Messages Command Function Command Packet Comments z0 4y FF Returned when the command is accepted. (y: Socket No.) ACK / Completion z0 5y FF Messages Completion Returned when the command has been executed.
  • Page 15 Part 2: PTZOptics VISCA Command List Command Function Command Packet Comments 8x 01 04 00 02 FF CAM_Power Power On/Off 8x 01 04 00 03 FF 8x 01 04 07 00 FF Stop 8x 01 04 07 02 FF Tele (Standard)
  • Page 16 8x 01 04 0E 02 FF ExpComp setting 8x 01 04 0E 03 FF Down 8x 01 04 4E 00 00 0p 0q FF Direct pq: ExpComp position 8x 01 04 33 02 FF CAM_Backlight Backlight Compensation On / Off 8x 01 04 33 03 FF p: Flicker settings - (0: Off, 1: 50Hz, 2: 8x 01 04 23 0p FF...
  • Page 17 8x 2a 02 a0 04 0p FF CAM_UACStatus Toggle USB Audio p=2: On, p=3: Off x = Camera Address + 8 Part 3: PTZOptics VISCA Query Command List y0 50 02 FF 8x 09 04 00 FF y0 50 03 FF CAM_PowerInq...
  • Page 18 8x 09 04 A2 FF y0 50 00 00 0p 0q FF CAM_ContrastInq pq: Contrast position y0 50 00 FF y0 50 01 FF Flip-H 8x 09 04 A4 FF CAM_FlipInq y0 50 02 FF Flip-V y0 50 03 FF Flip-HV y0 50 00 FF 8x 09 04 AA FF...
  • Page 19 Part 4: PTZOptics VISCA over IP Command List Command Function Command Packet Comments 81 01 04 00 02 FF CAM_Power Power On/Off 81 01 04 00 03 FF 81 01 04 07 00 FF Stop 81 01 04 07 02 FF...
  • Page 20 81 01 04 0E 02 FF ExpComp setting 81 01 04 0E 03 FF Down 81 01 04 4E 00 00 0p 0q FF Direct pq: ExpComp position 81 01 04 33 02 FF CAM_Backlight Backlight Compensation On / Off 81 01 04 33 03 FF p: Flicker settings - (0: Off, 1: 50Hz, 2: 81 01 04 23 0p FF...
  • Page 21 PTZ MS Lower Speed Limit 81 2a 02 a0 04 0p FF CAM_UACStatus Toggle USB Audio p=2: On, p=3: Off Part 5: PTZOptics VISCA over IP Query Command List y0 50 02 FF 81 09 04 00 FF y0 50 03 FF CAM_PowerInq...
  • Page 22 81 09 04 A2 FF y0 50 00 00 0p 0q FF CAM_ContrastInq pq: Contrast position y0 50 00 FF y0 50 01 FF Flip-H 81 09 04 A4 FF CAM_FlipInq y0 50 02 FF Flip-V y0 50 03 FF Flip-HV y0 50 00 FF 81 09 04 AA FF...
  • Page 23 Part 6: Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Left 0xFF Address 0x00...

  • Page 24: On Screen Display Menu

    Backlight: Backlight Compensation mode On Screen Display Menu Options include: On, Off (Only available in Auto mode) Bright: Brightness Intensity. Main Menu Options include: 0 ~ 17 (Only available in Bright mode) Gain Limit: Maximum Gain Limit. There are many ways to adjust the camera’s On Screen Options include: 0 ~ 15 Display (OSD) Menu.
  • Page 25 P/T/Z BG Tuning: Blue Gain Tuning. Options include: -10 ~ +10 (Only available in Auto, OnePush, & VAR) Move the cursor to the “P/T/Z” option and press the Saturation: Color Saturation value. [HOME] button to enter the P/T/Z page, as shown in the Options include: 60% ~ 200% figure below.
  • Page 26 Setup Communication Setup Move the cursor to the “Setup” option and press the Move the cursor to the “Communication Setup” option [HOME] button to enter the Setup page, as shown in the and press the [HOME] button to enter the figure below.

  • Page 27: Network Connection

    Network Connection 1. Operating Environment Operating System: Windows 2000 / 2003 / XP / Vista / 7 / 8.1 / 10, Mac Catalina and later Network Protocol: TCP/IP Client PC: P4 / 128M RAM / 40GHD / support for scaled graphics card, support for DirectX8.0 or more advanced version. 2.

  • Page 28: Assigning An Ip Address

    Assigning an IP Address By default, the camera has the IP address “192.168.100.88”. You have several methods to change this IP address to match your network scheme. Please see the instructions below for your preferred setup. DHCP If your network supports DHCP, you can have it automatically assign an IP using one of the methods below. •...
  • Page 29 Upgrade Tab The Upgrade Tab allows you to firmware upgrade the camera. To acquire the latest firmware for your PTZOptics camera, for to https://ptzoptics.com/firmware-finder. To ensure you follow the proper firmware upgrade method, follow the PTZOptics SDI/NDI Firmware Upgrade Instructions.
  • Page 30 Backup Tab The Backup tab allows you to backup and restore files. For best results, name each backup file something specific to the camera (such as the serial number). These files consist of: • Serial Number • MAC Address • Presets •...

  • Page 31: Discovering Your Network Info

    Discovering your Network Info To discover your IP address range/scheme, Subnet Mask, Gateway, & First DNS, follow the instructions below for Windows or Mac OS. You may need to talk with your IT department to obtain this information. Windows 1. Open the Start menu and type “CMD” into the search bar. 2.

  • Page 32: Camera Web Interface

    Camera Web Interface The Web Interface allows you to control the camera, view the video feed, and adjust many of the camera’s settings. Menu The Menu allows you to traverse the Web Interface. By default, the “Live” option is selected. Live This tab allows you to view the video feed of the camera.
  • Page 33 Video Video Format: Supports 50Hz (PAL), 60Hz (NTSC), & Dial Priority formats. Encode Level: Supports baseline, mainprofile, highprofile, & SVC-T. NDI Preset: Supports Off, Low, Medium, & High. Encode Protocol: Supports H.264, H.265, & MJPEG Resolution: The first stream supports 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360.
  • Page 34 Image Brightness: Brightness slider. Default: 7 Saturation: Saturation slider. Default: 4 Contrast: Contrast slider. Default: 10 Sharpness: Sharpness slider. Default: 3 Hue: hue slider. Default: 7 Flip & Mirror: Check the Flip and/or Mirror button to rotate the image accordingly. Audio Audio Switch: Enable / Disable audio embedding.
  • Page 35 Network Rev 2.0 6/21...
  • Page 36 LAN Settings: The LAN Settings section allows you to adjust the IP parameters of the camera. The default IP address of the camera is 192.168.100.99. You cannot change the MAC address. IP Configuration Type: Fixed IP Address (Static) & Dynamic IP Address (DHCP). IP Address: Camera’s IP address.
  • Page 37 Information The Information section displays the device information, firmware version, & device friendly name. You can adjust the device friendly name as needed to designate the camera. Language The Language selection dropdown allows you to change the language of the Web Interface. Select either “English”, “Chinese”...

  • Page 38: Ptzoptics Http-Cgi Camera Control

    PTZOptics HTTP-CGI Camera Control HTTP-CGI – Control Pan & Tilt http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[pan speed]&[tilt speed] down left right leftup rightup leftdown rightdown ptzstop [Action]: [Pan Speed]: (Slowest) ~ (Fastest) [Tilt Speed]: (Slowest) ~ Fastest) Zoom http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[zoom speed] [Action]: zoomin zoomout...
  • Page 39 HTTP-CGI – Navigation OSD Access http://[camera ip]/cgi-bin/param.cgi?navigate_mode&[mode] [Mode]: OSD Menu Navigation http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd&[action] down left right [Action]: OSD Menu Selection http://[camera ip]/cgi-bin/param.cgi?navigate_mode&[mode] CONFIRM OSD_BACK [Mode]: HTTP-CGI – Image Adjustment Image Settings http://[camera ip]/cgi-bin/param.cgi?post_image_value&[mode]&[level] [Mode]: bright saturation contrast sharpness [Level]: Image Orientation http://[camera ip]/cgi-bin/param.cgi?post_image_value&[mode]&[state] flip mirror...

  • Page 40: Photobooth Functionality

    Photobooth Functionality Your PTZOptics camera can quickly and easily take a series of four (4) still image or video files that are stored on the camera and made accessible with a standard web browser on the same network. Photos You have two (2) options to initiate a series of four (4) still images to be captured…...

  • Page 41: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Unqualified Applications • Do not shoot extremely bright objects for a long period of time, such as sunlight, ultra-bright light sources, etc. • Do not operate close to powerful electromagnetic radiation, such as TV or radio transmitters, etc. Troubleshooting •...

  • Page 42: Certifications

    Certifications • FCC – Tested under FCC 47 CFR Part 15, Subpart B, Class A:2011, ANSI C63.4 – 2014 • CE – Tested under EMC 2014/30/EU EN 55032:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55035:2017 • RoHS – Tested under RoHS Directive 2011/65/EU & 2015/863 IEC 62321-3-1:2013 IEC 62321-5:2013 IEC62321-4:2013+AMD1:2017...
