Ferno 430 Series Quick Start Manual

Models 430, 430P, 439 Restraints

Description

Ferno Models 430 and 430P Series Restraints ("the restraint")
®
provide a variety of strapping options to help secure a patient on
an ambulance cot, stretcher, or other piece of emergency-medical
equipment (the "equipment").
Model 430 Series are metal-buckle, primary-use restraints. Model
430P Series are plastic-buckle, secondary-use restraints. Select the
restraint that matches the intended use.
FERNO DEFINITIONS
Primary-Use Restraints are suitable for securing a patient
●
on compatible equipment during transport in a motor vehicle.
Secondary-Use Restraints ARE NOT suitable for securing
●
a patient during transport in a motor vehicle. They are for
temporary use to secure a patient on a backboard, hand-carried
stretcher, scoop stretcher, stair chair, or extrication device.
Transfer the patient onto an ambulance cot or other device
with primary restraints before transport in a motor vehicle.
Transport Restraint System is defined by Ferno as a set of
●
Primary-Use restraints used together to properly restrain a
patient in an ambulance.

Specifications

All restraints provide length-adjustment. Restraints are available
with black or orange webbing, and in a variety of lengths. See the
chart at right.
Model 430 are primary-use restraints. These restraints
●
feature a metal buckle and tang and are made of 51 mm (2")
nylon webbing
Model 430P are secondary-use restraints. These restraints
●
feature a plastic buckle and tang and are made of 51 mm (2")
polypropylene webbing.

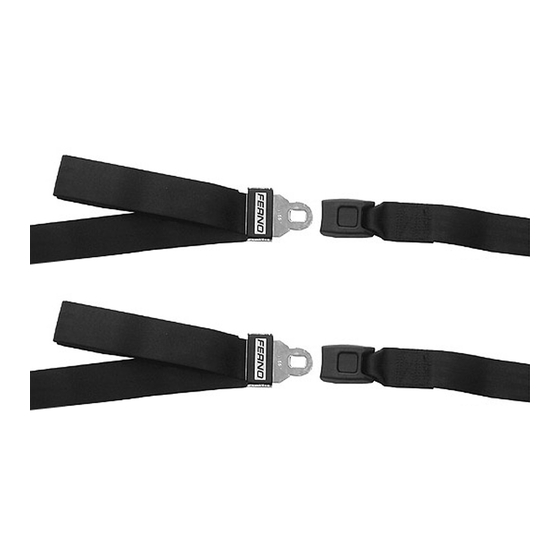

Model 439 is a set of three, 1-piece, 7' (2134 mm) Model 430
●
metal-buckle restraints in a vinyl carrying bag.
Load Limit: Model 430 (Metal Buckle)
When properly attached and used in conjunction with additional
restraints (not supplied) as specified in the equipment users'
manual, the restraint is capable of securing a patient weighing the
maximum allowable load limit of the equipment. Do not exceed
the load limit of the equipment.
Load Limit: Model 430P (Plastic Buckle)
When properly attached and used in conjunction with additional
restraints (not supplied) as specified in the equipment users'
manual, the restraint is capable of securing a patient until transfer
to an ambulance cot or other device with primary restraints. Do not
exceed the load limit of the equipment.
© Ferno-Washington, Inc 234-3545-00 February 2014
Models 430, 430P, 439
Restraints
Female Buckle/Receiver
Model 430 (Metal Buckle) Restraint
Female Buckle/Receiver
Model 430P (Plastic Buckle) Restraint
WARNING
Improper use of the restraint can cause injury. Attach and
use the restraint only as described in this manual.
Improper operation can cause injury. Operate the
restraint only as described in this manual.
Improper maintenance can cause injury. Maintain the
restraint only as described in this manual.
Important
Do not exceed the load limit of the equipment on
which the restraint is used. Refer to the equipment
users' manual for the equipment load limit.
Model 430 (Metal Buckle) Restraint
Style
2 pc., 5' (1524 mm)
2 pc., 7' (2134 mm)
2 pc., 9' (2743 mm)
1 pc., 7' (2134 mm)
1 pc., 9' (2743 mm)
Model 430P (Plastic Buckle) Restraint
Style
2 pc., 5' (1524 mm)
2 pc., 7' (2134 mm)
1 pc., 7' (2134 mm)
Model 439 (Metal Buckle) Restraints, Set of Three
Style
1 pc., 7' (2134 mm)
Male Buckle/Tang
Male Buckle/Tang
Black Orange
031-3892 031-3891
031-3911 031-3912
031-3305 031-4013
031-3910 031-3887
031-3899 031-3889
Black Orange
031-3797 031-3917
031-3801 031-3919
031-3894 031-4011
Black Orange
031-3083 031-2660
