November 2015
Introduction
TM
TM
ECP5
and ECP5-5G
Data Rate (SDR) interfaces, using the logic built into the Programmable I/O (PIO). SDR applications capture data
on one edge of a clock while DDR interfaces capture data on both the rising and falling edges of the clock, thus
doubling the performance. ECP5 and ECP5-5G device I/Os also have dedicated circuitry that is used along with
the DDR I/O to support DDR2, DDR3, DDR3L, LPDDR2 and LPDDR3 SDRAM memory interfaces.
This document discusses how to utilize the capabilities of the ECP5 and ECP5-5G devices to implement high-
speed generic DDR interface and the DDR memory interfaces. Refer to the Implementing DDR Memory Interfaces
section of this document for more information.
External Interface Description
This technical note uses two types of external interface definitions, centered and aligned. A centered external inter-
face means that, at the device pins, the clock is centered in the data opening. An aligned external interface means
that, at the device pins, the clock and data transition are aligned. This is also sometimes called edge-on-edge.
Figure 1 shows the external interface waveform for SDR and DDR.

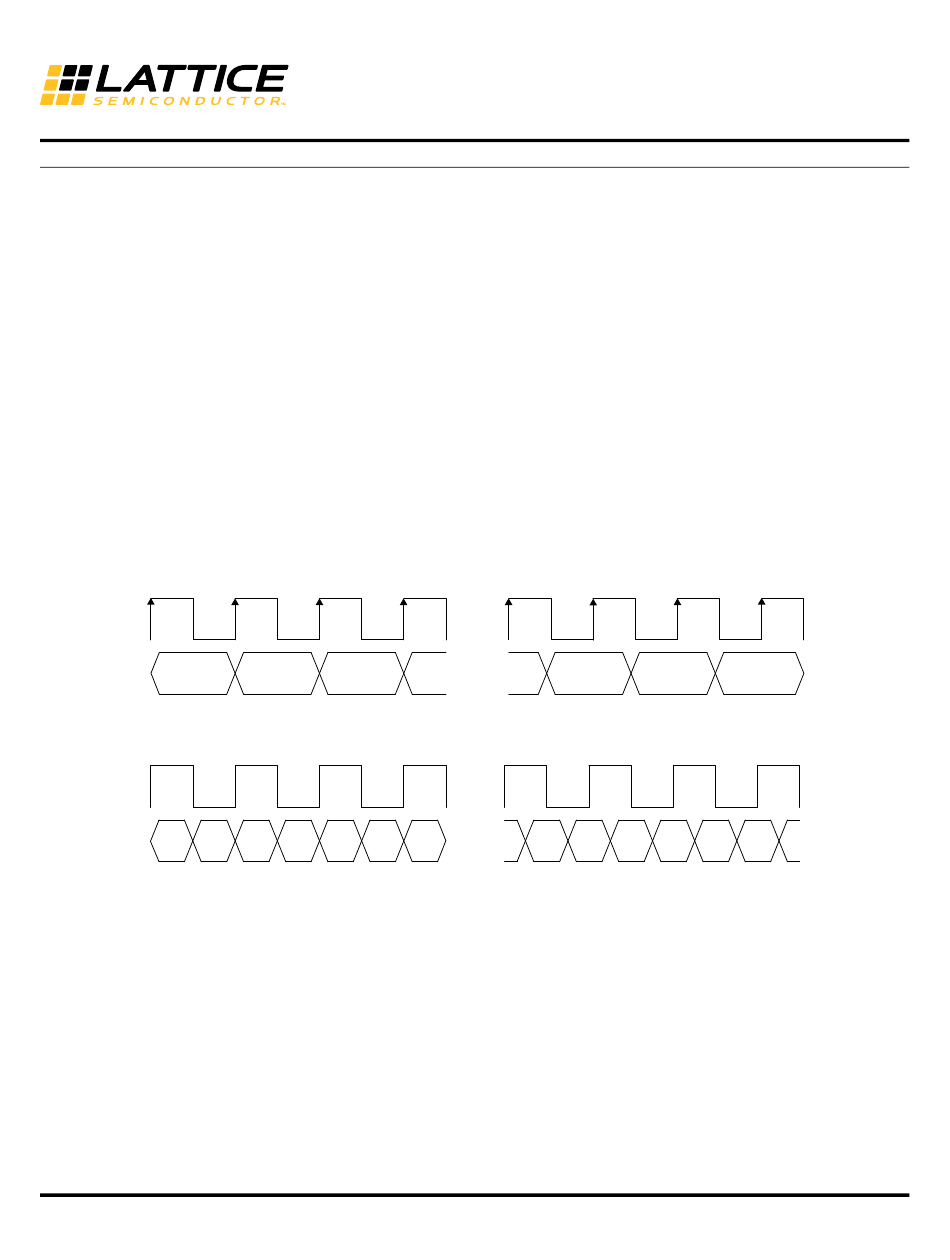

Figure 1. External Interface Definitions
The interfaces described are referenced as centered or aligned interfaces. An aligned interface will need to adjust
the clock location to satisfy the capture flip-flop setup and hold times. A centered interface will need to balance the
clock and data delay to the first flip-flop to maintain the setup and hold already provided.
© 2015 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal. All other brand
or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
www.latticesemi.com
devices support high-speed I/O interfaces, including Double Data Rate (DDR) and Single
SDR Aligned
DDR Aligned
ECP5 and ECP5-5G
High-Speed I/O Interface
SDR Centered
DDR Centered
1
Technical Note TN1265
TN1265_1.1
