Summary of Contents for Bluetti B300S

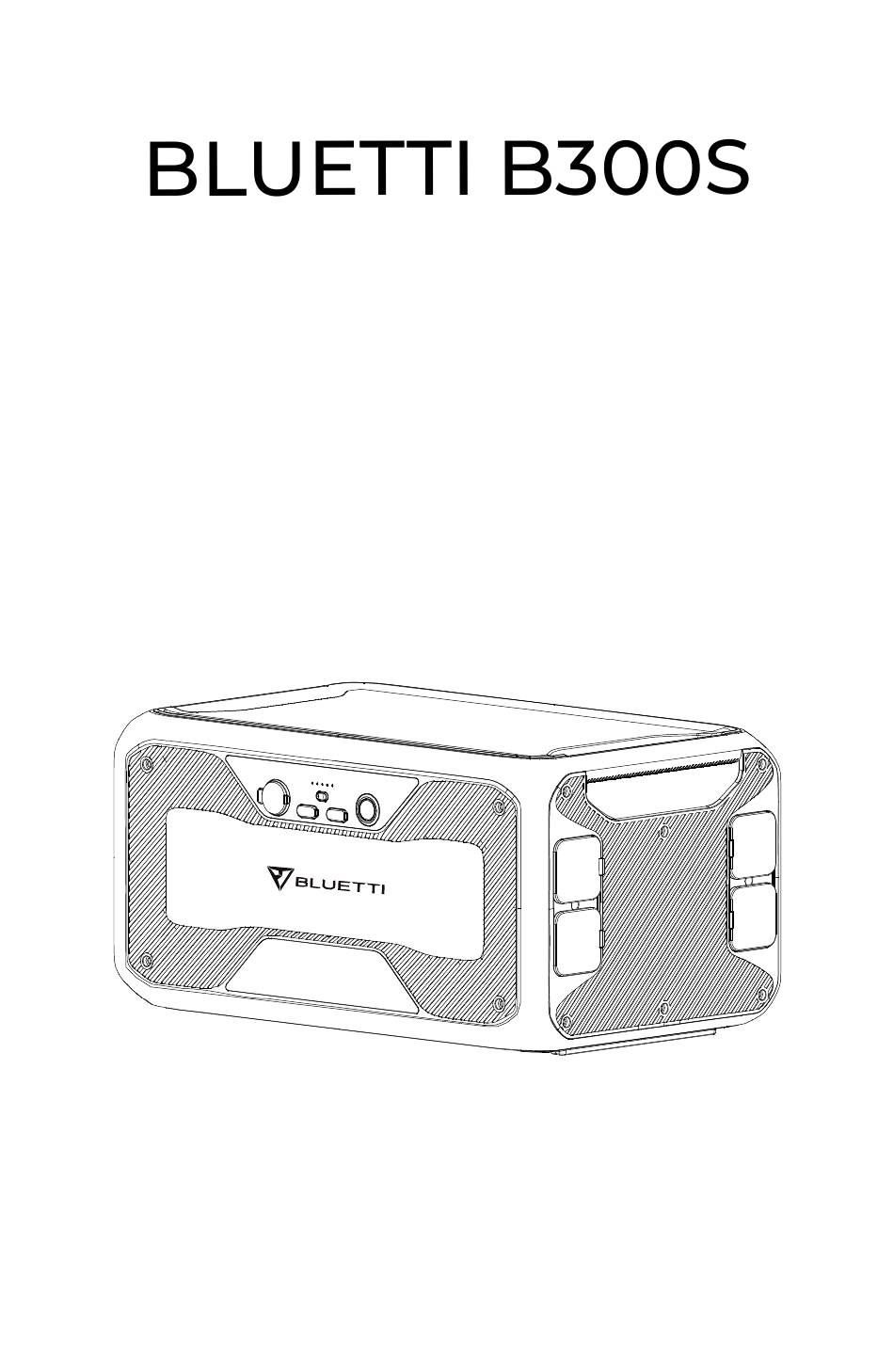

- Page 1 User Manual...
- Page 3 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 4: Table Of Contents
CONTENTS Before You Begin Safety Instructions General Safety Maintenance Handling & Storage What's In The Box Standard Packaging Product Overview Diagram Specifications Operation Powering On/Off BLUETTI App Charging Capacity Expansion Appendix FAQs (Frequently Asked Questions) FCC Warning Technical Support... -
Page 5: Before You Begin
• BLUETTI recommends that you use genuine accessories from BLUETTI. • BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI. • For your safety and benefit, please read carefully before using and keep it handy for future... -
Page 6: Safety Instructions
Safety Instructions General Safety BLUETTI products are developed to be safe and reliable. Please read this guide for important safety information about your device. The guide is intended to help you be more comfortable and productive while using this device. Failure to follow these guidelines for proper set up, use, and care for your device may cause damage to this unit and injury to yourself or others. -
Page 7: Maintenance
• Use approved battery and accessories ONLY. Improper use, or use of unapproved or incompatible batteries or components may result in a risk of fire, explosion, or other hazards, and may invalidate any approval or warranty. • Turn off the unit IMMEDIATELY in case of malfunction. •... -
Page 8: What's In The Box
What's In The Box Standard Packaging Portable Power Station P150D Battery DC Input Cable Expansion Cable User Manual Warranty Card * Below accessories are not included in standard packaging and can be purchased separately at https://www.bluettipower.com/. AC Adapter Car Charging Cable Lead-acid Battery Charging Cable D050S Charging... - Page 9 AC Adapter (No cable included) + MC4 to DC7909 Cable: 47in/120cm; 5.5in/14cm. Note: All measurements are for reference only. Package details are subject to change without prior notice. Works with D050S DC charging enhancer and connects to the adapter input port. Connects B300S directly with the lead-acid battery.
-
Page 10: Product Overview
3. USB-C PD3.0 8. PV Input 4. DC Power Button 9. Adapter Input 5. 18W USB-A Port * These lights represent the power level, one light for 20%. When it drops to 20%, please recharge the B300S for extended lifespan. -
Page 11: Specifications
Car Charging Power 196.8W Max. Voltage 12/24VDC Current 8.2A Max. Capacity Expansion Voltage 51.2VDC Current 120A Note: When connecting B300S with the T500 adapter or AC500 to the grid, B300S is able to self-heat and get charged even at -4°F/-20°C. -
Page 12: Operation
Note: Unplug to turn off the unit. Connect to the power source and it turns on automatically. BLUETTI APP Download the BLUETTI App from Google Play or App Store. The remaining battery capacity can be viewed from the App when connected with AC500. -
Page 13: Charging
Simply plug the B300S into a standard wall outlet and start charging. Wall Outlet AC Adapter PV Charging Connect the solar panels (in series or parallel) to B300S with the DC input cable. Note: Please make sure your solar panels comply with: : 12-60V : 12-60V Input Power: 500W Max E.g:... - Page 14 Car Charging Connect the B300S to the vehicle plug-in cigarette lighter port via the DC input cable and car charging cable. DC Input Cable Car Charging Cable Dual Charging The B300S also supports charging from adapter and solar panels at the same time.
-
Page 15: Capacity Expansion
Capacity Expansion Connect the B300S with BLUETTI AC500 power station by P150D battery expansion cable. (P150D Battery Expansion Cable) a: Enable/disable the battery expansion function. b: Lock/unlock the connection. Barb down Barb down ① ① Lock ② Lock ② AC500 + 1*B300S = 4500W Max. / 3072Wh... - Page 16 AC500 + 6*B300S = 5000W Max. / 18432Wh B300S Capacity Expansion Tutorial Note: Press the power button either on AC500 or B300S to turn on the AC500 + B300S combo. When AC500 is connected to the grid or solar panels, the combo turns on automatically.
-
Page 17: Appendix
DO NOT mix different types of solar panels. Q: How to upgrade the firmware of B300S? A: Connect it to the AC500 or other compatible power station, pair the system with BLUETTI App, and you can over-the-air (OTA) upgrade the firmware including ARM, DSP, HMI, and BMS. -
Page 18: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Technical Support
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.com/ Tel: 833-988-3663 / 702-463-4792 Mail: service@bluettipower.com Add: 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
