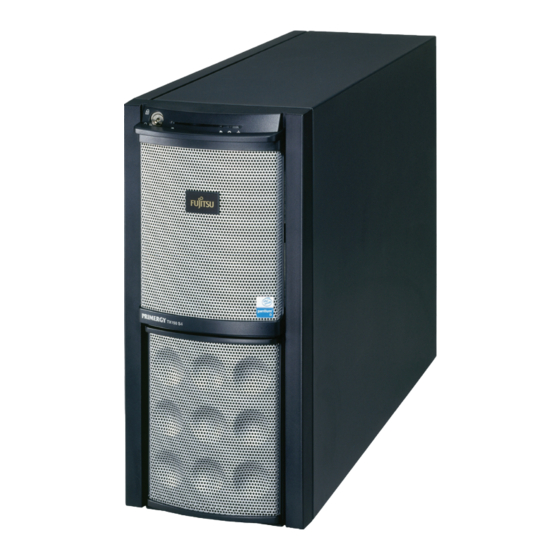

PRIMERGY
PRIMERGY TX150 S4
Server System
Operating Manual
Xenia Fierley
Fujitsu Siemens Computers GmbH
cognitas PS
81730 München
e-mail: e-mail:manuals@fujitsu-siemens.com
Tel.: (089) 61001-157
Fax: (++49) 700 / 372 00000
U41616-J-Z156-1-76
Sprachen: En
Edition August 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX150 S4 and is the answer not in the manual?

Questions and answers

Related Manuals for PRIMERGY TX150 S4

Summary of Contents for PRIMERGY TX150 S4

  • Page 1 PRIMERGY PRIMERGY TX150 S4 Server System Operating Manual Xenia Fierley Fujitsu Siemens Computers GmbH cognitas PS 81730 München e-mail: e-mail:manuals@fujitsu-siemens.com Tel.: (089) 61001-157 Fax: (++49) 700 / 372 00000 U41616-J-Z156-1-76 Sprachen: En Edition August 2005...
  • Page 2 Comments… Suggestions… Corrections… The User Documentation Department would like to know your opinion of this manual. Your feedback helps us optimize our documentation to suit your individual needs. Fax forms for sending us your comments are included in the back of the manual. There you will also find the addresses of the relevant User Documentation Department.

  • Page 3: Table Of Contents

    Contents Introduction ......5 Overview of the Documentation ....5 Features .
  • Page 4 Contents Property and Data Protection ....Mechanical Access Protection ....BIOS Setup Security Functions .

  • Page 5: Introduction

    19-inch rack systems. In this case the server occupies 5 height units (HU) in the rack. The PRIMERGY TX150 S4 server offers a high level of reliability and availability through highly developed hardware and software components. These includes...
  • Page 6 – Technical Manual for the system board D2239 (PDF file available on the ServerBooks CD) – “BIOS Setup V4.06” manual (PDF file available on the ServerBooks CD) – “TX150 S4 Server System Options Guide” (PDF file available on the ServerBooks CD) In the “Options Guide”, the server extension and modification possi- bilities are described.

  • Page 7: Features

    Introduction Features Further sources of information – Technical Manual for the corresponding rack – manual for the monitor – server management manual ServerView – manual for the Remote Test and Diagnostic System RemoteView – documentation for the boards and drives –...
  • Page 8 Features Introduction Zero Channel RAID (ZCR) controller (option) The RAID functionality can optionally be extended by a Zero Channel RAID (ZCR) PCI controller. In addition to RAID levels 0, 1, 10, the ZCR offers the possibility to configure a RAID level 5 or RAID level 50. The ZCR utilizes the onboard Ultra320 LSI 1020A SCSI controller via a special logic on the system board.
  • Page 9 Siemens utilities supports fast BIOS Update. The RemoteView Remote Test and Diagnosis System allows the PRIMERGY TX150 S4 Server to be maintained from remote locations. A Remote Service Board (RSB) can be used in conjunction with RemoteView. Together they facil- itate a remote diagnosis for system analysis, remote configuration, and remote restart, should the operating system or hardware fail.

  • Page 10: Notational Conventions

    Notational Conventions Introduction Notational Conventions The following notational conventions are used in this manual: Italics indicate commands, menu items or software programs. “Quotation marks” indicate names of chapters and terms that should be emphasized. Ê text which follows this symbol describes activities that must be performed in the order shown.
  • Page 11 Introduction Technical Data Compliance Standards Product safety and IEC 60950 / EN 60950 / UL 60950 3rd. Ed., ergonomics CAN/CSA C22.2 No. 60950 3rd. Ed. Electromagnetic Compatibility FCC class A VCCI class A AS/NZS 3548 class A CNS 13438 Emitted interference EN 55022 class A Harmonic current EN 61000-3-2 JEIDA...
  • Page 12 Technical Data Introduction Environmental Conditions Environment class 3K2 EN 60721(IEC 721) section 3-3 Environment class 2K2 EN 60721(IEC 721) section 3-2 Temperature: Operation (3K2) 10 °C ... 35 °C Transport (2K2) -25 °C ... 60 °C Relative humidity 10% ... 85% Condensation during operation must be avoided.

  • Page 13: Installation Steps: Overview

    Installation Steps: Overview In this chapter you will find an overview of the steps necessary to install your server system. Links guide you to sections where you can find more detailed information on the individual steps: Ê At first, please take notice of chapter “Important Notes”...
  • Page 14 Installation Steps: Overview Ê Configure the server and install the desired operating system and applica- tions. To do so, you have the following possibilities: – Remote configuration and installation with ServerStart: With the ServerStart CD provided, you can configure the server and subsequently install the operating system in a convenient manner.

  • Page 15: Important Notes

    Important Notes In this chapter you will find essential information regarding safety when working with your server. Notes on Safety You will also find the following safety instructions in the manual entitled “Safety”. This device complies with the relevant safety regulations for data processing equipment.
  • Page 16 Notes on Safety Important Notes Before setting up CAUTION! During installation and before operating the device, observe the instructions on environmental conditions for your device (see section “Technical Data” on page 10). If the device is brought in from a cold environment, condensation may form both inside and on the outside of the machine.
  • Page 17 Important Notes Notes on Safety CAUTION! Data cables must be adequately shielded to avoid interference. To the LAN wiring the requirements apply in accordance with the standards EN 50173 and EN 50174-1/2. As minimum requirement the use of a protected LAN line of category 5 for 10/100 MBps Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
  • Page 18 Notes on Safety Important Notes CAUTION! The components (e.g. power supply) marked with a warning label (e.g. lightning symbol) may only be opened, removed, or exchanged by authorized, qualified personnel. The hot-plug power supply units are exceptions to this rule. The warranty is invalidated if the device is damaged during the instal- lation or replacement of system expansions.
  • Page 19 Important Notes Notes on Safety Notes on Handling CDs/DVDs and CD/DVD Drives CAUTION! Use only CDs/DVDs in proper condition in the CD/DVD drive of your server to prevent data loss, damage to the device and injuries. Therefore, check each CD/DVD for damage, cracks, breakage etc. before inserting it in the drive.
  • Page 20 Notes on Safety Important Notes When you handle components fitted with ESDs, you must observe the following points under all circumstances: You must always discharge static build up (e.g. by touching a grounded object) before working. Use a grounding cable designed for this purpose to connect yourself to the system unit as you install components.

  • Page 21: Ce Certificate

    Important Notes CE Certificate CE Certificate The shipped version of this device complies with the requirements of the EEC directives 89/336/EEC ”Electromagnetic compatibility“ and 73/23/EEC ”Low voltage directive“. The device therefore qualifies for the CE certificate (CE=Communauté Européenne). FCC Class A Compliance Statement If there is an FCC statement on the device, then: The following statement applies to the products covered in this manual, unless otherwise specified herein.

  • Page 22: Transporting The Server

    Transporting the Server Important Notes Fujitsu Siemens Computers is not responsible for any radio or television inter- ference caused by unauthorized modifications of this equipment or the substi- tution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers. The correction of interferences caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

  • Page 23: Notes On Installing Into The Rack

    Important Notes Notes on Installing Into the Rack Notes on Installing Into the Rack CAUTION! For safety reasons, at least two people are required to install the rack model because of its weight and size. Never lift the server into the rack using the handles on the front panel. When connecting and disconnecting cables, observe the relevant notes in the chapter ”Important notes“...

  • Page 24: Environmental Protection

    Environmental Protection Important Notes Environmental Protection Environmentally friendly product design and development This product has been designed in accordance with standards for ”environmen- tally friendly product design and development“. This means that the designers have taken into account important criteria such as durability, selection of materials and coding, emissions, packaging, the ease with which the product can be dismantled and the extent to which it can be recycled.
  • Page 25 Important Notes Environmental Protection Returning, recycling and disposal The device may not be disposed of with household rubbish. This appliance is labelled in accordance with European Directive 2002/96/EC concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

  • Page 27: Hardware Installation

    Hardware Installation CAUTION! Please note the safety instructions in chapter “Important Notes” on page Do not expose the server to extreme environmental conditions (see section “Technical Data” on page 10). Protect it from dust, moisture, and heat. In order to avoid the formation of condensation inside or on the outside of the hard disk drives the server must be acclimatized in its operating environment for an acclimatization time (table...

  • Page 28: Installation Steps

    Installation Steps Hardware Installation Installation Steps The following installation steps are described in detail in other sections of this chapter: Ê Transporting the server to the desired site. Ê Unpacking the server (see next section “Unpacking the Server”). Ê Setting up the floorstand model (see section “Setting Up the Floorstand Model”...

  • Page 29: Setting Up The Floorstand Model

    Hardware Installation Setting Up the Floorstand Model Setting Up the Floorstand Model Ê Set up the server. When you set up the floorstand model with hot-plug power supply units, the supplied anti-tilt bracket must be fitted to prevent tilting (see section “Mounting the Anti-tilt Bracket”...

  • Page 30: Mounting The Anti-Tilt Bracket

    Setting Up the Floorstand Model Hardware Installation 4.3.1 Mounting the Anti-tilt Bracket When you set up the floorstand model with hot-plug power supply units the supplied anti-tilt bracket must be fitted to prevent tilting. Figure 3: Mounting the anti-tilt bracket Ê...

  • Page 31: Installing/Removing The Server Into/From The Rack

    Hardware Installation Installing/Removing the Server into/from the Rack Figure 4: Fastening the anti-tilt bracket Ê Fasten the anti-tilt bracket using the two knurled screws (1). Installing/Removing the Server into/from the Rack CAUTION! Please observe the safety precautions and references to rack instal- lation in chapter “Important Notes”...
  • Page 32 The rack systems of the Fujitsu Siemens Computers GmbH (PRIMECENTER Rack; DataCenter Rack and 19-Inch (Classic) Rack) support fully the instal- lation of the PRIMERGY server systems. The installation into the at present usual rack systems of different foreign manufacturers (3rd-Party Rack) is supported to large part.
  • Page 33 19-inch installation level area for cable routing (cable area depth) and ventilation area for front panel and ventilation right and left area for support systems PRIMERGY installation depth front left support upright front right support upright rear left support upright rear right support upright –...
  • Page 34 Installing/Removing the Server into/from the Rack Hardware Installation – Power supply. For the installation in 3rd-Party Racks it is to be made certain that appro- priate socket strips are present. Figure 5: Mechanical conditions U41616-J-Z156-1-76...

  • Page 35: Mounting Into The Primecenter/Datacenter Rack

    Hardware Installation Installing/Removing the Server into/from the Rack 4.4.1 Mounting into the PRIMECENTER/DataCenter Rack For mounting the server in the PRIMECENTER Rack the following parts are necessary: – support bracket – two vario rails and two telescopic rails General information is provided in the Technical Manual for the respective rack (see also “Related Publications”...
  • Page 36 Installing/Removing the Server into/from the Rack Hardware Installation Ê Place the support bracket at the appropriate height on the left rear support upright by inserting the positioning nub (1 in figure 7) in the corresponding hole of the support upright. Figure 7: Mounting the support bracket Ê...
  • Page 37 Hardware Installation Installing/Removing the Server into/from the Rack Figure 8: Mounting the telescopic rails into the rack Ê Position (1) the left rail onto the support bracket (b) by inserting the small horizontal lead (3) in the corresponding hole. Ê Press the rail together, and position it onto the frontal support upright, and release it again.

  • Page 38: Mounting Into The Classic Rack

    Installing/Removing the Server into/from the Rack Hardware Installation 4.4.2 Mounting into the Classic Rack For mounting the server in the Classic (19-inch) Rack the following parts are necessary: – two Classic Rack carrier rails – two telescopic rails – articulated cable carrier –...
  • Page 39 Hardware Installation Installing/Removing the Server into/from the Rack Ê Using the mounting aid (stencil) mark the position of the attachment points for the rails and for the server (front panel) on the support uprights (five height units). Refer to the information on the mounting aid. Ê...
  • Page 40 Installing/Removing the Server into/from the Rack Hardware Installation Figure 11: Mounting the rail into the Classic Rack Ê Using the supplied Allen key (No. 5) secure the two telescopic rails with two screws M5 each in the rack at the right and left support uprights. Please note that the guide nubs of the telescopic rails next to the spring nuts must fit into the holes in the support uprights.
  • Page 41 Hardware Installation Installing/Removing the Server into/from the Rack Figure 12: Mounting the articulated cable carrier Ê Fix the articulated cable carrier with two mounting screws on the rear right support upright. Figure 13: Routing the cables on the articulated cable carrier Ê...
  • Page 42 Installing/Removing the Server into/from the Rack Hardware Installation Securing the cables to the articulated cable carrier ensures that, if the server is pulled out the articulated cable carrier extends themselves. The server can be pulled out so later without further preparations (see figure 14).
  • Page 43 Hardware Installation Installing/Removing the Server into/from the Rack Routing the Fibre Channel Optical Waveguide Cable The protective hose (length approx. 1m) supplied with the mounting kit has a separable design. Figure 15: Mounting the protective hose Ê Separate the outside protective sheath (1) from the inside sheath. Ê...

  • Page 44: Mounting Into 3Rd-Party Racks

    Installing/Removing the Server into/from the Rack Hardware Installation Figure 16: Routing the fibre channel optical waveguide cable with protective hose Ê Route the fibre channel optical waveguide cable on the articulated cable carrier as shown in the figure and secure them with cable ties (1). CAUTION! Please make sure that the so protected fibre channel optical waveguide cable is routed in such a way on the articulated cable carrier that in the...

  • Page 45: Installing The Server

    Hardware Installation Installing/Removing the Server into/from the Rack Sometimes a number of parts of the delivered mounting kit cannot be used because original parts of the 3rd-Party Rack are to be used. Ê Mount the prepared rails as described in section “Mounting into the PRIME- CENTER/DataCenter Rack”...
  • Page 46 Installing/Removing the Server into/from the Rack Hardware Installation # > " Figure 18: Installing the server Ê Lift the server onto the two projecting telescopic rails (1). CAUTION! Never lift or transport the server using the handles on the front panel. Ê...
  • Page 47 Hardware Installation Installing/Removing the Server into/from the Rack Figure 19: Fastening the server Ê Place the cage nuts for fastening the front panel in the corresponding holes of the front support uprights and fasten the server using four knurled screws. Ê...

  • Page 48: Connecting Devices To The Server

    Connecting Devices to the Server Hardware Installation Connecting Devices to the Server The ports for external devices are on the rear of the server. Which additional ports are available on your server depends on the PCI boards installed. For more information, please refer to the “Options Guide” (see “Related Publica- tions”...

  • Page 49: Connecting The Server To The Line Voltage

    Hardware Installation Connecting the Server to the Line Voltage Figure 21: Rack model: ports Some of the devices that you connect require special driver software (see the documentation for the connected device). Ê Connect the data cables to the server and peripherals. You can find an additional USB port on the front of the server (see figure 25 on page...
  • Page 50 Connecting the Server to the Line Voltage Hardware Installation Figure 22: Connecting the server to the line voltage Ê Connect the insulated connector of the power cable to power supply unit of the server (1). Ê Connect the power plug to a grounded mains outlet (2) of the in-house mains and/or into the mains socket strip of the rack (see Technical Manual of the rack).

  • Page 51: Hints: Connecting/Disconnecting Cables

    Hardware Installation Hints: Connecting/Disconnecting Cables Hints: Connecting/Disconnecting Cables CAUTION! Be sure to read the documentation for the peripheral devices before connecting them. Do not connect or disconnect data cables during a thunderstorm. When removing a cable, always hold it by the plug. Connect and disconnect the cables in the order described below.

  • Page 53: Preparation For Use And Operation

    Preparation for Use and Operation CAUTION! Please note the safety instructions in chapter “Important Notes” on page Accessing the Drives (Floorstand Model) Enabling access to the accessible drives Figure 23: Accessing the accessible drives Ê Slide the drive cover downwards (1). U41616-J-Z156-1-76...
  • Page 54 Accessing the Drives Preparation for use and operation Enabling access to the HDD modules Figure 24: Accessing the HDD modules Ê Slide up the drive cover as far as possible (1). Ê Remove the hard disk drive cover (2 + 3). Remount the hard disk cover in the reverse order.

  • Page 55: Operating And Indicator Elements

    Preparation for use and operation Operating and Indicator Elements Operating and Indicator Elements 5.2.1 The Front Figure 25: The front ON/OFF button Identification LED (= ID LED) Power-on indicator USB port Drive active indicator Hard disk drive control indicators (figure Global Error indicator Floppy disk drive access indicator NMI button...
  • Page 56 Operating and Indicator Elements Preparation for use and operation Operating elements Key lock To prevent access to the drives, the server can be locked. ON/OFF button When the system is switched OFF, it can be switched ON by pressing the ON/OFF button. When the system is operating, pressing the ON/OFF button will switch OFF the system (standby).
  • Page 57 Preparation for use and operation Operating and Indicator Elements Hard disk drive active indicator (green) An internal hard disk drive (HDD) is being accessed. Global Error indicator (orange) Does not light when the system is ok. No service incident or critical event has occurred.
  • Page 58 Operating and Indicator Elements Preparation for use and operation Hard disk drive control indicator Figure 26: HDD Module: indicators HDD BUSY green – lights: HDD in active phase – does not light: HDD inactive HDD FAULT orange – does not light: No HDD Error –...

  • Page 59: The Rear

    Preparation for use and operation Operating and Indicator Elements 5.2.2 The Rear Indicators on the Connection Panel rack model floorstand model Figure 27: Connection panel: indicators (floorstand model: left, rack model: right) Global Error indicator (orange) Does not light when the system is ok. No service incident or critical event has occurred.
  • Page 60 Operating and Indicator Elements Preparation for use and operation ID LED (blue) Pressing the ID button lights up the ID LEDs (blue) on the front and on the rear of the server. The two ID LEDs are synchronized. Lights up blue, when the system has been selected by pressing the ID button.
  • Page 61 Preparation for use and operation Operating and Indicator Elements Hot-plug power supply unit indicators Figure 28: Hot-plug power supply unit The three LEDs on the left of the ventilator indicate the operating status of the power supply unit, as can be seen in the following table: power OFF power ON power ON...

  • Page 62: Switching The Server On/Off

    Switching the Server ON/OFF Preparation for use and operation Switching the Server ON/OFF CAUTION! If after switching ON the server there is nothing but flickering stripes on the screen, switch the server OFF immediately (see chapter “Problem Solutions and Tips” on page 69).
  • Page 63 Preparation for use and operation Switching the Server ON/OFF Switching the server OFF (non ACPI-compatible operating systems) Power-on indicator (position 2 on figure 25 on page 55) lights green. Ê Shut down the operating in an orderly manner. The server remains switched ON and the power-on indicator remains green. Ê...

  • Page 64: Configuring The Server

    Configuring the Server Preparation for use and operation Configuring the Server This section contains information about configuring the server and installing the operating system. Make sure that the energy saving functions are disabled in the BIOS Setup during server operation. 5.4.1 Configuring the SCSI RAID controller The server is equipped with an onboard SCSI controller with “Integrated...

  • Page 65: Configuration With Serverstart

    Preparation for use and operation Configuring the Server 5.4.2 Configuration with ServerStart With the ServerStart CD provided, you can configure the server and install the operating system in a convenient manner. The menu-guided configuration includes the server configuration with the SCU and the RAID controller configuration with GAM (Global Array Manager).

  • Page 66: Cleaning The Server

    Cleaning the Server Preparation for use and operation Cleaning the Server CAUTION! Switch the server off, and pull the power plug out of the grounded-contact power socket. Do not clean any interior parts yourself; leave this job to a service technician.

  • Page 67: Property And Data Protection

    Property and Data Protection Mechanical Access Protection The floorstand model is protected against unauthorized opening with the lock. The server is also fitted with an intrusion detection switch which enables the ServerView program to detect and log any removal of the left cover or housing cover and the cover for the HDD modules.

  • Page 69: Problem Solutions And Tips

    Problem Solutions and Tips CAUTION! Observe the safety information in the manual “Safety” and in chapter “Hardware Installation” on page If a problem occurs, try to resolve it as described: – in this chapter, – in the documentation for the attached devices, –...

  • Page 70: The Server Switches Itself Off

    The Server Switches Itself OFF Problem Solutions and Tips The Server Switches Itself OFF Server management has detected an error Ê Check the error list or the ErrorLog file in the ServerView program, and attempt to eliminate the error. The Monitor Remains Dark Monitor is switched OFF Ê...

  • Page 71: Flickering Stripes Across The Monitor

    Problem Solutions and Tips Flickering Stripes Across the Monitor Flickering Stripes Across the Monitor CAUTION! Switch OFF the server immediately. Risk of damaging the server. Monitor does not support the set horizontal frequency Ê Find out which horizontal frequency your monitor supports. You will find the horizontal frequency (also known as line frequency or horizontal deflection frequency) in the documentation for your monitor.

  • Page 72: Floppy Disk Cannot Be Read Or Written Onto

    Floppy Disk Cannot be Read or Written onto Problem Solutions and Tips Mouse controller disabled The mouse controller on the system board must be enabled if you use the supplied mouse. Ê In the BIOS Setup Advanced menu, make sure the parameter Mouse Controller under Peripheral Configuration is set to Enabled or Auto Detect.

  • Page 73: Drives "Dead" At System Boot

    “Installing/Removing a HDD/Dummy Module” on page 80). 7.12 Error Messages on the Monitor The meaning of the error messages is explained in the “BIOS Setup V4.06” manual and in the documentation for the relevant components and programs on the PRIMERGY ServerBooks CD. U41616-J-Z156-1-76...

  • Page 75: Hot-Plug Components

    Hot-plug Components This chapter describes how to handle hot-plug components and/or how to modify your server hardware (e.g. hot-plug power supply units or hot-plug HDD modules). Upgrading or replacing non hot-plug components is described in the “Options Guide” or in the Service Supplement and may only be performed by autorized, qualified staff.

  • Page 76: Replacing The Hot-Plug Power Supply Unit

    Hot-plug Power Supply Units Hot-plug Components 8.1.1 Replacing the Hot-plug Power Supply Unit Figure 29: Unlocking and removing the power supply unit CAUTION! Before replacing a non defective hot-plug power supply unit in a non- redundant configuration (only one power supply unit present) the server must be switched OFF.

  • Page 77: Adding A Hot-Plug Power Supply Unit

    Hot-plug Components Hot-plug Power Supply Units 8.1.2 Adding a Hot-plug Power Supply Unit A second hot-plug power supply unit can be added to achieve redundant power supply. If one power supply unit fails, the second power supply unit ensures unimpaired further operation. The location for an additional power supply unit contains a dummy unit.

  • Page 78: Hot-Plug Hard Disk Drives

    Hot-plug Hard Disk Drives Hot-plug Components Hot-plug Hard Disk Drives Up to four hot-plug hard disk drives can be installed into the PRIMERGY TX150 S4 server. The hard disk drives are built on a carrier which allows defective drives to be replaced or new drives to be added during operation.

  • Page 79: Handling Hdd Modules

    Hot-plug Components Hot-plug Hard Disk Drives 8.2.1 Handling HDD Modules Hard disk drives incorporated in the HDD modules are highly sensitive electro- magnetic devices and must be handled with great care. It is extremely likely that an incorrect handling will lead to a partially and/or total failure of the hard disk drives.

  • Page 80: Installing/Removing A Hdd/Dummy Module

    Hot-plug Hard Disk Drives Hot-plug Components 8.2.2 Installing/Removing a HDD/Dummy Module Removing the dummy module Free slots are provided with a dummy module (an empty carrier) which must be removed before installing an additional HDD module. Figure 30: Removing the dummy module Ê...
  • Page 81 Hot-plug Components Hot-plug Hard Disk Drives Unlocking the HDD module Figure 31: Unlocking the HDD module Ê Release the locking mechanism by pressing the locking button (1). If the HDD modules are provided with a transport lock (1 in figure 32), remove it before you release the locking mechanism.
  • Page 82 Hot-plug Hard Disk Drives Hot-plug Components Installing the HDD module Figure 33: Installing the HDD module Ê Insert the HDD module with the opened handle carefully into the empty slot (1) until it stops. Ê Push the module handle completely in the original position (2) until the locking mechanism engages.
  • Page 83 Hot-plug Components Hot-plug Hard Disk Drives Swapping the HDD module If you want to replace a HDD module during operation, proceed as follows: Ê Pull out the HDD module by a few centimeters. CAUTION! Under no circumstances should you remove a HDD module while the system is in operation, if you are not sure that the hard disk drive is operated by a RAID controller and belongs to a disk array which is operating in RAID level 1 or 5.

  • Page 85: Abbreviations

    Abbreviations Alternating Current ACPI Advanced Configuration and Power Interface ANSI American National Standards Institute ASR&R Automatic Server Reconfiguration and Restart BIOS Basic Input-Output System Baseboard Management Controller Cache Coherency Compact Disk CD-ROM Compact Disk-Read Only Memory Cylinder Head Sector CMOS Complementary Metal Oxide Semiconductor Communications Central Processing Unit...
  • Page 86 Abbreviations DIMM Dual Inline Memory Module Dual Inline Package Direct Memory Access Desktop Management Interface Error Checking and Correcting Extended Capabilities Port EEPROM Electrically Erasable Programmable Read-Only Memory ElectroMagnetic Compatibility Emergency Management Port Enhanced Parallel Port EPROM Erasable Programmable Read-Only Memory ElectroStatic Discharge Federal Communications Commission (USA) Front Panel Controller...
  • Page 87 Abbreviations Front Side Bus Global Array Manager Graphical User Interface Hard Disk Drive Hot-Swap Controller I²C Inter-Integrated Circuit Input/Output ICES Interference-Causing Equipment Standard (Canada) Intelligent Chassis Management Identification Integrated Drive Electronics Integrated Mirroring Enhanced IPMI Intelligent Platform Management Interface Interrupt Request Line Local Area Network U41616-J-Z156-1-76...
  • Page 88 Abbreviations Logical Block Address Liquid Crystal Display Logical Unit Number Low-Voltage Differential SCSI Multi Mode Fibre Manual Retention Latch Non Maskable Interrupt NVRAM Non Volatile Random Access Memory Operating System Promise Array Management Peripheral Component Interconnect Prefailure Detection and Analysing POST Power ON Self Test RAID...
  • Page 89 Abbreviations Read-Only Memory Remote Service Board Real Time Clock RTDS Remote Test- und Diagnose-System SAF-TE SCSI Accessed Fault-Tolerance Enclosures SATA Serial ATA (Advanced Technology Attachment) Single Bit Error Single Connector Attachment SCSI Small Computer System Interface System Configuration Utility Sensor Data Record SDRAM Synchronous Dynamic Random Access Memory System Event Log...
  • Page 90 Abbreviations System Setup Utility SVGA Super Video Graphics Adapter Universal Serial Bus Video Graphics Adapter Wakeup on LAN Zero Channel RAID U41616-J-Z156-1-76...

  • Page 91: Related Publications

    Related Publications Manuals for PRIMERGY server systems are available as PDF files on the ServerBooks CD. The ServerBooks CD is part of the PRIMERGY ServerView Suite delivered with each server system. The current versions of the required manuals can be downloaded free of charge as PDF files from the Internet.
  • Page 92 User Manual [17] PRIMECENTER Rack Technical Manual [18] DataCenter Rack Technical Manual [19] 19 inch rack Technical Manual [20] PRIMERGY ServerView Suite ServerView S2 Server Management Benutzerhandbuch [21] PRIMERGY ServerView Suite ServerView Server Management Benutzerhandbuch [22] PRIMERGY ServerView Suite RemoteView...

  • Page 93: Index

    Index devices acclimatization time connecting to the server articulated cable carrier disconnecting fixing cables articulated cable guide disposal, of devices ASR&R drive availability "dead" defective indicators BIOS drive active security functions indicator 55, BIOS Update dummy module HDD module DVD drive cable tie 41, indicator cables...
  • Page 94 Index ESD-sensitive devices height units 35, external devices hot-plug connecting power supply unit hot-swap HDD module 78, fault display drifts screen dark ID button system does not boot ID LED FCC statement identification button features identification LED fibre channel optical waveguide cable indicators protective hose CD-ROM...
  • Page 95 Index monitor power supply unit display drifts adding flickering dummy unit no display on screen hot-plug 49, screen dark redundant mounting replacing articulated cable carrier standard mouse power-on indicator no mouse pointer does not light on the screen property protection protective hose fibre channel optical waveguide NMI button 55,...
  • Page 96 Index data protection server management dimensions ServerStart 9, electrical data ServerView environmental conditions supported functions fitting in the rack setting up height units 35, server hot-plug power supply unit spring nut ID button standards ID LED sticker identification button support bracket identification LED switching OFF indicators...
  • Page 97 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 München Germany Corrections Fax: (++49) 700 / 372 00000 e-mail: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on PRIMERGY TX150 S4 Server System U41616-J-Z156-1-76...
  • Page 99 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 München Germany Corrections Fax: (++49) 700 / 372 00000 e-mail: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on PRIMERGY TX150 S4 Server System U41616-J-Z156-1-76...
