Serenity Barrel Sauna

Assembly Instructions

Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional)

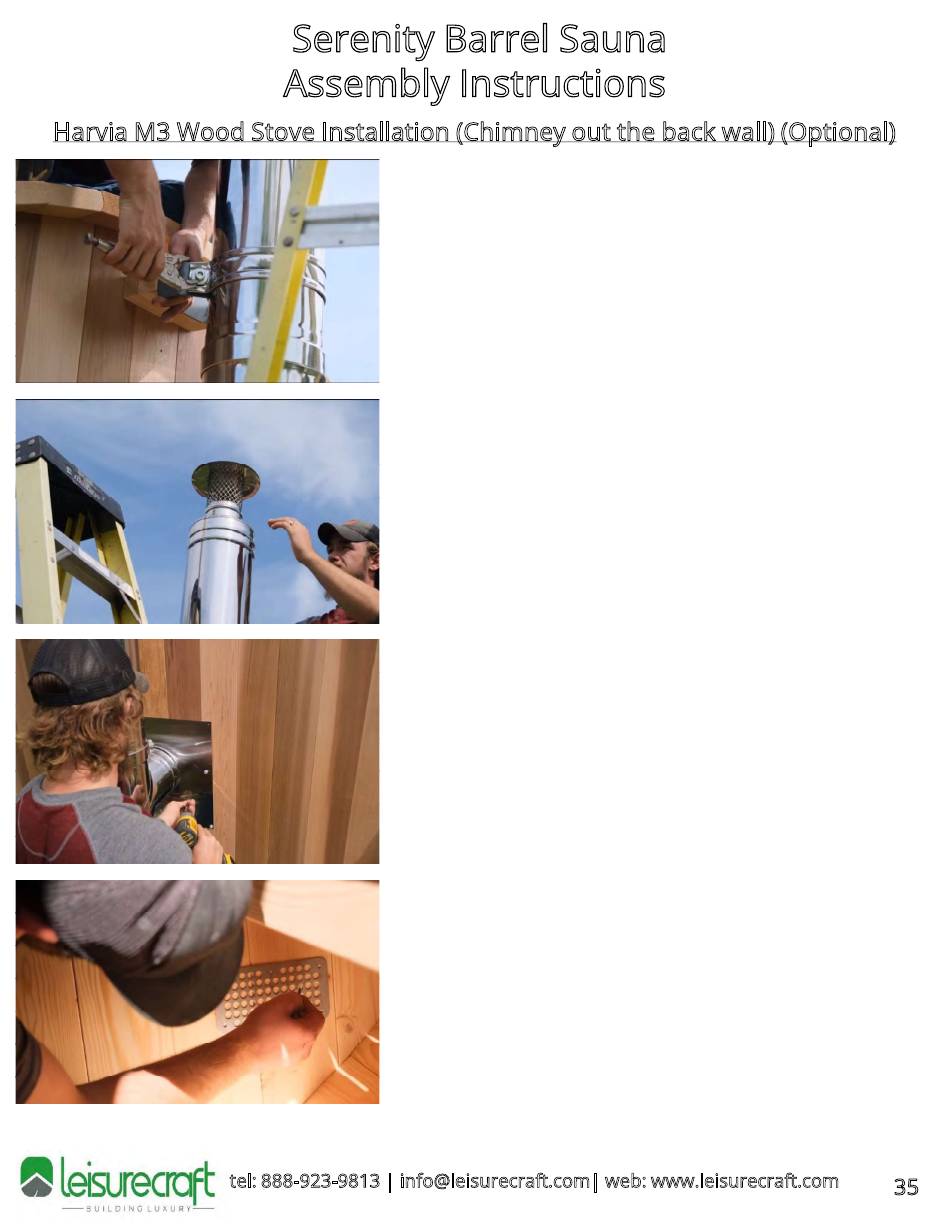

Reassemble the top chimney support bracket.

Overlap the top half of the exterior chimney shield

and secure with provided screws.

Below the bench support on the back wall, mark the

vent hole position.

Manufactured by:

tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com

Table of Contents

Do you have a question about the M3 and is the answer not in the manual?

Page 1 Serenity Barrel Sauna Assembly Instructions Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional) Reassemble the top chimney support bracket. Install the cap on the top of the assembled chimney. Install the bottom half of the exterior chimney shield.
Page 2 Serenity Barrel Sauna Assembly Instructions Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional) Assemble together the remaining chimney pieces. Attach the support strap around the 2 chimney pipes and tighten up. out the back of the sauna.
Page 3 Serenity Barrel Sauna Assembly Instructions Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional) Bring in the rear wall heat shield and place it behind the stove. sauna and through the rear wall heat shield on the inside of sauna and into the back of stove.
Page 4 Serenity Barrel Sauna Assembly Instructions Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional) (56mm) from the floor up. This will be the center of your hole for the chimney to go out. Cut out the circle with a jigsaw.
Page 5 Serenity Barrel Sauna Assembly Instructions Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional) Remove all protective film from stainless steel parts and the plastic wrap from stove pipe pieces before installation. Fasten the stove handle onto the stove door With the screws provided.
