Mechanical Assembly; Microphone Capsules - Lectrosonics DHu Quick Start Manual

Mechanical Assembly

The threaded interface is a 1.25"
diameter opening with 28 threads
per inch and three contact rings

Microphone Capsules:

Lectrosonics offers two types of capsules. The HHC is the standard
capsule and the HHVMC is the Variable Mic Capsule which includes
adjustments for Bass, Midrange and Treble.
HHC Lectrosonics
cardioid electret
Along with these two models from Lectrosonics, a variety of different
capsules with a common thread and electrical interface are available
from the major microphone manufacturers.
2

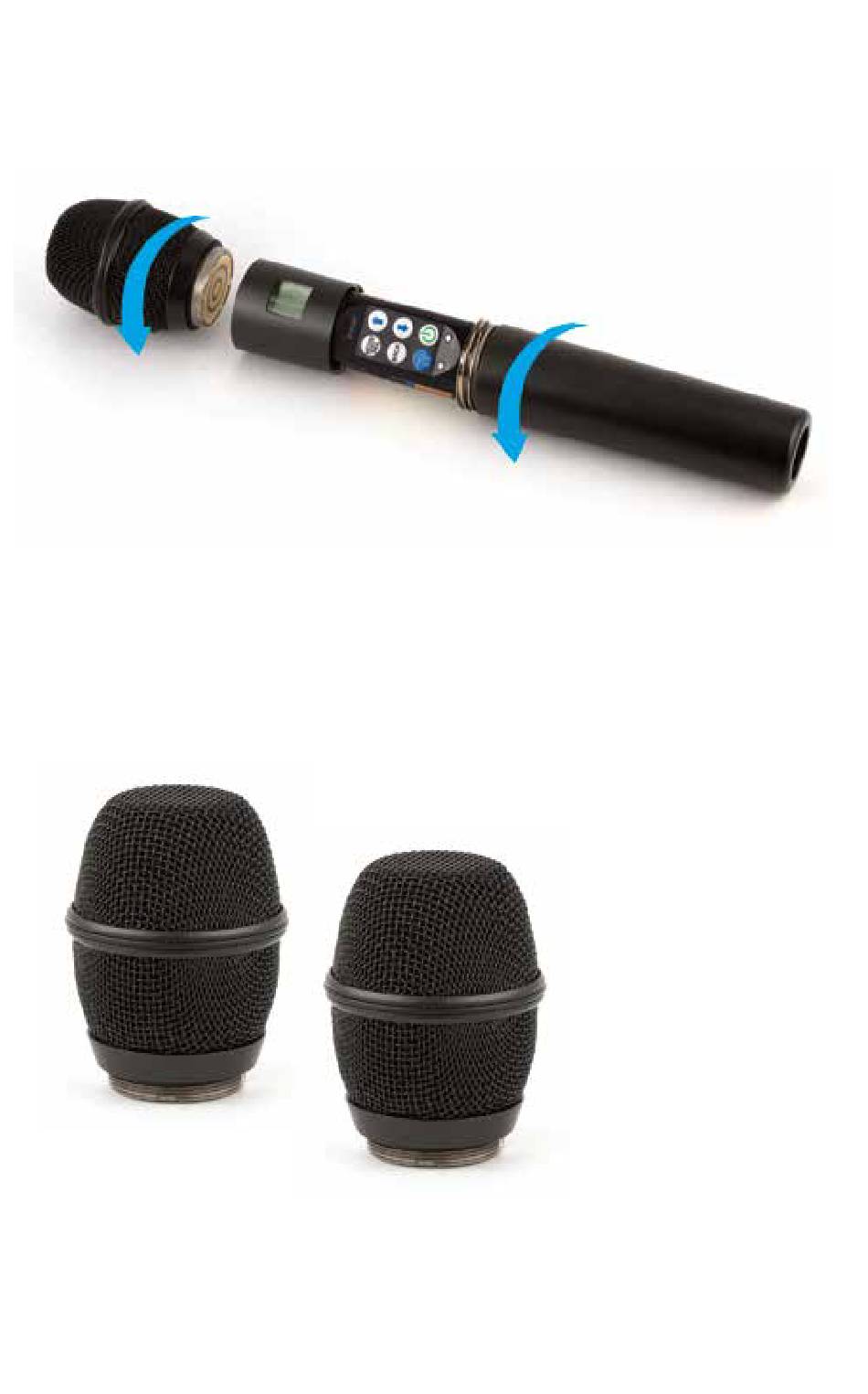

A mic capsule is
threaded onto the body
of the transmitter in the
direction shown.
Do not overtighten it.
HHVMC Lectrosonics cardioid
electret with VariMic preamp
The lower housing opens by rotating
it in the direction shown. After the
threads are disengaged, pull the
housing downward until it engages
the detent that holds it open.
