dji OM 4 Manual

Using this Manual

Legend

Important

Hints and Tips

Before Use

Read the following documents before using DJI OM 4:

1. Disclaimer and Safety Guidelines
2. Quick Start Guide
3. User Manual

It is recommend to watch all tutorial videos on the official DJI website (www.dji.com/om-4/tutorials) or in the DJI Mimo app. Read the disclaimer and safety guidelines and quick start guide before using for the first time. Refer to this user manual for more information.

Download the DJI Mimo App

Scan the QR code or search for "DJI Mimo" on the App Store or Google Play.

The iOS version of DJI Mimo is compatible with iOS v11.0 and later. The Android version of DJI Mimo is compatible with Android v7.0 and later.

Introduction

Equipped with 3-axis stabilization, DJI OM 4 turns your mobile phone into a camera that can deliver stabilized and super-smooth image. The foldable design makes DJI OM 4 convenient to transport and store, while the brand new magnetic connection for the phone means it is even easier to use. Lightweight and ergonomic, DJI OM 4 puts seamlessly smooth video creation at your fingertips. Get creative with features such as ActiveTrack™ 3.0, Hyperlapse, Timelapse, DynamicZoom, Pano, and Story mode that are available through DJI Mimo.

Overview

1. Magnetic Phone Clamp
2. Pan Motor
3. System Status Indicator
4. Joystick
5. Zoom Slider
6. Charging Port (USB-C)
7. Power/M Button
8. Shutter/Record Button
9. Battery Level Indicators
10. Tilt Motor
11. 1/4"-20 UNC Port
12. Lanyard Hole
13. Trigger
14. USB-A Port
15. M3×0.5 Screw Hole
16. Roll Motor
17. Magnetic Ring Holder

Getting Started

Charging

To charge DJI OM 4, connect a USB adapter (not included) to the charging port using the power cable (included). The battery is fully charged when the battery level indicators turn off. Charging time: 2.5 hours (tested in the environment temperature of 25°C when using a 10W charger)
Max runtime: 15 hours (tested with the gimbal balanced and held steadily. This value should be taken as a reference only)

DJI OM 4 can be used as a power bank. Connect your mobile phone to the USB-A port. If DJI OM 4 is powered on, the mobile phone will begin to charge. If DJI OM 4 is powered off, press the M button once to start charging.

Attaching the Phone

1. The provided magnetic phone clamp and magnetic ring holder can be used to mount a phone to DJI OM 4.
   Using the Magnetic Phone Clamp: attach the magnetic phone clamp in the center of the phone.

• Make sure the direction of the magnetic phone clamp is the same as shown and it is in the middle of the phone. Otherwise, the gimbal performance may be affected.
• Adjust the phone clamp and make sure it is as vertical like the phone.
• For optimal performance, use the provided riser pad if using a phone less than 7.5 mm thick or weighing less than 160 g.

Using the Magnetic Ring Holder:

• Only attach the magnetic ring holder to phones that are supported by DJI OM 4. Refer to the DJI OM 4 Mobile Phone Compatibility List at www.dji.com/om-4 for more information.

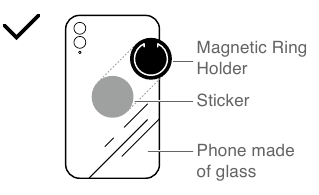

• The sticker must be used when attaching the magnetic ring holder to a mobile phone made of glass. DO NOT attach the magnetic ring holder directly to a mobile phone made of glass.

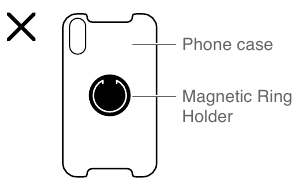

• DO NOT attach the magnetic ring holder to a mobile phone case. Otherwise, the gimbal performance may be affected.
• Make sure no air is trapped between the sticker and the mobile phone. Otherwise, the mobile phone may fall off.


Follow the steps below to attach the magnetic ring holder to the center of the mobile phone.

1. Use the wet wipes to clean the back of the mobile phone and use the dry wipes afterward. Attach the sticker to the center of the back of the mobile phone.

2. Place the alignment guide on the back of the mobile phone. Adjust the position of the alignment guide to locate the center of the mobile phone.

3. Attach the magnetic ring holder to the back of the mobile phone. Make sure it is firmly attached.

4. Remove the alignment guide. Wait 12 hours before attaching the mobile phone to DJI OM 4 with the magnetic ring holder.


2. Align the marks on the phone clamp or ring holder and the mounting plate. Attach the mobile phone to DJI OM 4.

3. Unfold DJI OM 4 and press and hold the M button to power on.


Mount your mobile phone before powering on DJI OM 4. If no mobile phone is detected, DJI OM 4 will vibrate and enter standby mode. To bring it out of standby mode, press any button after mounting the mobile phone.

Using DJI OM 4

After powering on, DJI OM 4 will enter follow mode by default. The gimbal converts joystick movements into smooth pan and tilt transitions, and reduces the impact of natural vibrations.

The mobile phone can by adjusted by hand as well.

Button and Port Functions

M Button

When Powered Off
Press once: check battery level.
Press and hold until it beeps once: power on.

When Powered On
Press once: switch between photo and video mode (this is the default setting and can be changed in DJI Mimo.)
Press twice: switch between landscape and portrait mode.
Press and hold until it beeps once: enter or exit standby mode.
Press and hold until it beeps twice: power off.

Shutter/Record Button

Press once to take a photo or start or stop recording. Press and hold for burst shooting when in photo mode.

Battery Level Indicators

Indicates the battery level of DJI OM 4.

System Status Indicator

Indicates the current status.

Joystick

Move vertically to tilt the mobile phone. Move horizontally to pan the mobile phone. The joystick control direction can be set in DJI Mimo.

Zoom Slider

Move the slider to the T position to enlarge the subject and move the slider to the W position to shrink. Push the slider once to change the zoom once. Push the slider continuously to change the zoom continuously.

Trigger

Press and hold to enter lock mode. In lock mode, the gimbal will not follow the handle movements. Release to exit lock mode.
Press once to start or stop ActiveTrack 3.0.
Press twice to recenter the gimbal. When using ActiveTrack 3.0, the gimbal will recenter to the center of the camera view.
Press three times to switch between front and back cameras.
Press once, and then press and hold to enter Sport mode. Release to exit. In Sport mode, the follow speed of the gimbal increases for capturing quick movements.

Charging Port (USB-C)

Charge DJI OM 4 by connecting a USB adapter to this port.

USB-A Port

The USB-A port can be used to charge mobile phones.

1/4"-20 UNC Port

The 1/4"-20 UNC port can be used to attach a tripod.

M3×0.5 Screw Hole

Used to mount counterweights. Counterweights should be used if a camera lens or microphone is mounted on the mobile phone. Make sure the total weight of these accessories is less than 290 g.

Lanyard Hole

The lanyard hole can be used to attach a wrist strap.

Combination Operation

The Bluetooth connection can be reset if DJI OM 4 cannot be connected or found. Press the M button, shutter button, and trigger simultaneously to reset the Bluetooth connection. The Bluetooth connection is reset successfully when the system status indicator turns from green to yellow. Search DJI OM 4 and reconnect.

DJI OM 4 will be powered off automatically if there is no operation for 10 minutes in standby mode.

Operating Mode

The figures below depict the operation modes when using OM 4 in landscape mode. The same operation modes apply when used in portrait mode.

Upright Mode

Upright mode can be used without any further user input. In this mode, press the M button twice quickly to center the mobile phone.

Side Grip Mode

Rotate DJI OM 4 to the right or left by 90° to go from Upright to Side Grip mode.

Underslung Mode

Hold DJI OM 4 upside down to enter Underslung mode, in which the mobile phone can easily capture images from a lower position.

Low Position Mode

Press and hold the trigger, and then tilt DJI OM 4 forward to enter Low Position mode. The tilt angle is enlarged, making it more suitable to shoot from a low position.

Firmware Update

Use DJI Mimo to update the DJI OM 4 firmware. It takes approximately three minutes to complete an update.

How to Update

Before starting an update, make sure that the battery level is at least 15% (at least two battery level indicators illuminated). Connect DJI OM 4 to your mobile device and launch DJI Mimo. You will be prompted if a new firmware update is available. To start updating, connect the mobile device to the internet and follow the on-screen instructions.

Do not exit DJI Mimo while updating the firmware. Pay attention to on-screen prompts. The system status indicator will blink green and red alternatively and become solid green once the firmware update has completed successfully.

If an update is unsuccessful, restart DJI OM 4 and DJI Mimo, reconnect the Bluetooth, and retry.

Storage

DJI OM 4 is designed to be folded for easier storage and transportation. Make sure to fold DJI OM 4 when it is powered off.

Rotate the pan and tilt axis to align with the marks on the gimbal and fold DJI OM 4. Note that the hole on the pan motor should be matched with the marker on the arm. DJI OM 4 will enter storage mode and can be folded after powering off.

Specifications

This content is subject to change.

Download the latest version from
www.dji.com/om-4/downloads
